Delta RPI M6A

6 Installation
Installation and Operation Manual for RPI M6A M8A M10A inverters V1.0 2016-02-03
54

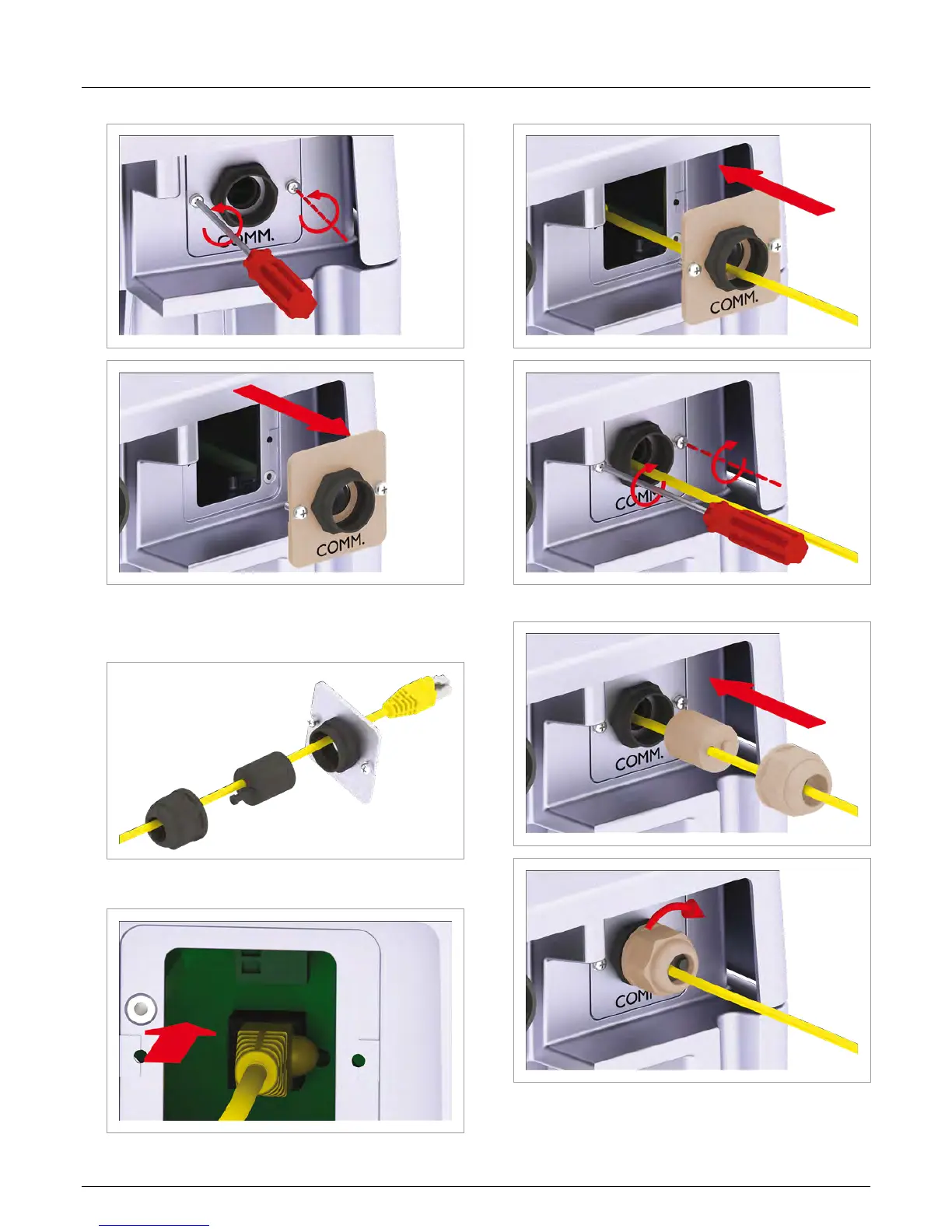

2. Unscrew and pull out the cover.
3. Pull the cable through cable gland and sealing. Do not re-
move the second grommet, unless you use a second cable.
4. Put in the RJ45 plug.
5. Place and screw on the cover.
6. Place the sealing and screw on the cable gland.
