Installation and Operation Manual for RPI M6A M8A M10A inverters V1.0 2016-02-03
6 Installation

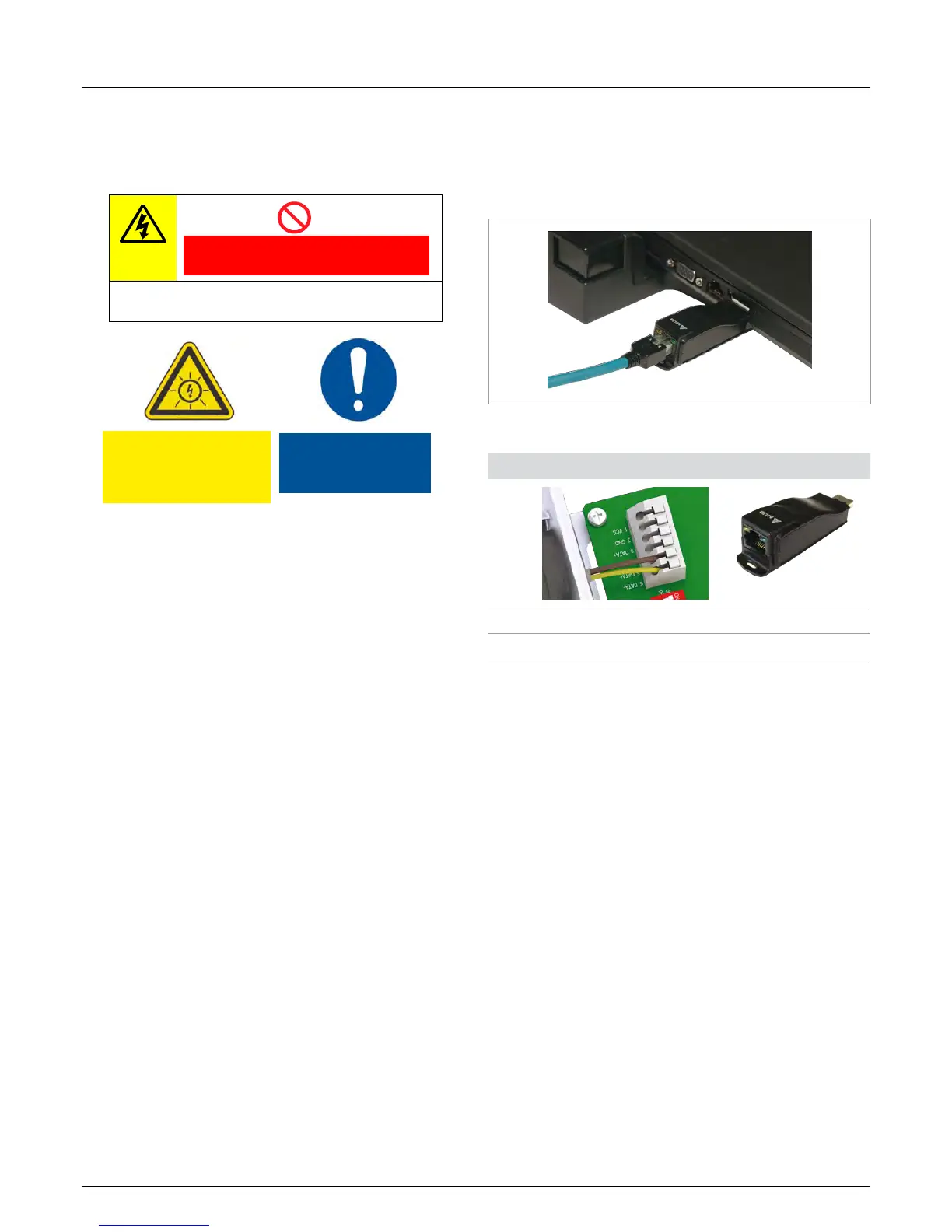

6.10 Putting labels on the inverter
After nishing the installation, you have to put all necessary
labels onto the inverter. Check local regulations about which
labels are needed. See some samples below.
WARNING
Dual Supply
Do not work on this equipment until it is isolated from
both mains and on site generation supplies
Isolate on-site Generating Unit(s) at ………………………………………………….
Isolate mains supply at………………………………………………………
Warning – Only persons authorised by the DNO may remove the main cut out fuse
Warning
Two sources of voltage present
- distribution network
- photovoltaic panels
Isolate both sources before
carrying out any work
6.11 Connecting a PC to RS485
If you want to use a PC with the Delta Service Software to set up
the inverter, you need a USB/RS485 adapter to connect the PC
to the RS485 terminal block of the inverter.
The USB/RS485 adapter is available from Delta.
Connect the pins according to the following table:
Inverter USB/RS485 adapter
1
8
DATA+ Pin 3 or 5 Pin 4
DATA– Pin 4 or 6 Pin 5
