Installation and Operation Manual for RPI M6A M8A M10A inverters V1.0 2016-02-03
6 Installation

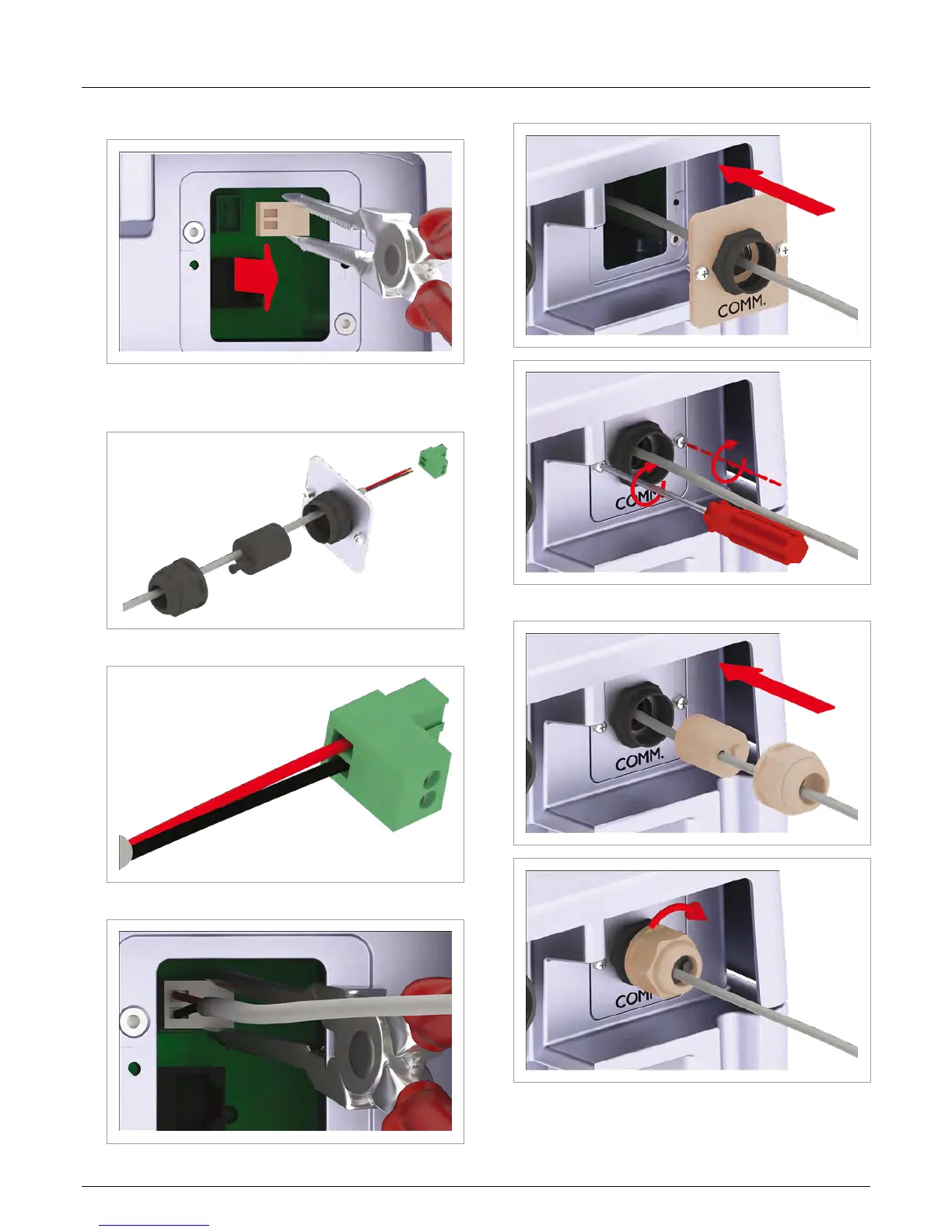

3. Carefully pull out the plug with the dry contacts by using long
nose pliers.
4. Pull the cable through cable gland and sealing. Do not
remove the second grommet, unless you use a second cable
for the digital inputs.
5. Connect the wires to the plug.
6. Carefully put in the wired plug by using long nose pliers.
7. Place and screw on the cover.
8. Place the sealing and screw on the cable gland.
