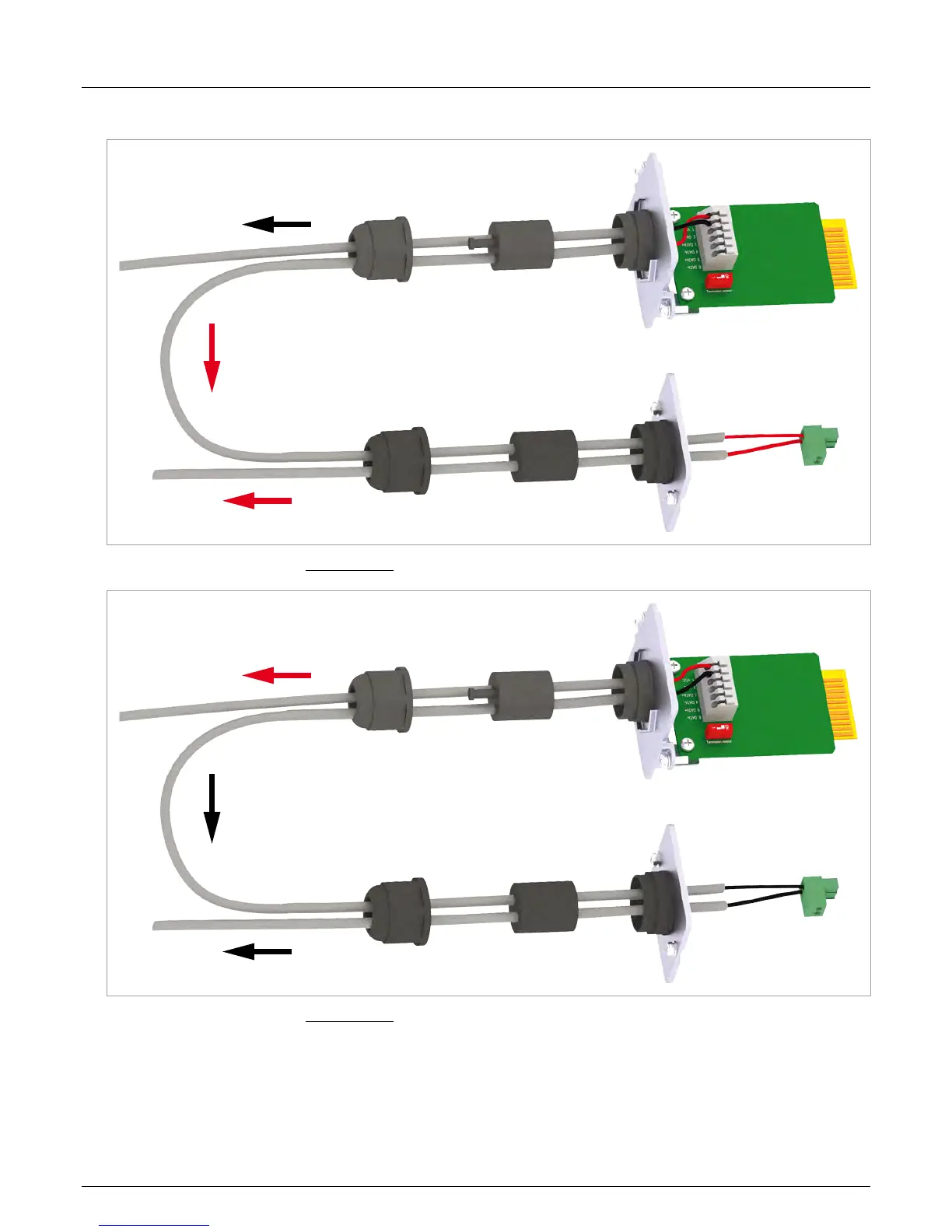

6. Pull the cables through the cable glands and sealings and
wire the terminals according to the variant 1 or 2.
GND to external alarm device
VCC to external alarm device
VCC to dry contacts plug
Wiring according to variant 1, see Fig. 6.34, p. 48
VCC to external alarm device
GND to external alarm device
GND to dry contacts plug
Wiring according to variant 2, see Fig. 6.35, p. 48
