Delta SOLIVIA 10 EU T4 TL - Figure 9.4.: Measurements on the Actual Data Pages

105
EN
Measurements and Messages
B
C
D
E
F
G
B
H
I
J
K
L
A
M
N
O
P
Q
R

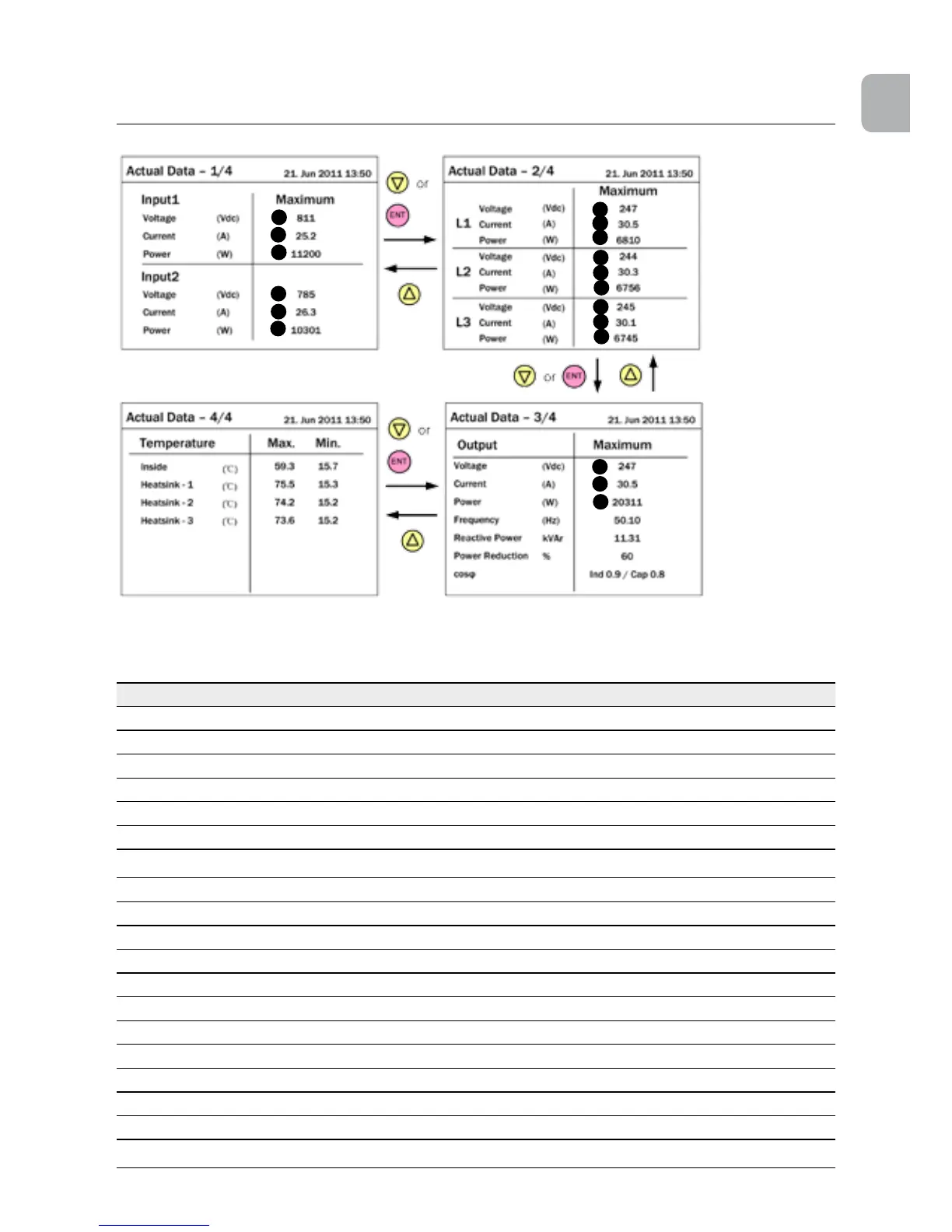

Figure 9.4.: Measurements on the Actual Data Pages
Measurement Description
A Input 1 Volt. maximum The maximum DC input 1 voltage
B Input 1 I maximum The maximum DC input 1 current
C Input 1 P maximum The maximum DC input 1 power
D Input 2 Volt. maximum The maximum DC input 2 voltage
E Input 2 I maximum The maximum DC input 2 current
F Input 2 P maximum The maximum DC input 2 power
G L1 Volt. maximum The maximum AC L1 phase voltage
H L1 I maximum The maximum AC L1 phase current
I L1 P maximum The maximum AC L1 phase power
J L2 Volt maximum The maximum AC L2 phase voltage
K L2 I maximum The maximum AC L2 phase current
L L2 P maximum The maximum AC L2 phase power
M L3 Volt. maximum The maximum AC L3 phase voltage
N L3 I maximum The maximum AC L3 phase current
O L3 P maximum The maximum AC L3 phase power
P Output Volt. maximum The maximum AC 3 phase voltage
Q Output I maximum The maximum AC 3 phase current
R Output P maximum The maximum AC 3 phase power
