Delta SOLIVIA 10 EU T4 TL - Communication Module Connections; Figure 6.14.: SOLIVIA 30 TL Efficiency Curve

60
Wiring the Inverter
0
0.2
0.4 0.80.6 1
350 V 640 V 800 V
96
98
88
90
92
94
86
84
82
80
Efficiency [%]
Power

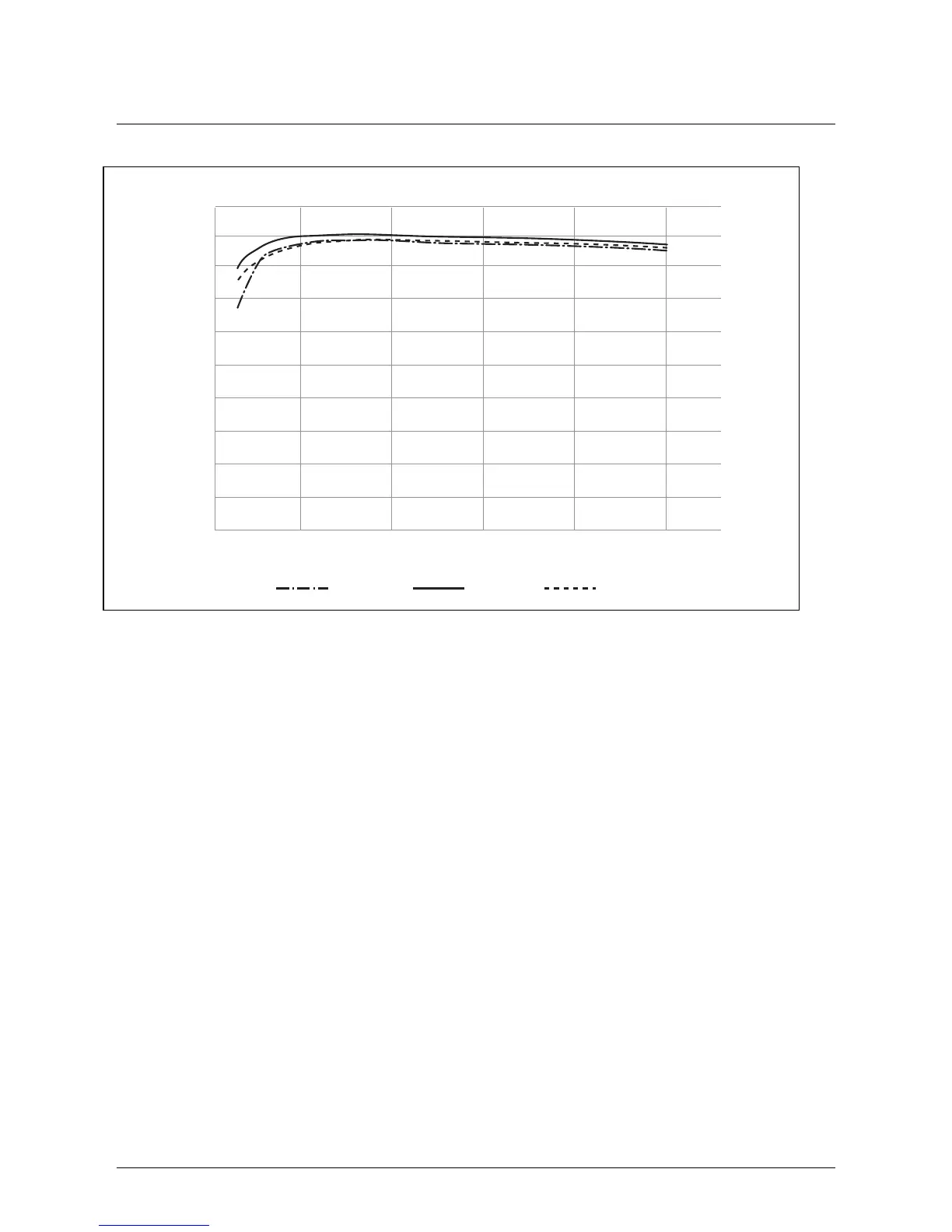

Figure 6.14.: SOLIVIA 30 TL Efciency Curve
6.5 Communication Module Connections
The communication module supports the communication functions with a computer, also provides
1 EPO (Emergency Power Off) and 2 sets of dry contacts. The parts of the communication module
are shown in Figure 6.15. The function of each part is detailed in sections 6.5.1 ... 6.5.3.
