Delta SOLIVIA 10 EU T4 TL - LCD Display and Buttons; Figure 4.6.: LCD Display and Control Panel

35
EN
Product Overview
The chassis has a predrilled hole ➀ to accept a grounding screw as shown. The maximum torque
of the M6 grounding screw is 4.4 Nm. There is a 15 mm diameter unpainted surface around the
center of the ground screw hole that allows for a solid ground connection when installing the
grounding kit.
4.3.1 LCD Display and Buttons
ESC: ESC MENU
DOWN: MOVE DOWN
UP: MOVE UP
ENTER: ENTER MENU OR CONFIRM
LED Indicator (GRN/RED)
LCD Display

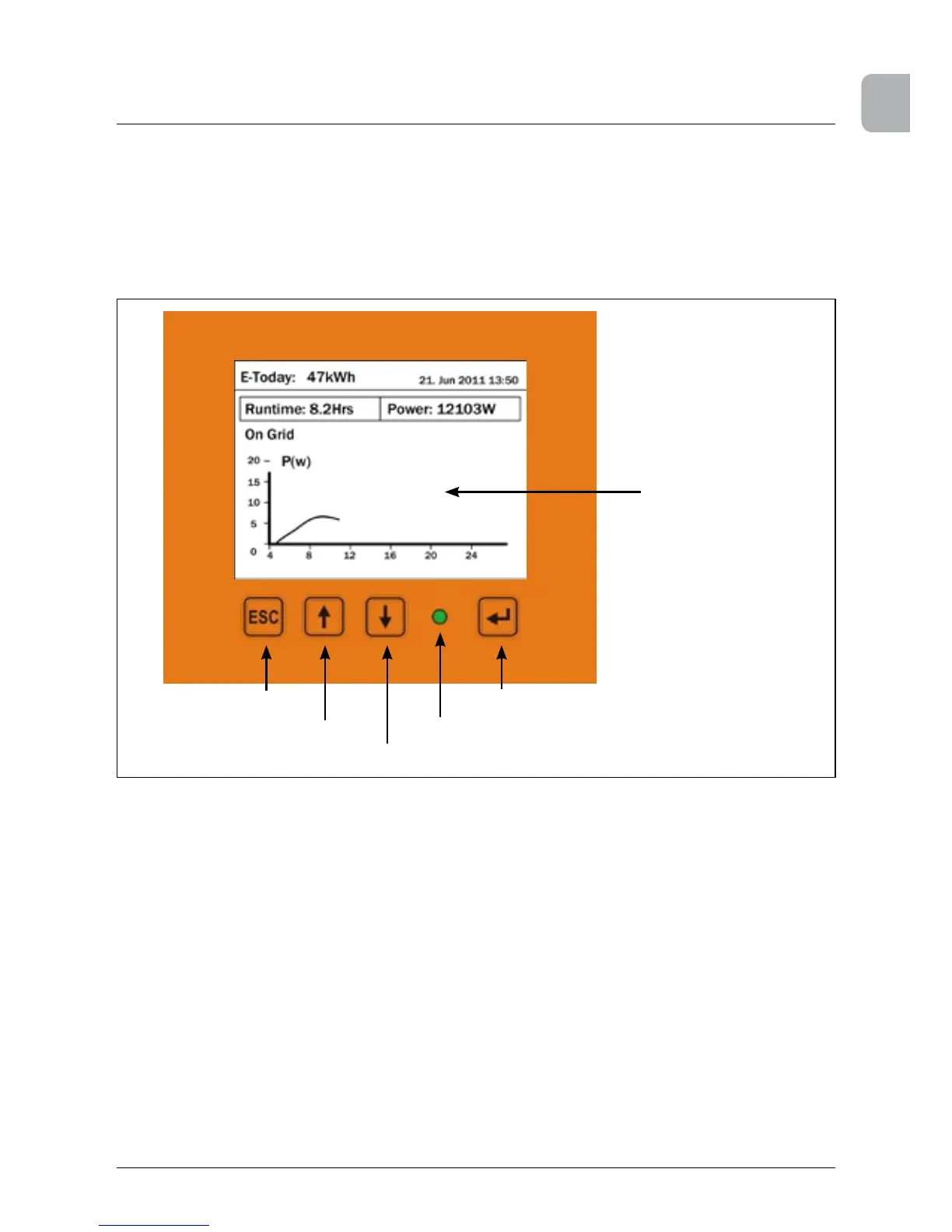

Figure 4.6.: LCD Display and Control Panel
