Technical data
12.4 15 TL and 20 TL Models With Earlier DC Input Panel
Please note that 15 TL and 20 TL inverter models have two different DC input connector congu-
rations, while the models are operationally the same and the DC connectors are the same type.
Please see the gures below for the layout of the DC inputs for 15 TL and 20 TL models produced
before and after September 1, 2012.
DC 1 DC 2

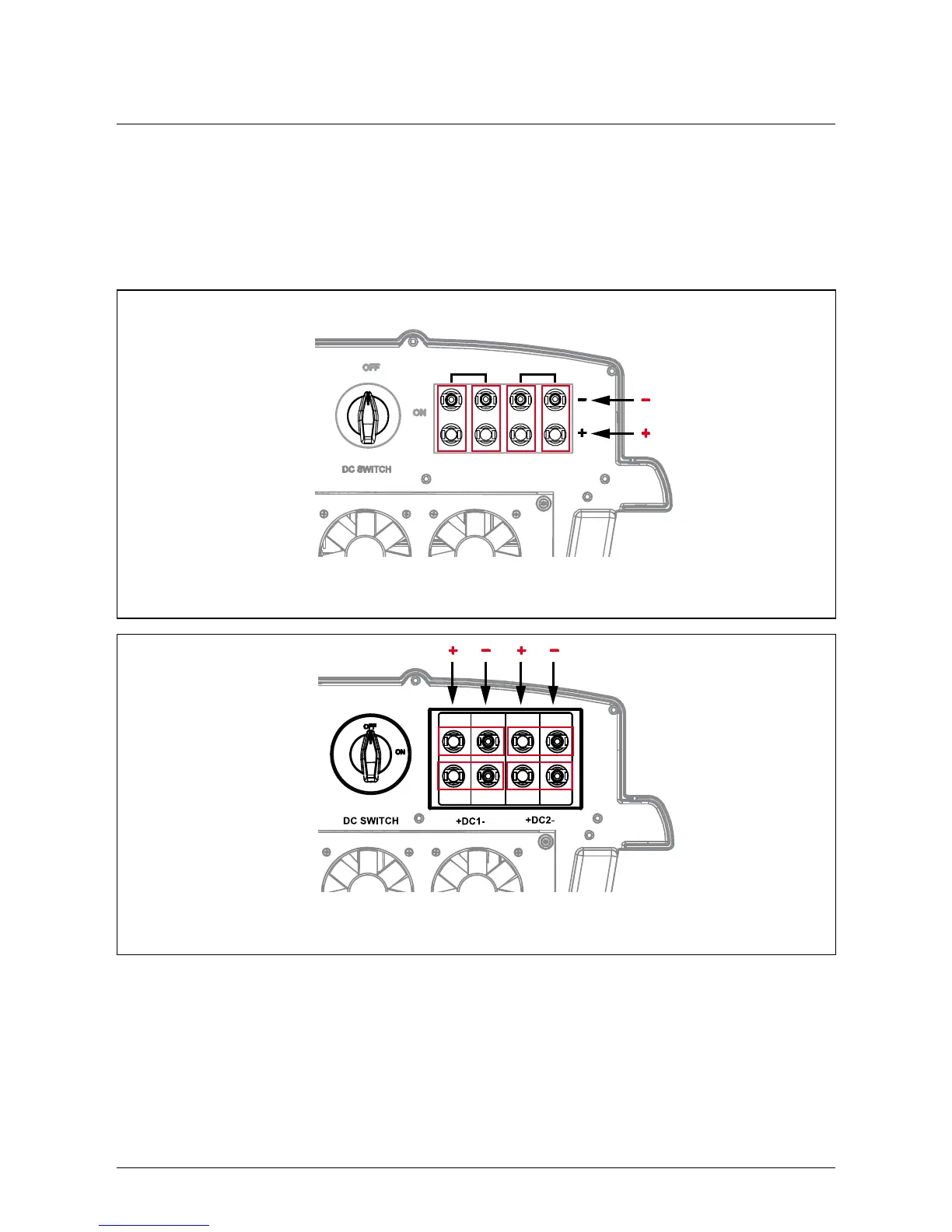

Figure 12.2.: DC Input Panel For Models Before Sept. 1, 2012
Figure 12.3.: DC Input Panel For Models After Sept. 1, 2012
