Delta SOLIVIA 10 EU T4 TL - Ambient Temperature; Figure 5.4.: Proper Installation Gap

43
EN
Installation

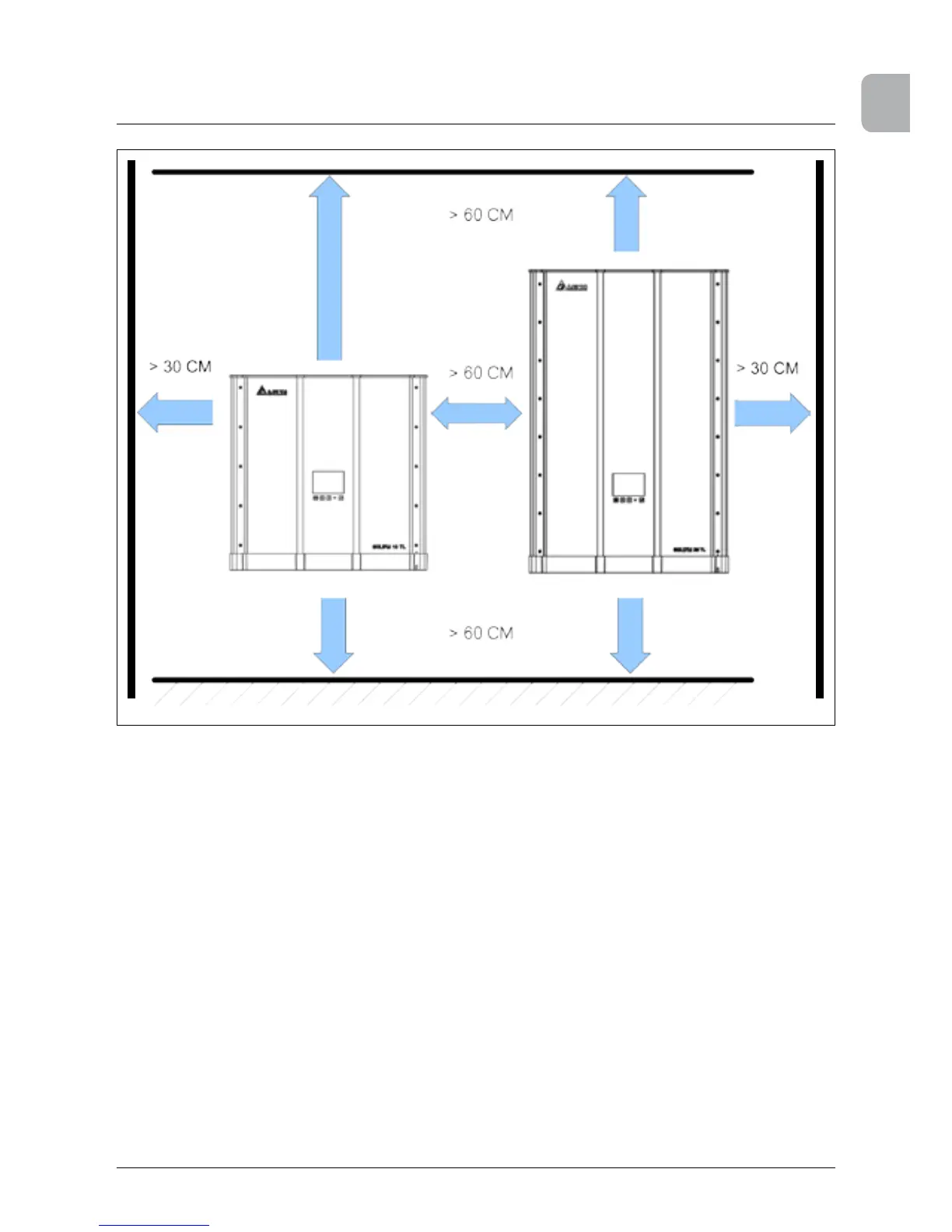

Figure 5.4.: Proper Installation Gap
5.3 Ambient temperature
The solar inverter can be operated in an ambient temperature between -20 °C ... +60 °C. The fol-
lowing diagram illustrates how the power supplied by the solar inverter is reduced automatically in
accordance with the ambient temperature. The device should be installed in a well-ventilated, cool
and dry location.
