Product Overview
4.3.2 Inverter Input/Output Interface
➀ ➁
➂
➃
DC input panel for the 10
TL, 15 TL, and 20 TL has 4
DC inputs. The 30 TL DC
input interface shown
below, provides 6 DC
inputs.
SOLIVIA 30 EUT4TL

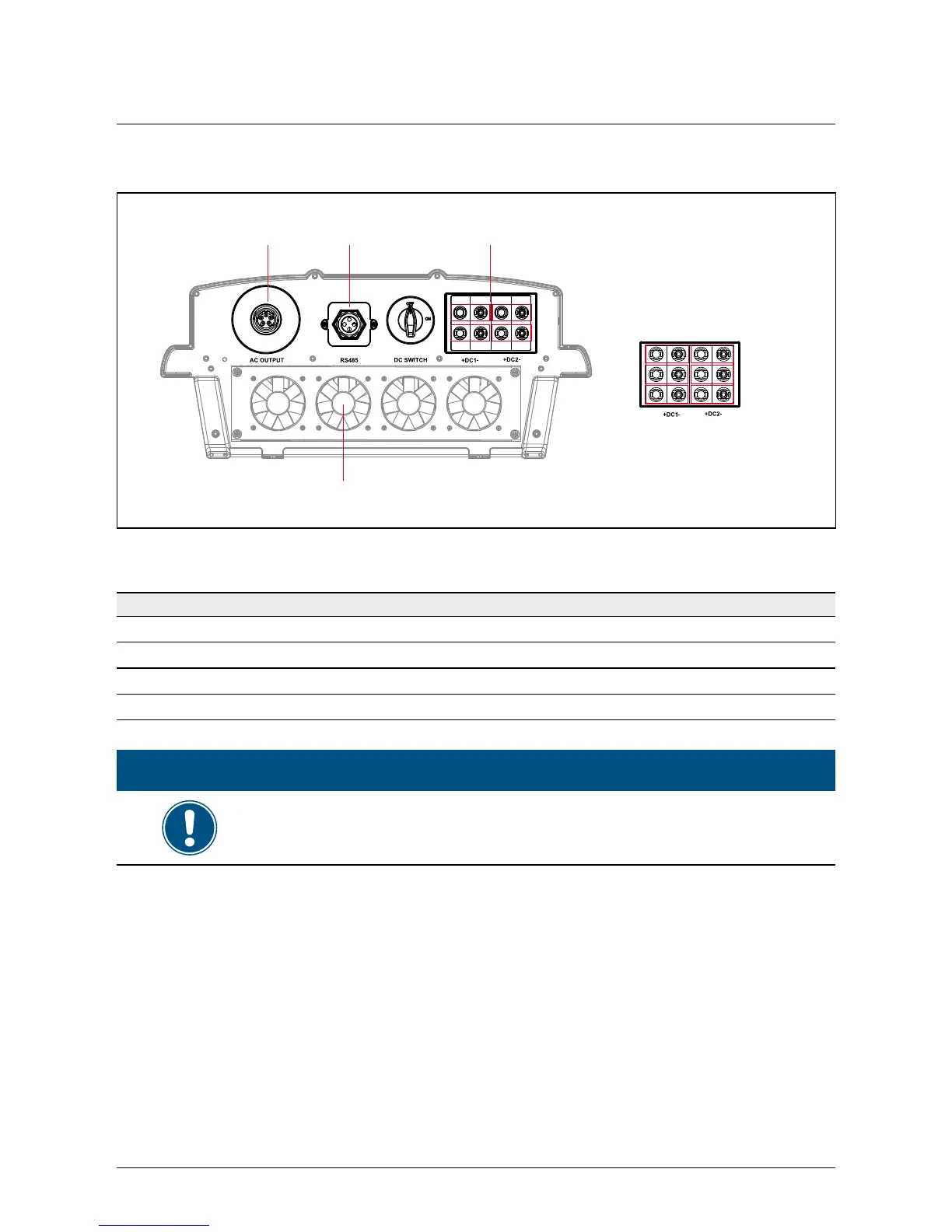

Figure 4.7.: Input/Output Interface
No. Designation Description
➀
AC connector 400 V
AC
for 10 / 15 / 20 TL ; 500 V
AC
for 30 TL
➁
Communication 2 × RS485, 1 × EPO, 2 × Dry contact
➂
DC connector 4 Strings (10 TL / 15 TL / 20 TL), 6 Strings (30 TL)
➃
Fans 4 Fans (10 TL model with only one fan)
NOTE
The fans shown are without the required protective screen for illustrative
purposes. The 15 TL, 20 TL and 30 TL models have 4 fans in the fan tray,
whereas the 10 TL will only have one fan.
