Delta SOLIVIA 10 EU T4 TL - Figure 5.2.: Attaching the Mounting Bracket to the Wall

41
EN
Installation
Wall
Unit: mm
6 pcs. screws
6 pcs. screws
SOLIVIA 10 TL rear view
SOLIVIA 15 TL, 20 TL, 30 TL
rear view
Note: The wall mount bracket will be the same part for the
10 TL / 15 TL / 20 TL / 30 TL.

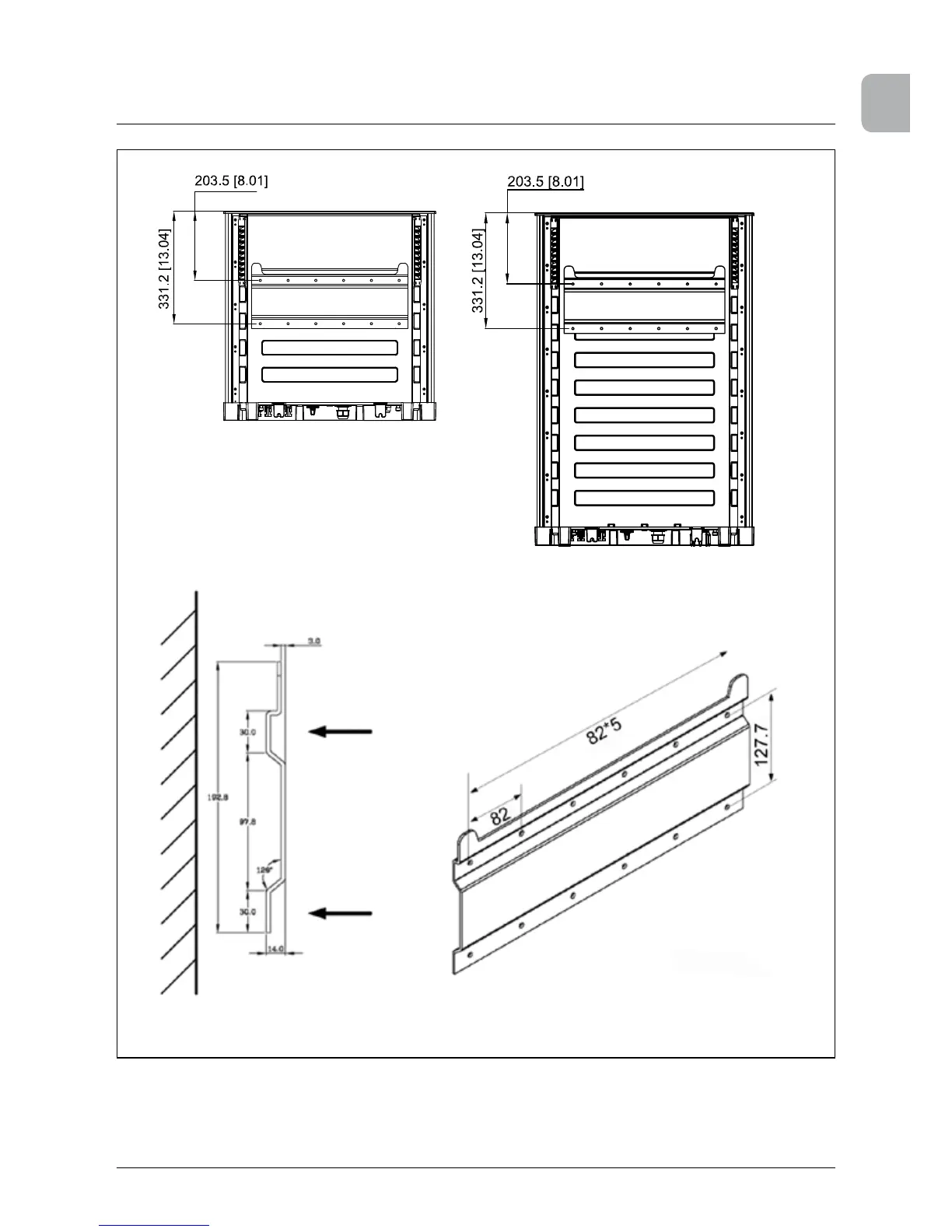

Figure 5.2.: Attaching the mounting bracket to the wall
