Delta VFD-MS300 - LED Indicators; Pin Definitions

VFD-MS300/MH300 EtherNet/IP Communication Card CMM-EIP01
CMM-EIP01 Operation Manual
9

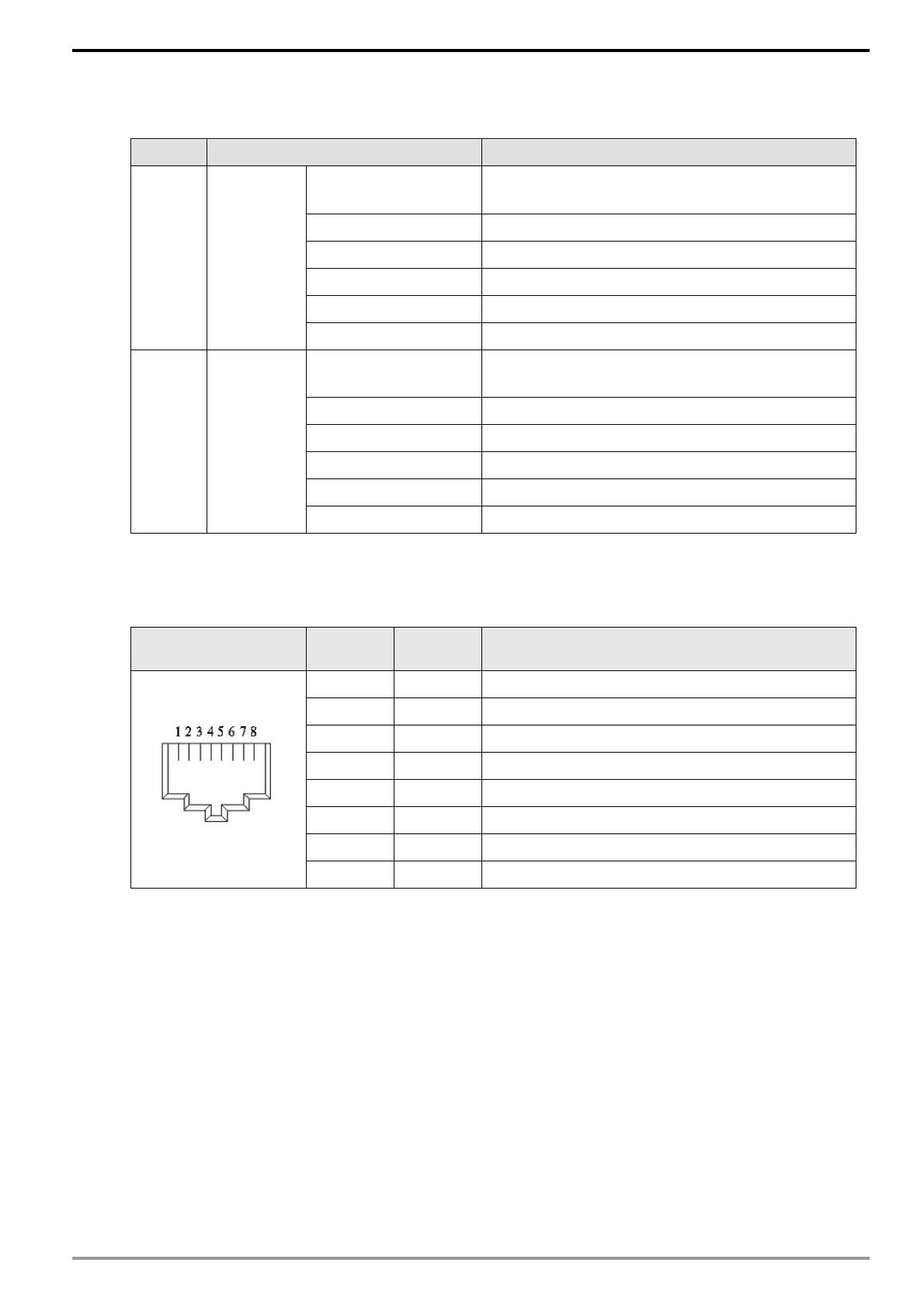

2.3 LED Indicators
Name Indicator status Indication
Power
indicator
Green /
Red LEDs
Flashing red /
green alternately
Product status self-testing
Red LED always on Device has experienced an unrecoverable error
Green light always on Device parameter configuration is complete
Flashing red light A recoverable error has occurred
Flashing green light Device parameters not configured
LED is off No power supply
Link
indicator
Green LED
Flashing red /
green alternately
Network status self-testing
Red LED always on Duplicate IP address
Green LED always on Network connection normal
Flashing red light Communication time out/disconnected / IP changed
Flashing green light Network packets transmitting/receiving
LED is off Not connected to a network
2.4 RJ-45 Pin Definitions
RJ-45 Pinout diagram PIN Definition Description
1 Tx+
Positive pole for data transmission
2 Tx-
Negative pole for data transmission
3 Rx+
Positive pole for receiving data
4 --
N / C
5 --
N / C
6 Rx-
Negative pole for receiving data
7 --
N / C
8 --
N / C
