VFD-MS300/MH300 EtherNet/IP Communication Card CMM-EIP01
CMM-EIP01 Operation Manual
16
3.2 Connecting to the Network
Connect the CMM-EIP01 to the EtherNet hub by using CAT-5e pair twisted cable.
Since the CMM-EIP01 has auto MDI / MDIX function, CAT-5e does not require a jumper
cable.

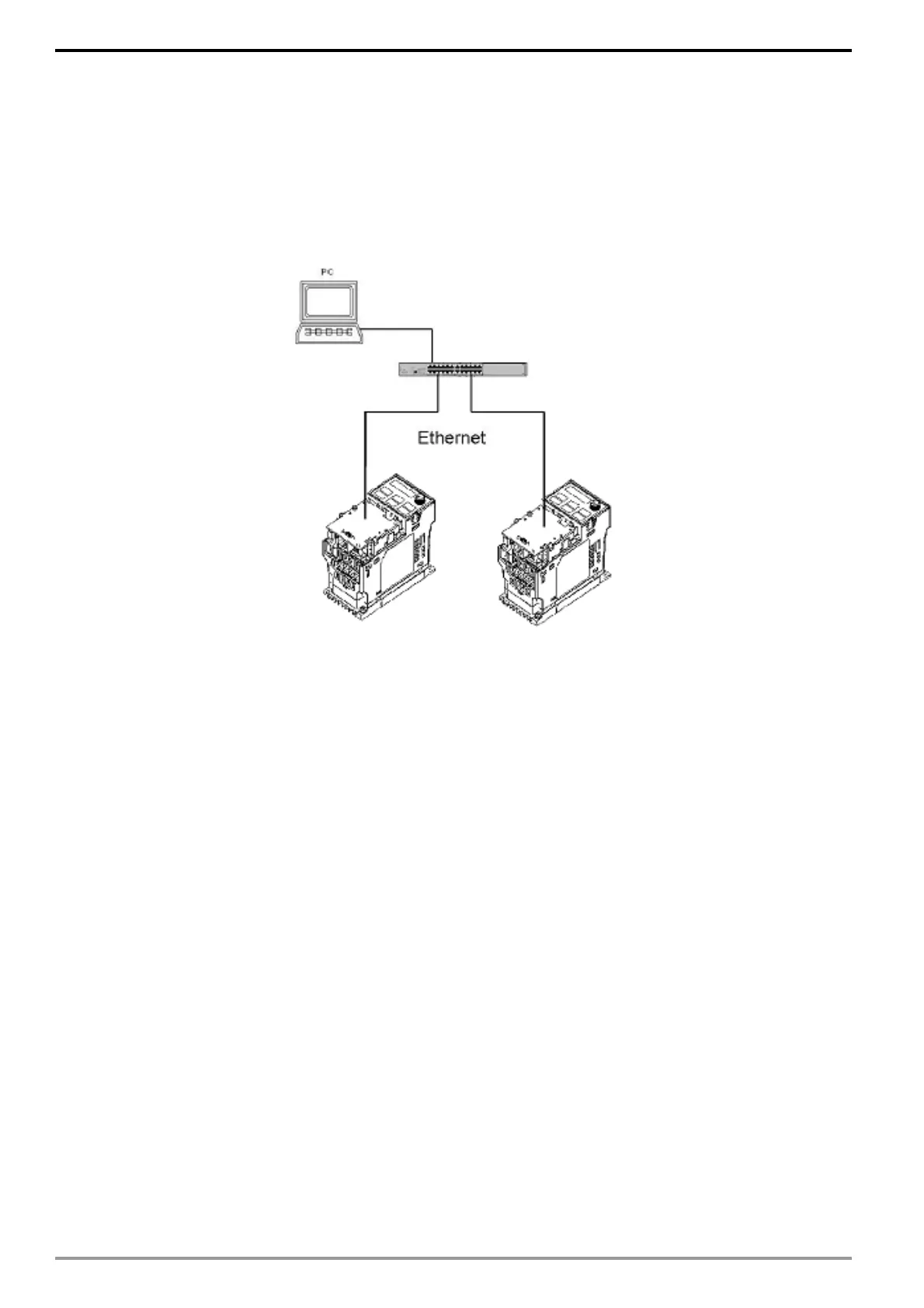

Network connection diagram between the PC and CMM-EIP01:
