Denon AVR-1312 Service Manual

77

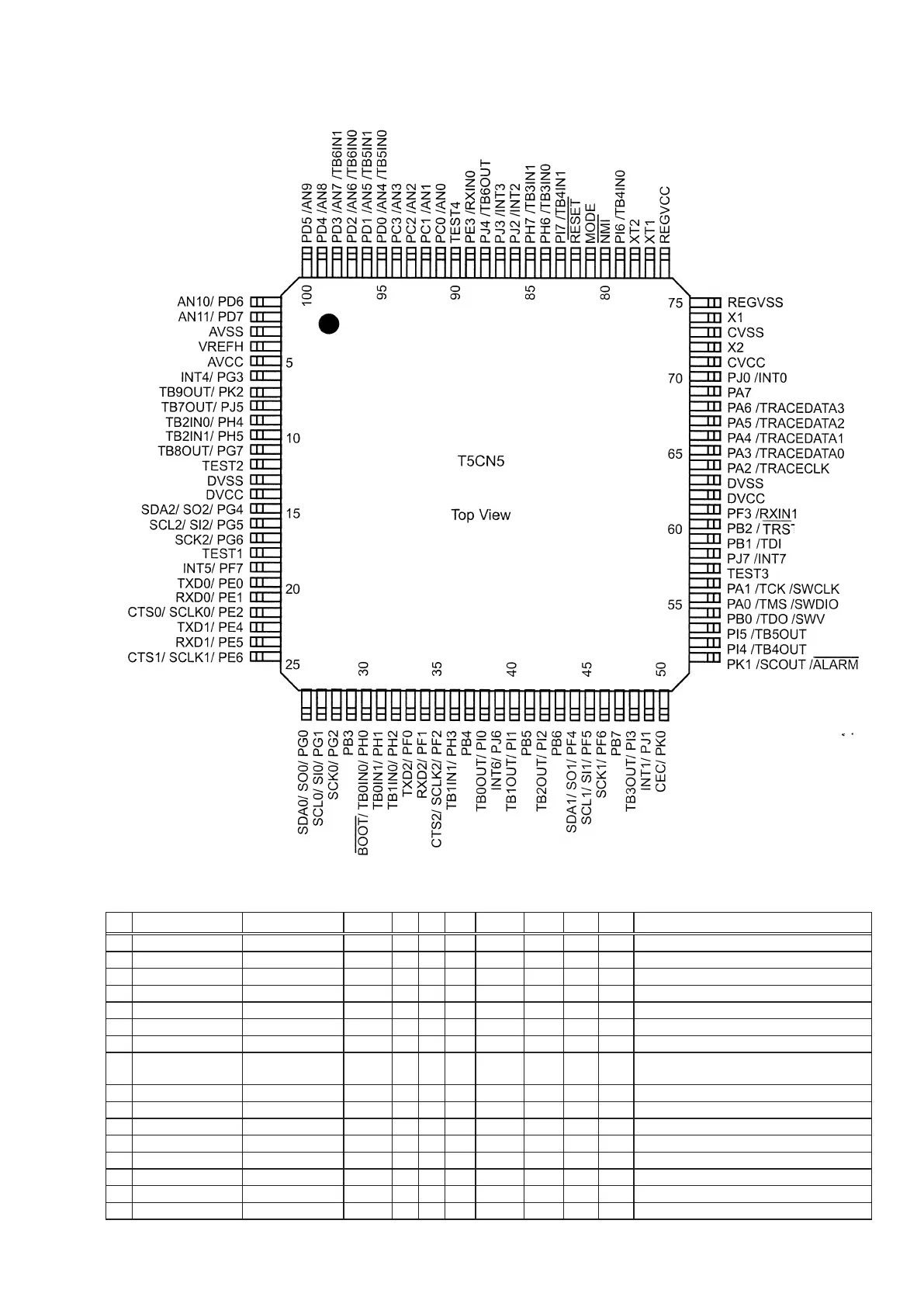

T5CN5 (INPUT : IC91)
T5CN5 Terminal Functions
Pin Pin Name Symbol TOLERANT Nch I/O Type Pullup LvCnv STBY stop Function
1 AN10/PD6 PROTECT - - I - M3VPu - I I Protection detection pin
2 AN11/PD7 HDMIOST_MISI - - I - - - I O/L DATA input pin for HDMI OST
3 AVSS AVSS - - - - - - - - Fixed GND
4 VREFH VREFH - - - - - - - - 3.3V
5 AVCC AVCC - - - - - - - - 3.3V
6 INT4/PG3 POWER_DOWN - - I - M3VPu - I I Power Down detection pin
7 TB9OUT/PK2 FRONT_RLY - - O - - - O/L O/L Front SP RLY control pin
8 TC7OUT/PJ5 SURR_RLY - - O - - - O/L O/L
Surround SP RLY control pin/Center SP RLY
control pin
9 TB2IN0/PH4 LIMIT - - O - - - O/L O/L Current LIMIT
10 TB2IN1/PH5 HP_RLY - - O - - - O/L O/L H/P RLY control pin
11 TB8OUT/PG7 DAC_MUTE - - O - - - O/L O/L DAC Mute control pin
12 TEST2 TEST2 - - - - - - - - OPEN
13 DVSS DVSS - - - - - - - - Fixed GND
14 DVCC DVCC - - - - - - - - 3.3V
15 SDA2/SO2/PG4 POWER_ON - - O - - - O/L O/L Power RELAY control pin
16 SCL2/SI2/PG5 CVBS_SW3 - - O - - - O/L O/L CVBS(Video) SW3 control pin

Denon AVR-1312 Specifications

General

Number of Channels	5.1
HDMI Inputs	4
HDMI Outputs	1
Amplification Type	Discrete
Input Sensitivity	200 mV
Frequency Response	10 Hz - 100 kHz (+1, -3 dB)
Signal-To-Noise Ratio	98 dB
Digital Optical Inputs	2
Coaxial Digital Input	1
Analog Audio Inputs	4
Headphone Jack	Yes
Tuner Presets	56
Dimensions (W x H x D)	434 x 151 x 319 mm
Amplifier Type	Discrete
Tuner Type	AM/FM
Preset Stations	56
Remote Control	Yes
Dolby Technologies	Dolby Digital Plus, Dolby Pro Logic II, Dolby TrueHD
DTS Technologies	DTS-HD Master Audio
Output Power / Channel	75 W (8 Ohms, 20 Hz - 20 kHz, 2 channels driven, THD 0.08%)
Input Impedance	47 kOhms
Audio Inputs	2 Optical, 1 Coaxial, 4 Analog
Power Output	75W per channel (8 ohms, 20Hz-20kHz, 0.08% THD)
