Denon AVR-4308 User Manual


Connections Setup Playback Remote Control Multi-Zone Information Troubleshooting
ENGLISH
Q9
W0W1Q9Q9 Q9
te
i
Q0Q1Q2Q3
Q6
oQ4Q5
q
y urw
W1
Q9W0Q8
Q7
Q8
q RS-232C connector ····································· (22)
w TRIGGER OUT jacks ··································· (22)
e FM/AM antenna terminals
(TUNER ANTENNA) ···································· (20)
r DOCK CONTROL jack ································· (14)
t Speaker terminals (SPEAKERS) ················ (10)
y AC OUTLET ················································· (23)
u AC inlet (AC IN) ··········································· (23)
i DAB antenna terminal
(DTU ANTENNA) ········································· (20)
o Digital audio connectors
(OPTICAL / COAXIAL) ·························· (13, 15)
Q0 WLAN ANTENNA terminal ························· (21)
Q1 ETHERNET connector ·································(21)
Q2 USB port ······················································ (19)
Q3 DENON LINK connector ····························· (17)
Q4 COMPONENT VIDEO connectors ·············· (13)
Q5 HDMI connectors ········································ (12)
Q6 VIDEO / S-VIDEO connectors ···················· (13)
Q7 REMOTE CONTROL jacks··························· (22)
Q8 Analog audio connectors (AUDIO) ············ (13)
Q9 PRE OUT connectors ···························· (18, 22)
W0 EXT. IN connectors ····································· (18)
W1 SIGNAL GND terminal ······························· (14)

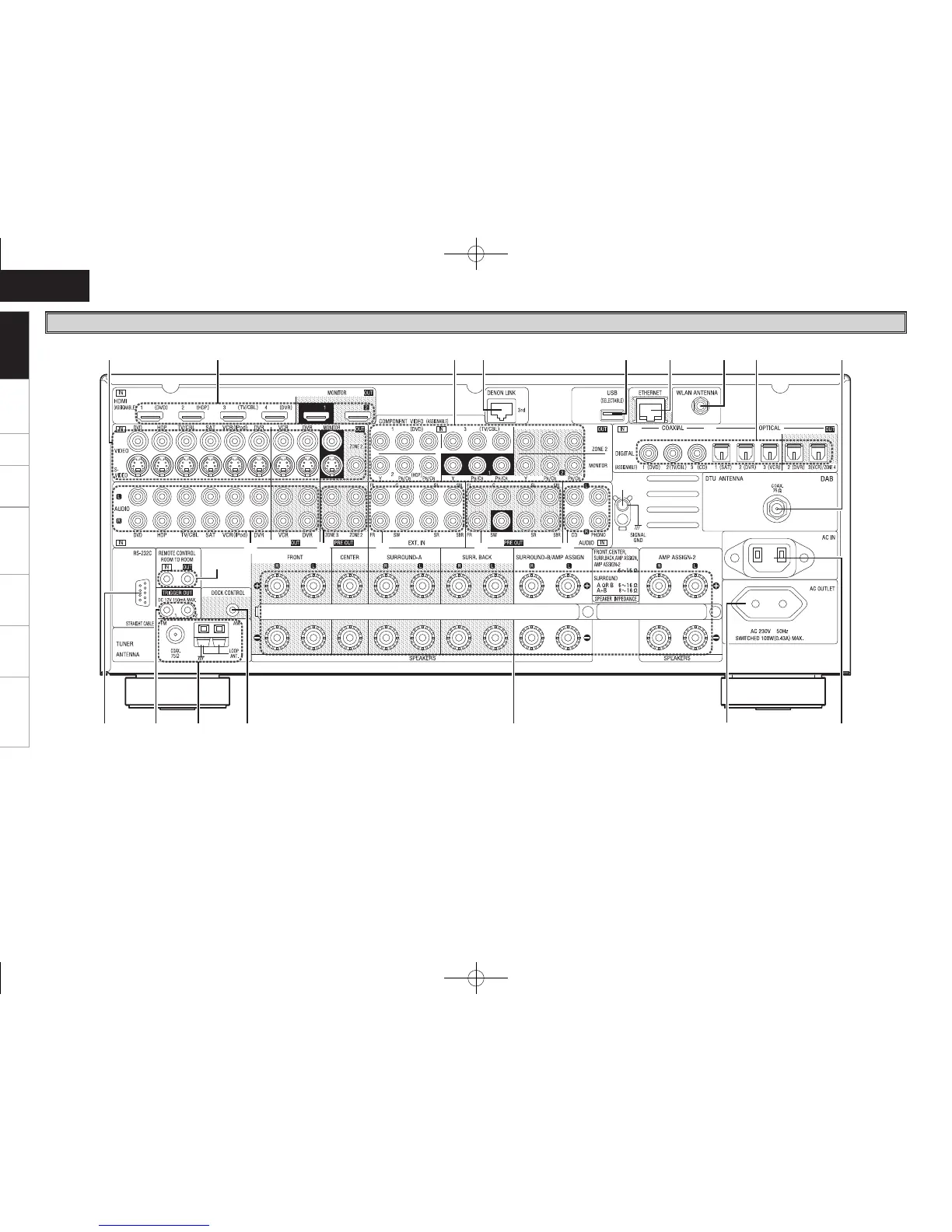

Rear Panel
Getting Started
1.AVR4308E2_ENG_3.indd 6 2007/10/26 11:41:00

Denon AVR-4308 Specifications

General

Number of Channels	7.1
HDMI Inputs	4
HDMI Outputs	2
Networking	Ethernet, Wi-Fi
Multi-room Zones	3
THX Certified	No
Frequency Response	10 Hz - 100 kHz (+1, -3 dB)
Total Harmonic Distortion	0.05%
Input Sensitivity/Impedance	200 mV / 47 kOhms
Signal-to-Noise Ratio	102 dB
HDMI Version	1.3a
Dolby Technologies	Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Pro Logic IIx
DTS Technologies	DTS, DTS-ES, DTS 96/24, DTS-HD Master Audio
Tuner Frequency Range	FM: 87.5 MHz - 108.0 MHz, AM: 522 kHz - 1611 kHz
Audio Inputs/Outputs	Analog, Digital Coaxial, Digital Optical, HDMI
