Denon AVR-4308 User Manual


Getting Started Connections Setup Playback Remote Control Information Troubleshooting
ENGLISH

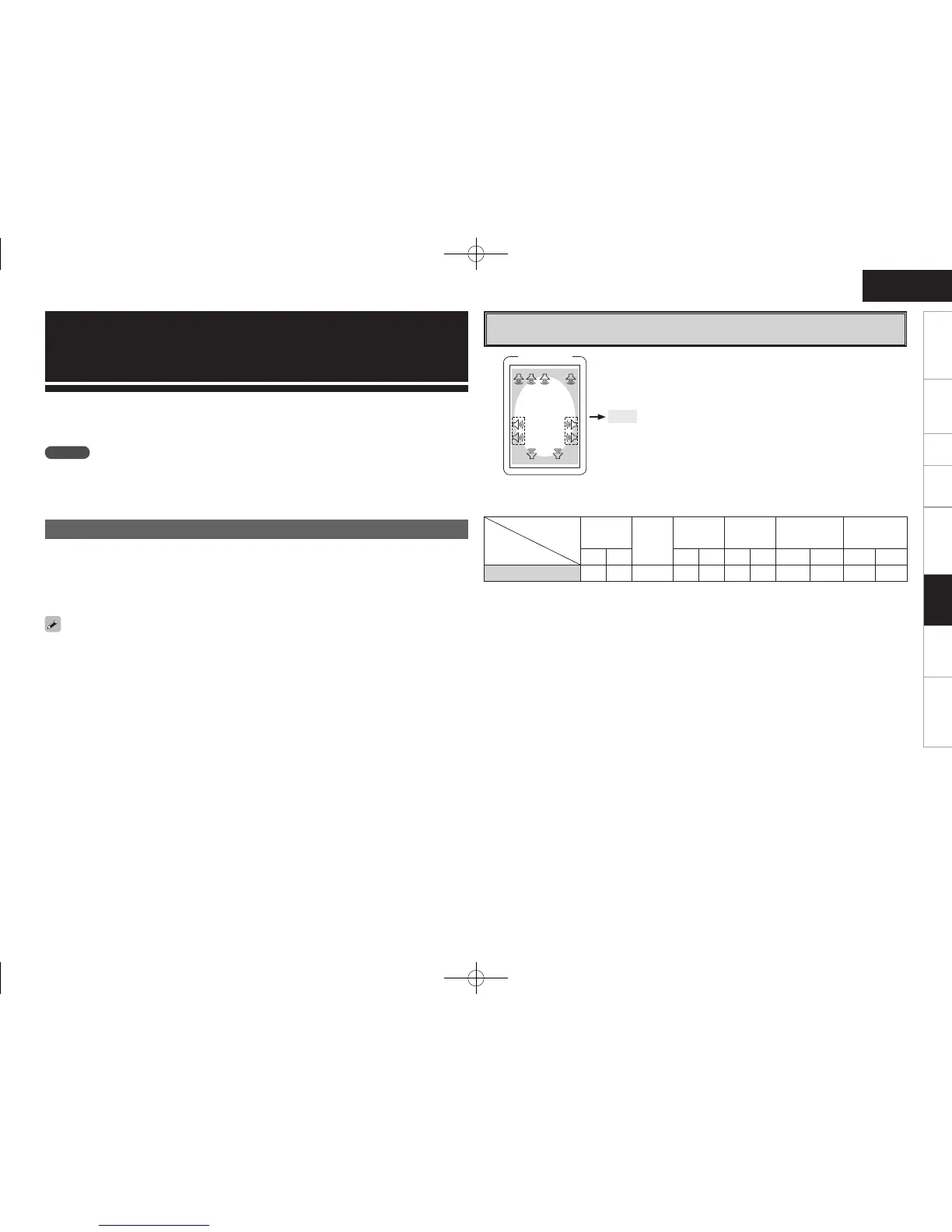

Amp Assign / Multi-Zone Connections and
Operations
The AVR-4308 is compatible with the following types of playback:
• Multi-zone playback (ZONE2 & ZONE3)
• Bi-amp playback (front speaker)
• Bi-wiring playback (front speaker)
NOTE
• For bi-amp and bi-wiring playback, use speakers compatible with that type of connection.
• When conducting bi-amp or bi-wiring playback, remove the short-circuiting boards (or wires) from the
speaker terminals.
Multi-Zone Settings with the Amp Assign Function
The amp assign function lets you assign the amplifiers for the different channels built into the AVR-4308 to
the speaker outputs for the different zones.
Select the desired playback environment from among “Setting 2” to “Setting 7”, then set the corresponding
“Amp Assign” mode at GUI menu “Manual Setup” – “Option Setup” – “Amp Assign” (vpage 36).
Connect the speakers as described at “Amp Assign mode settings and speakers connected to the various
speaker terminals”.
Multi-Zone
With “Setting 5” to “Setting 7”, it is possible to switch the Amp Assign mode between the 7.1-channel
mode and the multizone mode without changing the speaker connections.
FL
SW
SBL SBR
C FR
B
A
SL
B
A
SR
Main zone
7.1ch
Setting 1:
F 7.1-channel playback
n Amp Assign mode setting and speakers connected to the various speaker
terminals
7.1CH
Amp Assign mode:
Speaker terminal
Amp Assign mode
FRONT
CENTER
SURR-A
SURR.
BACK
SURR-B/
AMP ASSIGN
AMP ASSIGN -
2
R L R L R L R L R L
7.1CH FR FL C SR-A SL-A SBR SBL SR-B SL-B – –
(Default)
1.AVR4308E2_ENG_3.indd 73 2007/10/26 11:43:07

Denon AVR-4308 Specifications

General

Number of Channels	7.1
HDMI Inputs	4
HDMI Outputs	2
Networking	Ethernet, Wi-Fi
Multi-room Zones	3
THX Certified	No
Frequency Response	10 Hz - 100 kHz (+1, -3 dB)
Total Harmonic Distortion	0.05%
Input Sensitivity/Impedance	200 mV / 47 kOhms
Signal-to-Noise Ratio	102 dB
HDMI Version	1.3a
Dolby Technologies	Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Pro Logic IIx
DTS Technologies	DTS, DTS-ES, DTS 96/24, DTS-HD Master Audio
Tuner Frequency Range	FM: 87.5 MHz - 108.0 MHz, AM: 522 kHz - 1611 kHz
Audio Inputs/Outputs	Analog, Digital Coaxial, Digital Optical, HDMI
