Multi Zone

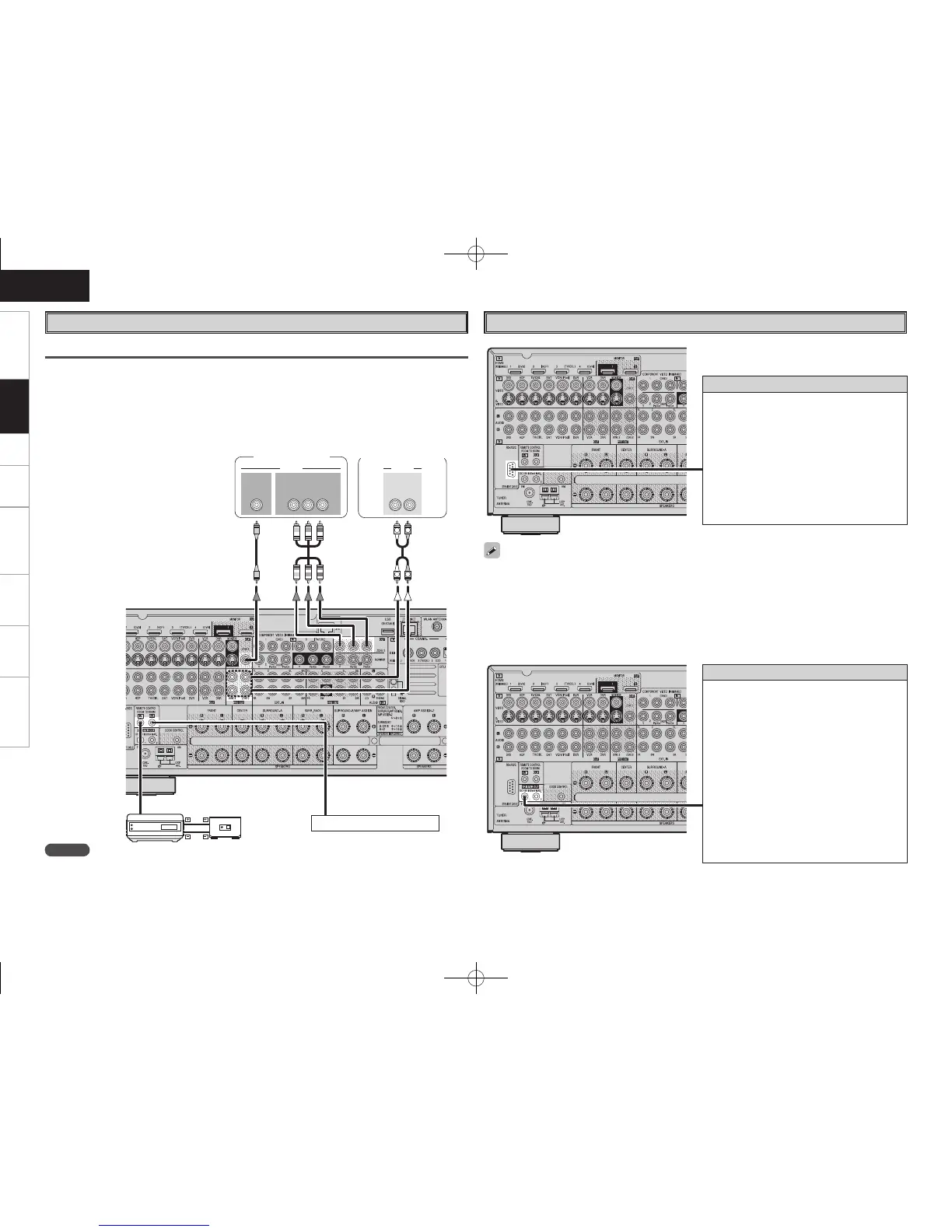

ZONE2 or ZONE3 Pre-out Connections
• If another power amplifier or pre-main (integrated) amplifier is connected, the ZONE2 or ZONE3 pre-out
(variable or fixed level) connectors can be used to play a different program source in ZONE2 or ZONE3
the same time (vpage 73 ~ 77).
• When using a component video cable to connect the AVR-4308 and input device, connect the ZONE2
monitor output to the component video connectors. When using an S-Video cable or a video cable, please
connect the cable to the video connectors.
• The ZONE2 video out is only for ZONE2.
R
L
R
L
"69
065
"6%*0
3-
*/*/
7*%&0
"6%*07*%&0
$0.10/&/57*%&0
: 1# 13
*/
Monitor (ZONE2)
Power amplier
(ZONE2 or ZONE3)
Input
Output
Infrared
retransmitter
Infrared
sensor
Extension jack for future use.
NOTE
• For the audio output, use high quality pin-plug cords so that no induction humming or noise is produced.
• For instructions on installing and operating separately sold devices, refer to the respective devices’
operating instructions.
• To conduct multi-zone playback, see “Amp Assign / Multi-Zone Connections and Operations” (vpage
73 ~ 77).
External Controller
• When using in combination with an RF Remote Controller (RC-7000CI, sold separately) or RF Remote
Receiver (RC-7001RCI, sold separately) two-way communication with an RF Remote Controller is
possible.
The AVR-4308’s status information as well as iPod and Internet audio music files can be browsed watching
the RF Remote Controller’s display. For details, refer to the operating instructions of the respective
devices.
• When used in combination with an RF Remote Controller or RF Remote Receiver, make the settings at
GUI menu “Manual Setup” – “Option Setup” – “2Way Remote” – “Used” (vpage 37).
RS-232C connector
This connector is used for an external controller.
b If you wish to control the AVR-4308 from
an external controller using the RS-232C
connector, perform the operation below
beforehand.
q Turn the AVR-4308’s power.
w Turn off the AVR-4308’s power from the
external controller.
e Check that the AVR-4308 is in the standby
mode.
Trigger output jacks
The power of an external device equipped with
a trigger input jack can be turned on and off in
association with operations on the AVR-4308. For
details, see GUI menu “Manual Setup” – “Option
Setup” – “Trigger Out 1” or “Trigger Out 2”
(vpage 37).
• Output level: 150 mA/12 V
Check the trigger input conditions of the
connected device.
• If the trigger input level of the connected device
is higher than 150 mA/12 V and depending on
the short-circuiting conditions, the AVR-4308’s
protection circuit may be activated, in which case
“TRIGGER PROTECT” appears on the display. If
this happens, turn off the AVR-4308’s power and
disconnect the connected device.
