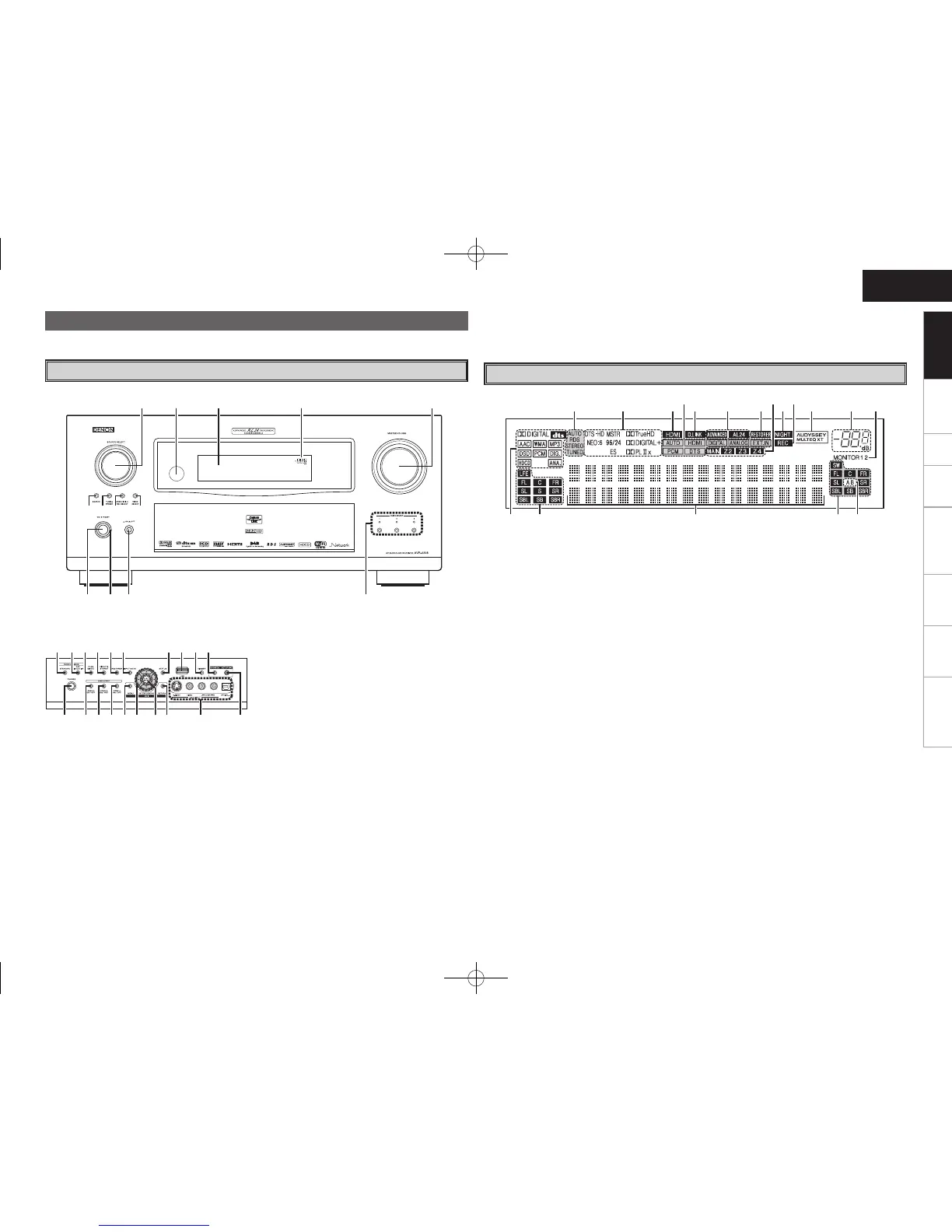

For buttons not explained here, see the page indicated in parentheses ( ).
w e
to i u y
q r
Q3Q2Q1Q0
q Power operation button
(ON/STANDBY) ··········································· (49)
w Power indicator ··········································· (49)
e Power switch (hON jOFF) ····················· (49)
r QUICK SELECT buttons / indicators ·········(63)
t MASTER VOLUME control knob ·········· (49, 77)
y Master volume indicator
u Display
i Remote control sensor ·································(4)
o SOURCE SELECT knob······························· (38)
Q0 SOURCE button ·········································· (38)
Q1 TUNING PRESET button ···························· (51)
Q2 ZONE 2/3/4 / REC SELECT button ······ (62, 77)
Q3 VIDEO SELECT button ······························· (40)
Q4 Headphones jack (PHONES) ······················ (49)
Q5 ZONE2 ON/OFF button ······························ (77)
Q6 ZONE3 ON/OFF button ······························ (77)
Q7 ZONE4 ON/OFF button ······························ (77)
Q8 MENU button ·············································· (24)
Q9 Cursor buttons (uio p) ·························· (24)
W0 CH SEL / ENTER button ······················· (24, 63)
W1 RETURN button ·········································· (24)
W2 V.AUX INPUT connectors ··························· (18)
W3 SETUP MIC jack ·········································· (26)
W4 ROOM EQ button ········································(46)
W5 DIMMER button ·········································· (37)
W6 USB port ······················································ (19)
W7 STATUS button ··········································· (48)
t
uQ3Q7Q8 iQ0
oQ5 Q1
Q2Q4Q6 y
wq e r
q Input signal indicators
w Input signal channel indicators
These light when digital signals are input.
e Information display
The input source name, surround mode, setting
values and other information are displayed here.
r Output signal channel indicators
t Surround speaker indicators
These light according to the settings of the
surround A and B speakers.
y Monitor output indicators
These light according to the HDMI monitor
output setting. When set to “Auto (Dual)”, the
indicators light according to the connection
status.
u Master volume indicator
i AUDYSSEY MULTEQ XT indicator
This lights when the room equalizer is selected.
o Recording output source indicator
This lights when the REC OUT mode is
selected.
Q0 NIGHT indicator
This lights when the night mode is selected.
Q1 Multi zone indicators
These light when the power for the respective
zone is turned on.
Q2 RESTORER indicator
This lights when the RESTORER mode is
selected.
Q3 ADVANCED AL24 indicator
This lights when Advanced AL24 Processing is
activated (vpage 80).
Q4 D.LINK indicator
This lights when playing using DENON LINK
connections.
Q5 Input mode indicators
Q6 HDMI indicator
This lights when playing using HDMI
connections.
Q7 Decoder indicators
These light when the respective decoders are
operating.
Q8 Tuner reception mode indicators
These light according to the reception conditions
when the input source is set to “TUNER” or
“DAB”.
• AUTO
These light when in the auto tuning mode.
• RDS
These light when receiving RDS broadcasts.
• STEREO
In the FM mode, these light when receiving
analog stereo broadcasts.
• TUNED
Lights when the broadcast is properly tuned in.
Part Names and Functions
Front Panel
Display
W2 W3
W4W7E2
W5W6
E3 E0E1 W8W9
Q4 Q5 Q6 Q7 Q8 W1W0Q9
GWith the door openH
E1 PURE DIRECT button ··································(44)
E2 DSP SIMULATION button ·························· (43)
E3 STANDARD button ·····································(43)
W8 INPUT MODE button ·································· (40)
W9 RESTORER button ······································ (46)
E0 DIRECT/STEREO button····························· (44)
