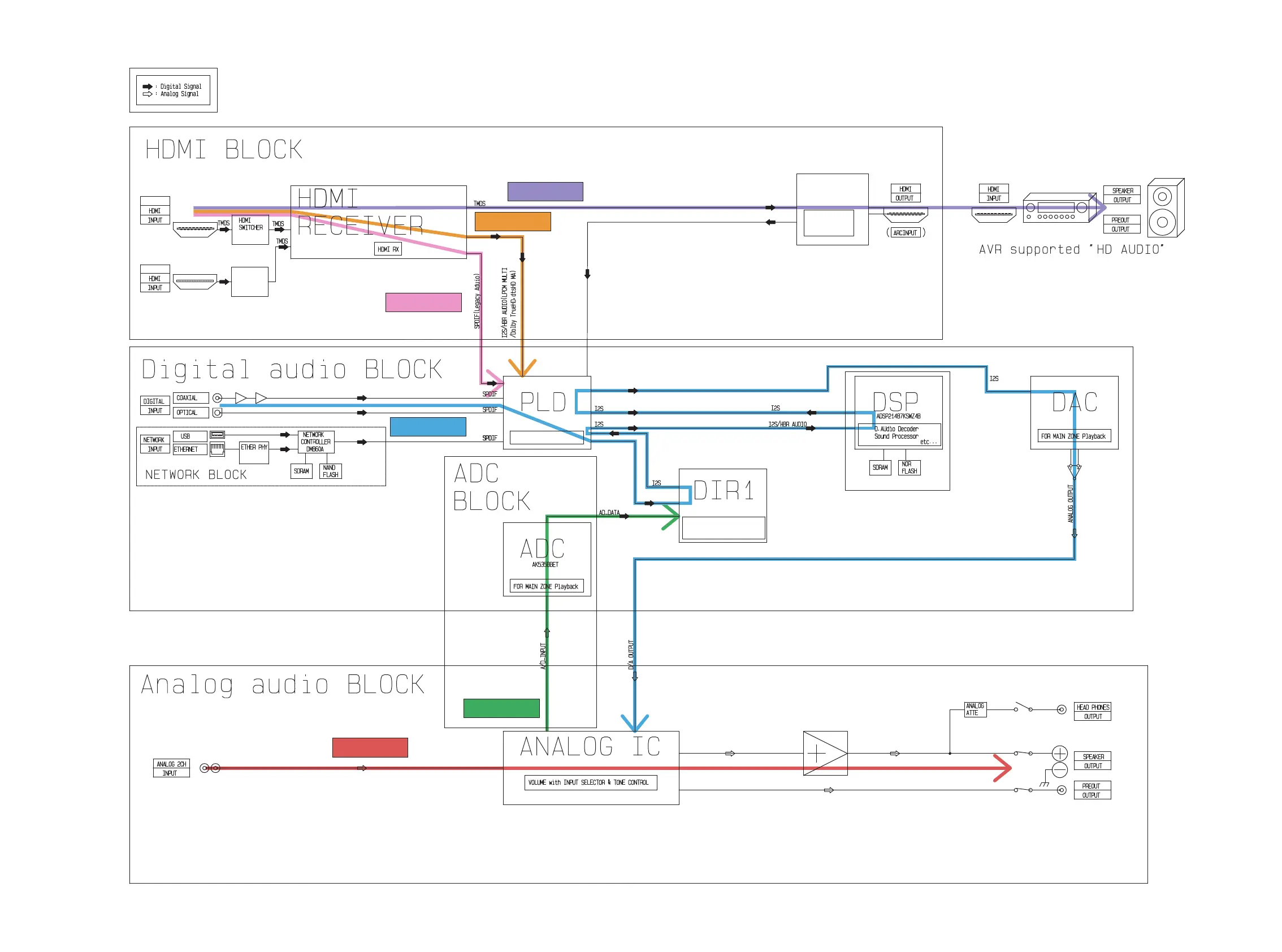

121

Audio Check PASS

Refer to troubleshooting "4.1. AUDIO CHECK"(110 page).

CHECK1

CHECK3

CHECK2

CHECK4

CHECK5

CHECK6

ADV7850

TMDS

BUFFER

ARC(SPDIF)

5M570ZF256C5N

SPDIF/I2S SELECTOR

R2A15220FP

LC89057W-VF4A-E

PCM1795SDBR

×7

DIGITAL AUDIO

DSP BLOCK

×3

INTERFACE RECEIVER

FRONT

REAR

SPDIF

ADV8003

HDMI

TRANSMITTER

with scaler

video encoder

OSD etc...

Sil9575

Sil1292

LAN8720A

/DSD

/DSD

×2

×2

×6

×2

×4
