TECHNICAL SPECIFICATIONS
n
Audio Section
• Poweramplier
Rated output :
Front :
150 W + 150 W (8 Ω, 20 Hz – 20 kHz with 0.05 % T.H.D.)
190 W + 190 W (6 Ω, 1 kHz with 0.7 % T.H.D.)
Center :
150 W (8 Ω, 20 Hz – 20 kHz with 0.05 % T.H.D.)
190 W (6 Ω, 1 kHz with 0.7 % T.H.D.)
Surround :
150 W + 150 W (8 Ω, 20 Hz – 20 kHz with 0.05 % T.H.D.)
190 W + 190 W (6 Ω, 1 kHz with 0.7 % T.H.D.)
Surround back / Front height / Front wide :
150 W + 150 W (8 Ω, 20 Hz – 20 kHz with 0.05 % T.H.D.)
190 W + 190 W (6 Ω, 1 kHz with 0.7 % T.H.D.)
Dynamic power :
170 W x 2ch (8 Ω)
280 W x 2ch (4 Ω)
Output connectors : 4 – 16 Ω
• Analog
Input sensitivity/Input impedance : 200 mV/47 kΩ
Frequency response : 10 Hz – 100 kHz — +1, –3 dB (DIRECT mode)
S/N : 102 dB (IHF–A weighted, DIRECT mode)
Distortion : 0.005 % (20 Hz – 20 kHz) (DIRECT mode)
Rated output : 1.2 V
• Digital
D/A output :
Rated output — 2 V (at 0 dB playback)
Total harmonic distortion — 0.008 % (1 kHz, at 0 dB)
S/N ratio — 102 dB
Dynamic range — 100 dB
Digital input : Format — Digital audio interface
•
Phonoequalizer(PHONOinput—MEDIAPLAYEROUT)
Input sensitivity : 2.5 mV
RIAA deviation : ±1 dB (20 Hz to 20 kHz)
S/N : 74 dB (IHF–A weighted)
Rated output : 150 mV
Distortion factor : 0.03 % (1 kHz, 3 V)
n
Video section
• Standard video connectors
Input/output level and impedance : 1 Vp-p, 75 Ω
Frequency response : 5 Hz – 10 MHz — 0, –3 dB
(when “Video Conversion” set to “Off”)
• Color component video connector
Input/output level and impedance :
Y signal — 1 Vp-p, 75 Ω
PB / CB signal — 0.7 Vp-p, 75 Ω
PR / CR signal — 0.7 Vp-p, 75 Ω
Frequency response : 5 Hz – 60 MHz — 0, –3 dB
(when “Video Conversion” set to “Off”)
n
Tuner section (E3 model)
(ANTENNA input – MEDIA PLAYER OUT)
[FM](Note: μV at 75 Ω, 0 dBf = 1 x 10
–15
W)
Receiving Range :
[FM] 87.5 MHz – 107.9 MHz
[AM] 530 kHz – 1710 kHz
Usable Sensitivity :
[FM]1.5 μV (14.8 dBf)
[AM] 20 μV
S/N (IHF–A weighted) :
[FM]MONO 78 dB
STEREO 68 dB
HD 85 dB
[AM]HD 85 dB
Distortion(1kHz):
[FM]MONO 0.1 %
STEREO 0.2 %
HD 0.02 %
[AM]HD 0.02 %
n
Tuner section (E2,E1C model)
(ANTENNA input – MEDIA PLAYER OUT)
[FM](Note: μV at 75 Ω, 0 dBf = 1 x 10
–15
W)
Receiving Range :
[FM] 87.5 MHz – 108.0 MHz
Usable Sensitivity :
[FM]1.2 μV (12.8 dBf)
50 dB Quieting Sensitivity :
[FM]MONO 2.0 μ (20.2 dBf)
S/N (IHF–A weighted):
[FM]MONO 70 dB
STEREO 67 dB
Distortion(1kHz):
[FM]MONO 0.7 % (1 kHz)
STEREO 1.0 % (1 kHz)
n
Switching hub
Standard : IEEE 802.3 (10 Base-T)-compliant
IEEE 802.3u (100 Base-TX)-compliant
Number of ports : 4 ports
n
General
Power supply (for E3 model) : AC 120 V, 60 Hz
Power supply (for E2 model) : AC 230 V, 50/60 Hz
Power supply (for E1C model) : AC 220 V, 50 Hz
Power consumption : 780 W
Power consumption in standby mode : 0.1 W
Power consumption in CEC standby mode : 0.5 W
Power comsumption in network standby mode : 5.1 W
Weight : 16.5 kg
18.5
180
14.5
194.5
64.7
244.5
422.7
382.8
434
344
30.5 35.5114
54.2 163 133

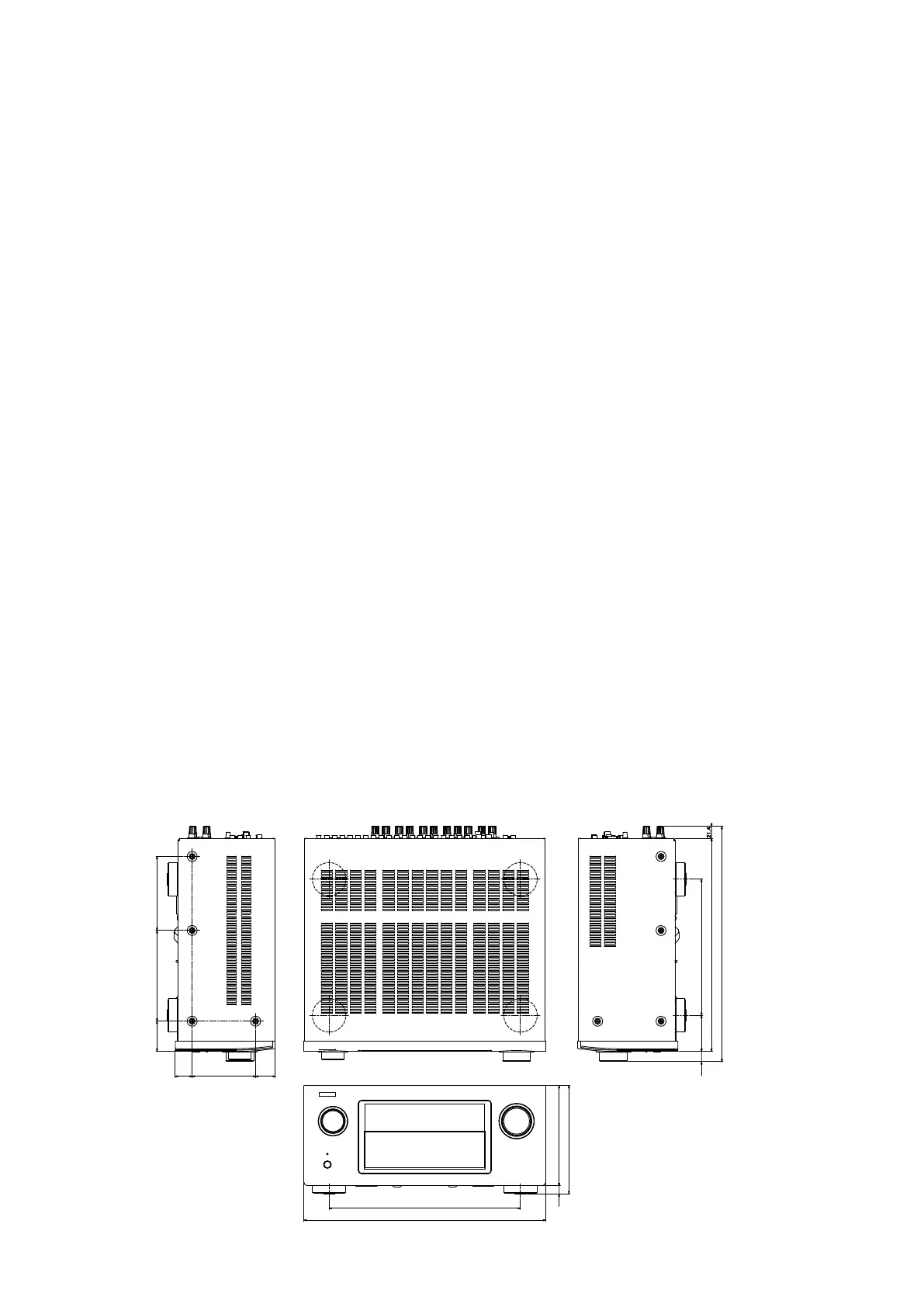

DIMENSION

Denon AVR-4520 Specifications

General

Impedance	8 Ω
Receiver type	Surround
Frequency range	10 - 100000 Hz
Input sensitivity	200 mV
Audio output channels	7.1 channels
Audio A/D Converter (ADC)	24-bit/192kHz
Signal-to-Noise Ratio (SNR)	102 dB
Power output per channel (1KHz@6 Ohm)	190 W
Power output per channel (20-20KHz@8 Ohm)	150 W
HDMI in	7
Composite video in	4
USB ports quantity	1
Digital audio optical in	2
Component video (YPbPr/YCbCr) in	3
Connectivity technology	Wired
Speakers connectivity type	-
Audio formats supported	AAC, FLAC, MP3, WMA
Wi-Fi	No
Ethernet LAN	Yes
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Product color	Silver
Audio decoders	Dolby Digital EX, Dolby Pro Logic IIz, Dolby TrueHD, DTS 96/24, DTS Neo:6, DTS Neo:X, DTS-HD
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Apple docking compatibility	Not supported
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (standby)	0.1 W
Power consumption (typical)	780 W

Weight and Dimensions

Depth	423 mm
Width	434 mm
Height	195 mm
Weight	16500 g
