Denon AVR-4520 Service Manual

188

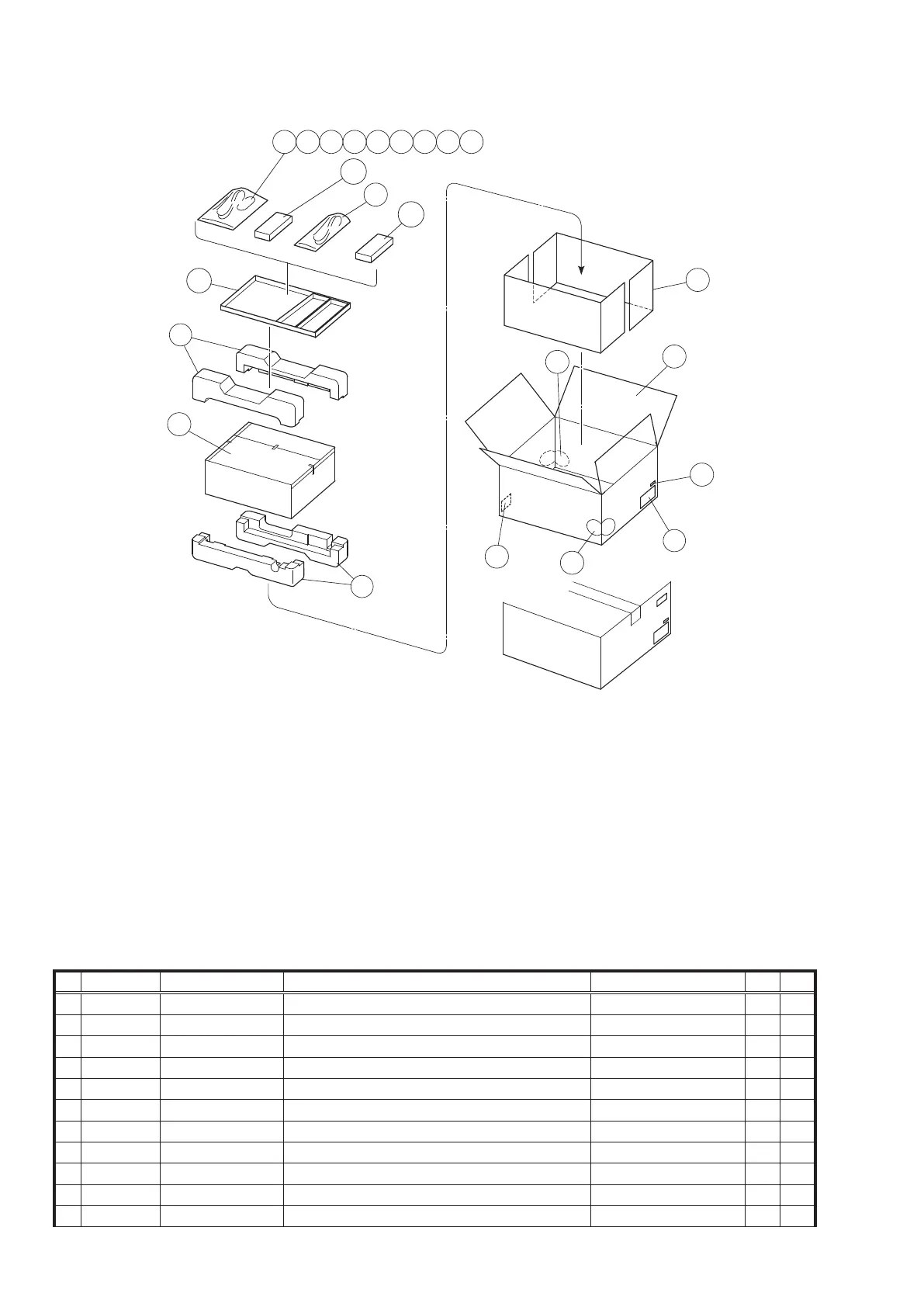

PACKING VIEW
PARTS LIST OF PACKING & ACCESSORIES
z
Parts indicated by "nsp" on this table cannot be supplied.
z
Parts indicated by the "
★
" mark are not illustrated in the exploded view.
z
The parts listed below are only for maintenance. Therefore they might differ from the parts used in the unit in appearances or dimensions.
Note:
The symbols in the column "Remarks" indicate the following destinations.
E3 : U.S.A. & Canada model E2 : Europe model
E1C : China mode JP : Japan model
BK : Black model SP : Premium Silver model
Ref. No. Part No. Part Name Remarks Q'ty New
L20 nsp MAC ADDRESS SUB ASSY
L70 nsp CONT LABEL SUB ASSY
P10 nsp CABINET SHEET 1
P20 53111024101AD CARTON CASE BKE2 1
P20 53111024100AD CARTON CASE CIBKE3 1
P20 53111024103AD CARTON CASE K 1
P20 53111024102AD CARTON CASE SPE1C 1
P20 53111024101AD CARTON CASE SPE2 1
P30 nsp SPACER 2
P40 nsp CUSHON ASSY 1
U10 nsp ENVELOPE BKE2 1
P40
P40
P10
L20
U130
L70
U10 U20 U25 U30 U40 U80U70U60U50
U90
P20
P30
U75
U110
U120
U130
z
L70

Denon AVR-4520 Specifications

General

Impedance	8 Ω
Receiver type	Surround
Frequency range	10 - 100000 Hz
Input sensitivity	200 mV
Audio output channels	7.1 channels
Audio A/D Converter (ADC)	24-bit/192kHz
Signal-to-Noise Ratio (SNR)	102 dB
Power output per channel (1KHz@6 Ohm)	190 W
Power output per channel (20-20KHz@8 Ohm)	150 W
HDMI in	7
Composite video in	4
USB ports quantity	1
Digital audio optical in	2
Component video (YPbPr/YCbCr) in	3
Connectivity technology	Wired
Speakers connectivity type	-
Audio formats supported	AAC, FLAC, MP3, WMA
Wi-Fi	No
Ethernet LAN	Yes
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Product color	Silver
Audio decoders	Dolby Digital EX, Dolby Pro Logic IIz, Dolby TrueHD, DTS 96/24, DTS Neo:6, DTS Neo:X, DTS-HD
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Apple docking compatibility	Not supported
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (standby)	0.1 W
Power consumption (typical)	780 W

Weight and Dimensions

Depth	423 mm
Width	434 mm
Height	195 mm
Weight	16500 g
