Denon AVR-4520

17

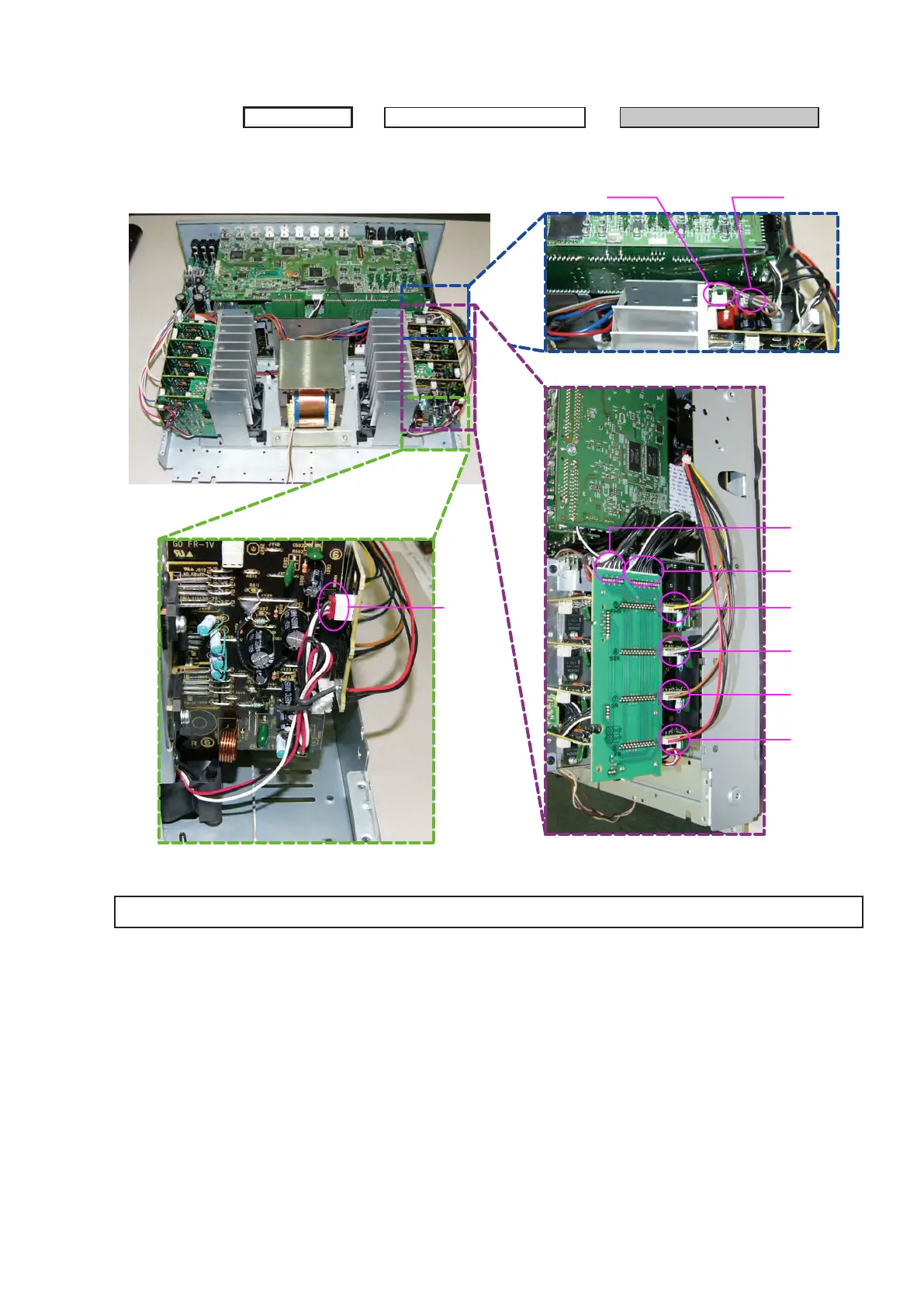

3. RADIATOR(R) SUB ASSY
(1) Disconnect the connector wires.
Please refer to "EXPLODED VIEW" for the disassembly method of each PWB included in RADIATOR(R) SUB ASSY.
TOP COVER
→
RADIATOR(R) SUB ASSY
→
Proceeding :
RADIATOR(L) SUB ASSY
N3901
N3902
N9022
N902
N802
N702
N602
N9017
N9016
Shooting direction: B
Direction of photograph: C
Direction of photograph: C
Shooting direction: B
