Denon AVR-A100 User Manual

107
Basic versionSimple version Information
ENGLISH
Advanced version
Remote control operation
buttons
Move the cursor
(Up/Down/Left/Right)
Confi rm the setting Return to previous menu

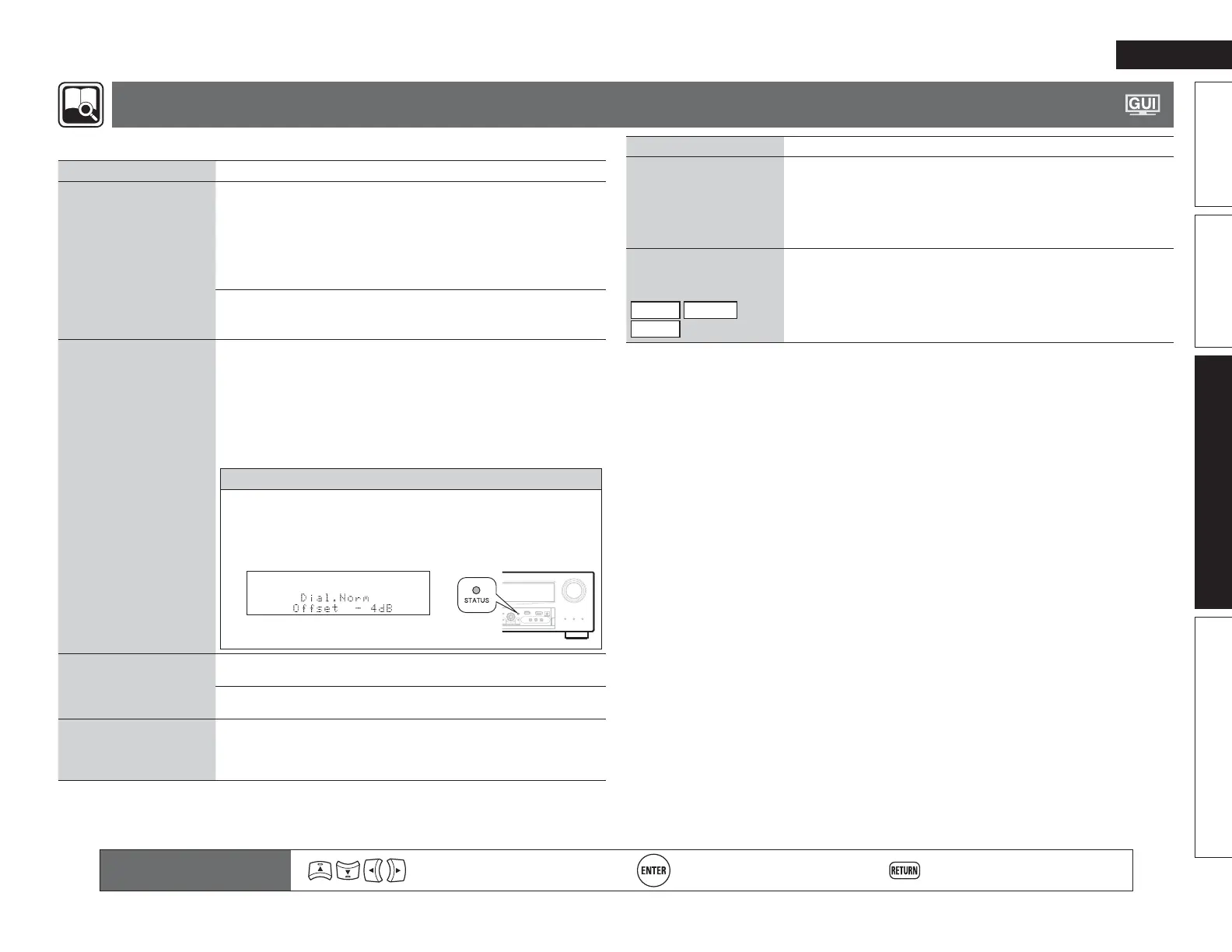

INFORMATION
Show information about receiver settings, input signals, etc.
Items Setting details
Status
Show information about
current settings.
n MAIN ZONE
This item shows information about settings for MAIN ZONE.
The information displayed differs according to the input source.
Select Source / Name / Surround Mode / Input Mode /
Decode Mode / HDMI / Digital / Component / Rec Select /
Video Select / Video Mode / Content Type / Video Convert /
i/p Scaler / Resolution / Progressive Mode / Aspect etc.
n ZONE2/3
This item shows information about settings for ZONE2 or ZONE3.
ZONE2 / ZONE3 / Power / Select Source / Volume Level
Audio Input Signal
Show information about
audio input signals.
Surround Mode : The currently set surround mode.
Signal : The input signal type.
fs : The input signal’s sampling frequency.
Format : The number of channels in the input signal (front, surround, LFE).
Offset : The dialogue normalization correction value.
Flag : This is displayed when inputting signals including a surround back
channel. “MATRIX” is displayed with Dolby Digital EX and DTS-ES Matrix
signals, “DISCRETE” with DTS-ES Discrete signals.
Dialogue normalization function
This function is automatically activated when playing Dolby Digital
sources.
It automatically corrects the standard signal level for individual program
sources.
The correction value can be checked using the
STATUS.
The fi gure is the corrected value.
This cannot be changed.
HDMI Information
Show information about
HDMI input/output signals
and monitor.
Signal Info.
• Resolution / Color Space / Pixel Depth
Monitor 1 / Monitor 2
• Interface / Supported resol.
Auto Surround Mode
Show information about
auto surround mode
settings.
Analog/PCM 2ch / Digital 2ch / Digital 5.1ch / Multi ch
Items Setting details
Quick Select
Show information about
“Quick select function”
(vpage67) settings.
Quick Select 1 / Quick Select 2 / Quick Select 3 / ZONE2 Quick Select 1 /
ZONE2 Quick Select 2 / ZONE2 Quick Select 3 / ZONE3 Quick Select 1 /
ZONE3 Quick Select 2 / ZONE3 Quick Select 3
• Select Source / Video Select / Volume Level / MultEQ
®
XT 32 /
Dynamic EQ
®
/ Dynamic Volume
®
/ Analog/PCM 2ch / Digital 2ch /
Digital 5.1ch / Multi ch
Preset Channel
Show information about
preset channels.
SIRIUS HD Radio
NET/USB
A / B / C / D / E / F / G
A1 – A8 / B1 – B8 / C1 – C8 / D1 – D8 / E1 – E8 / F1 – F8 / G1 – G8

Denon AVR-A100 Specifications

General

Impedance	4 Ω
Sensitivity	102 dB
Output level	150 mV
Receiver type	Surround
Frequency range	10 - 100000 Hz
Input sensitivity	200 mV
Audio output channels	9.2 channels
Total Harmonic Distortion (THD)	0.05 %
Dynamic power per channel (4 Ohm)	220 W
Dynamic power per channel (8 Ohm)	150 W
Power output per channel (1KHz@6 Ohm)	170 W
Power output per channel (20-20KHz@8 Ohm)	140 W
HDMI in	7
Audio (L/R) in	9
Composite video in	5
Digital audio optical in	2
Ethernet LAN (RJ-45) ports	1
Component video (YPbPr/YCbCr) in	3
AirPlay	Yes
Display	-
HDMI version	1.4a
Product color	Black
Audio decoders	DTS-HD, Dolby TrueHD
Handheld remote control	No
Apple docking compatibility	Not supported
AC input voltage	120 V
AC input frequency	60 Hz
Power consumption (standby)	0.1 W
Power consumption (typical)	780 W
Connectivity technology	Wired
Speakers connectivity type	RCA
Audio (L/R) out	11
AM band range	520 - 1710 kHz
FM band range	87.5 - 107.9 MHz
Supported radio bands	AM, FM
Internet radio services supported	SIRIUS Internet Radio

Weight and Dimensions

Depth	414 mm
Width	434 mm
Height	171 mm
Weight	18500 g
