Denon AVR-A100 User Manual

25
Simple version Advanced version Information
ENGLISH
Basic version

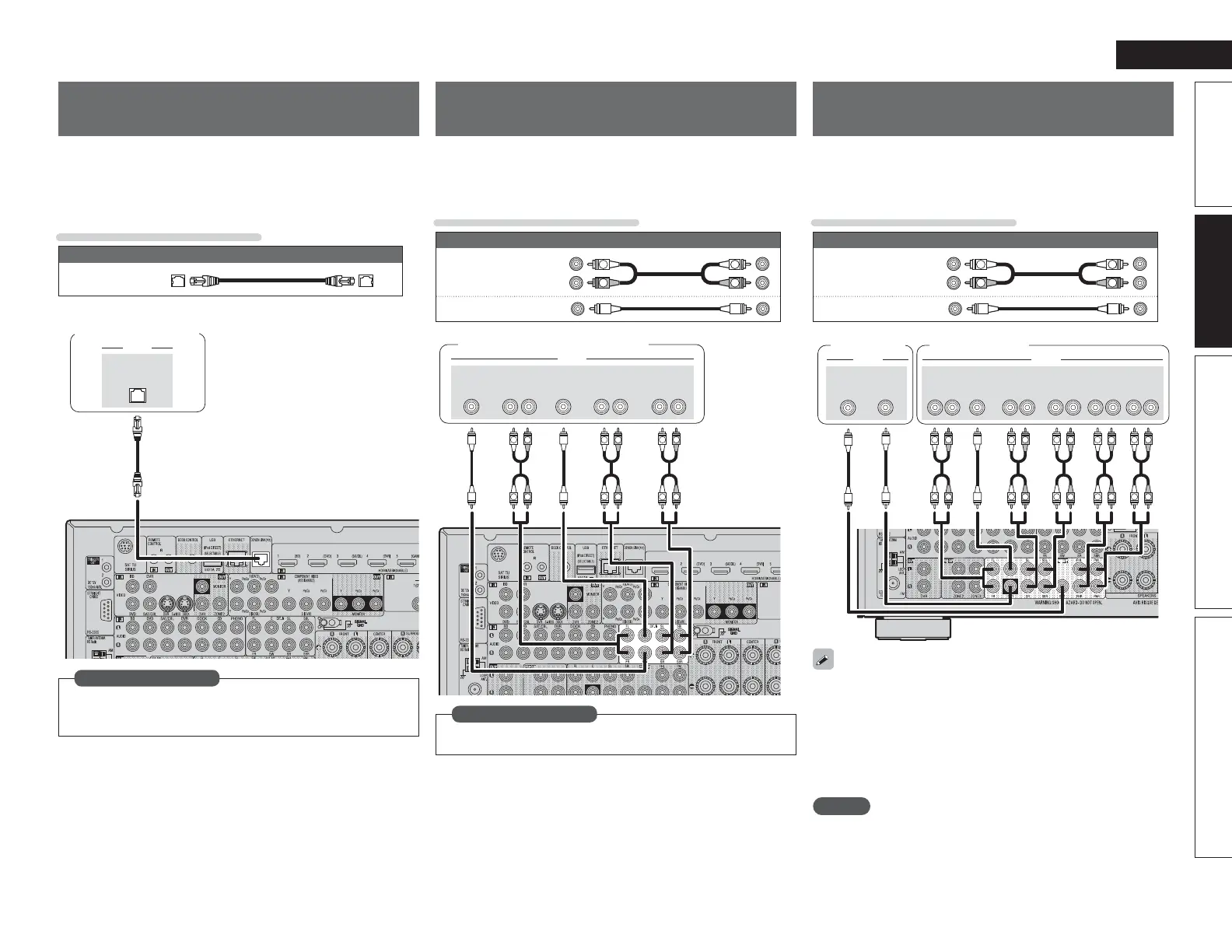

Connecting a external power
amplifier
• You can use this unit as a pre-amp by connecting a commercially
available power amp to the PRE OUT connector. Adding a power amp
to each of the channels provides an even greater sound presence.
• Select the terminal to use and connect the device.
Cables used for connections
Audio cable (sold separately)
Audio cable
(White)
(Red)
R
L
R
L
Audio cable
R
L
R
L
R
L
R
L
R
L
R
L
R
L
R
L
R
L
R
L
46#
800'&3

46#
800'&3

$&/5&3 463306/%
#"$,
3-
463306/%
3-
'30/5
)&*()5
3-
'30/5
8*%&
3-
'30/5
3-
"6%*0"6%*0
Power amplifierSubwoofer
• When using just one surround back speaker, connect it to the left
channel (L) terminal.
• Use the volume control on the subwoofer to control subwoofer
volume.
• If the subwoofer volume sounds low, use the volume control
provided on the subwoofer to adjust the volume.
• You can use this unit as a preamplifier. For details, see “PRE AMP
mode” (vpage62).
NOTE
When external power amplifier have been connected to PRE OUT
terminals, do not connect the speakers to the speaker terminals.
Component equipped with a DENON
LINK connector
Multichannel playback is possible. That includes DVD-Audio and Super
Audio CD (vpage30 “Playing an iPod®”).
Also, refer to page29 “Playing a Blu-ray Disc player compatible with
DENON LINK 4th” for information on connecting a player that supports
DENON LINK 4th edition.
Cables used for connections
Audio cable (sold separately)
DENON LINK
cable
%&/0/-*/,
"6%*0
Blu-ray Disc player /
DVD player
When connecting by use of DENON LINK, set “Digital” to
“D.LINK”.
“Input Assign” (vpage82)
in Set as Necessary
Component with Multi-channel
Output connectors
• You can connect this unit to an external device fitted with multi-
channel sound audio output jacks to enjoy music and video.
• The video signal can be connected in the same way as a Blu-ray Disc
player / DVD player (vpage18 “Connecting a Blu-ray Disc player”).
Cables used for connections
Audio cable (sold separately)
Audio cable
(White)
(Red)
R
L
R
L
Audio cable
R
L
R
L
R
L
R
L
R
L
R
L
46#
800'&3
$&/5&3 463306/%
#"$,
3-
463306/%
3-
'30/5
3-
"6%*0
Blu-ray Disc player / DVD player
To play analog signals input from the external input (EXT. IN)
terminal, set “Input Mode” (vpage84) to “EXT. IN”.
in Set as Necessary

Denon AVR-A100 Specifications

General

Impedance	4 Ω
Sensitivity	102 dB
Output level	150 mV
Receiver type	Surround
Frequency range	10 - 100000 Hz
Input sensitivity	200 mV
Audio output channels	9.2 channels
Total Harmonic Distortion (THD)	0.05 %
Dynamic power per channel (4 Ohm)	220 W
Dynamic power per channel (8 Ohm)	150 W
Power output per channel (1KHz@6 Ohm)	170 W
Power output per channel (20-20KHz@8 Ohm)	140 W
HDMI in	7
Audio (L/R) in	9
Composite video in	5
Digital audio optical in	2
Ethernet LAN (RJ-45) ports	1
Component video (YPbPr/YCbCr) in	3
AirPlay	Yes
Display	-
HDMI version	1.4a
Product color	Black
Audio decoders	DTS-HD, Dolby TrueHD
Handheld remote control	No
Apple docking compatibility	Not supported
AC input voltage	120 V
AC input frequency	60 Hz
Power consumption (standby)	0.1 W
Power consumption (typical)	780 W
Connectivity technology	Wired
Speakers connectivity type	RCA
Audio (L/R) out	11
AM band range	520 - 1710 kHz
FM band range	87.5 - 107.9 MHz
Supported radio bands	AM, FM
Internet radio services supported	SIRIUS Internet Radio

Weight and Dimensions

Depth	414 mm
Width	434 mm
Height	171 mm
Weight	18500 g
