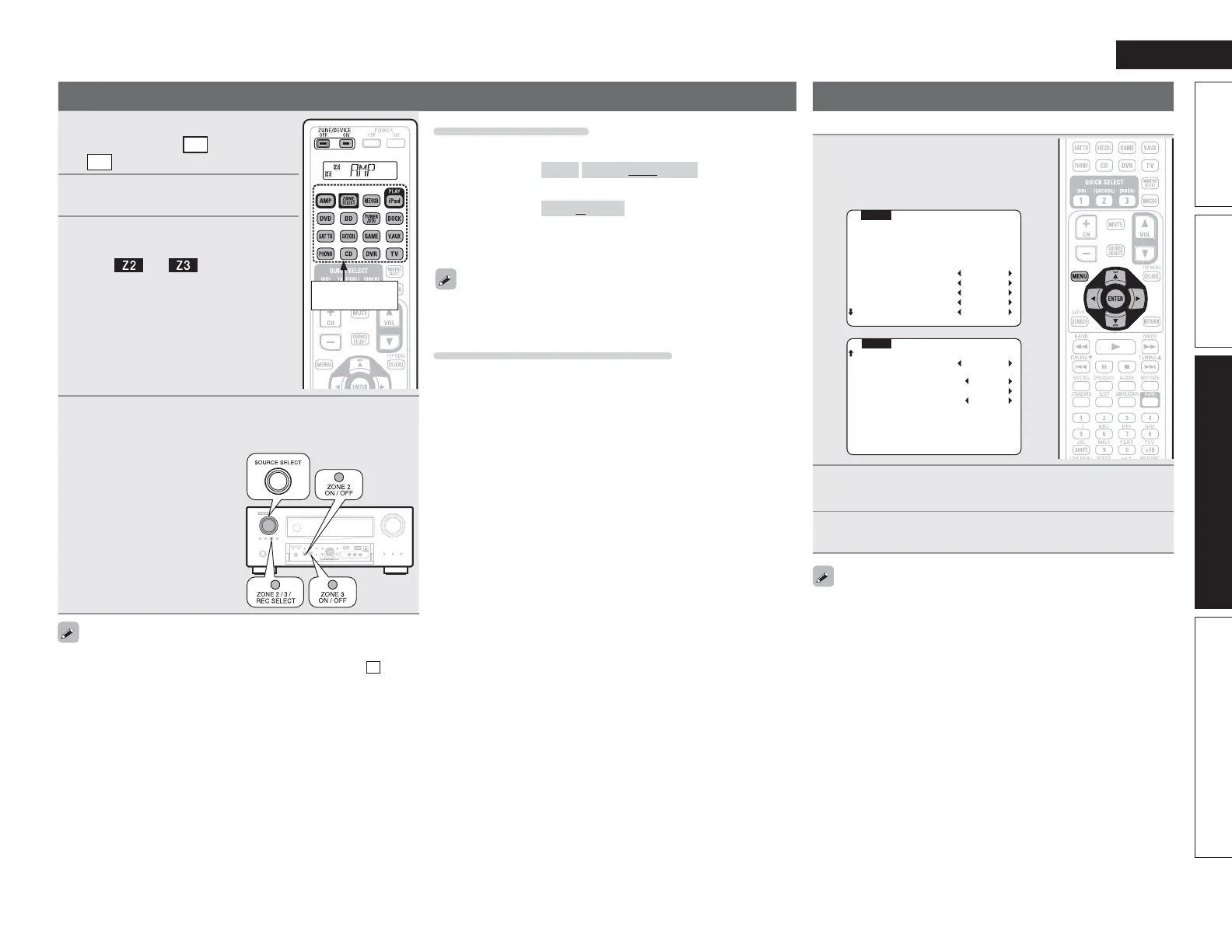

Denon AVR-A100 User Manual

73
Basic versionSimple version Information
ENGLISH
Advanced version
Playback
1
3UHVVZONE SELECTWRVZLWFKWKH
]RQH PRGH WR
Z2
 =21( RU
Z3
=21(
Input source
select buttons
2
3UHVVAMP
3
3UHVV ZONE/DEVICE ON WR WXUQ
RQWKH=21(RU=21(SRZHU
The or indicator on the
display lights.
• Also press input source select button when
in standby mode, the power turns on.
• When
ZONE/DEVICE OFF is pressed,
ZONE2 or ZONE3 turns off.
• Power in ZONE2 or ZONE3 can be turned
on or off by pressing
ZONE2 ON/OFF or
ZONE3 ON/OFF on the main unit.
4
3UHVVWKHLQSXWVRXUFHVHOHFWEXWWRQ
The audio signal of the selected source is output to ZONE2 or
ZONE3.
• Turn
SOURCE SELECT after
pressing
ZONE2/3 / REC SELECT
on the main unit to select an
input source.
When power for both MAIN ZONE and ZONE2 (ZONE3) is set to ON,
power of the MAIN ZONE only can be turned off. Select
M
(MAIN
ZONE) in step 1 then press
ZONE/DEVICE OFF.
Adjusting the volume
Use VOL df to adjust the volume.
GAdjustable rangeH
– – – –80dB – –40dB – 18dB
(When the “Volume Display” (vpage104) setting is “Relative”)
GAdjustable rangeH
0 – 41 – 99
(When the “Volume Display” (vpage104) setting is “Absolute”)
• At time of purchase, “Volume Limit” (vpage103) is set to “–10dB
(71)”.
Turn MASTER VOLUME after pressing ZONE2/3 / REC SELECT on the
main unit to adjust the sound volume.
Turning off the sound temporarily
Press MUTE.
The sound is reduced to the level set at “Mute Level” (vpage103) in
the menu.
• To cancel, either adjust the volume or press
MUTE again.
• The setting is canceled when the zone’s power is turned off.
Menu Operation
The settings related to tone adjustment and volume can be made.
1
,Q WKH ]RQH PRGH IRU ZKLFK \RX
ZDQWWRRSHUDWHSUHVVMENU
The ZONE2 or ZONE3 menu is displayed
on the ZONE2 TV.
MENU ZONE2
INPUT :SAT/CBL
SIGNAL:ANALOG
VOL. :-40dB
>Bass 0dB
HPF OFF
Treble 0dB
Lch Lev. 0dB
Rch Lev. 0dB
>Channel STEREO
Vol.Lev. - VAR -
P.On Lev. LAST
Vol.Limit -10dB
Mute Lev. FULL
MENU ZONE2
2
3UHVV uio p WR VHOHFW WKH PHQX WR EH VHW RU
RSHUDWHG
3
3UHVVMENUWRHQWHUWKHVHWWLQJ
The on-screen display disappears.
• For ZONE2, the “Zone Setup” can be made while watching the
on-screen display.
Also, when ZONE3 is operated, the on-screen display appears on
the ZONE2 monitor, so operation can be performed watching this
on-screen display.
• You can adjust these setting in “Zone Setup” (vpage103) in the
menu.

Denon AVR-A100 Specifications

General

Impedance	4 Ω
Sensitivity	102 dB
Output level	150 mV
Receiver type	Surround
Frequency range	10 - 100000 Hz
Input sensitivity	200 mV
Audio output channels	9.2 channels
Total Harmonic Distortion (THD)	0.05 %
Dynamic power per channel (4 Ohm)	220 W
Dynamic power per channel (8 Ohm)	150 W
Power output per channel (1KHz@6 Ohm)	170 W
Power output per channel (20-20KHz@8 Ohm)	140 W
HDMI in	7
Audio (L/R) in	9
Composite video in	5
Digital audio optical in	2
Ethernet LAN (RJ-45) ports	1
Component video (YPbPr/YCbCr) in	3
AirPlay	Yes
Display	-
HDMI version	1.4a
Product color	Black
Audio decoders	DTS-HD, Dolby TrueHD
Handheld remote control	No
Apple docking compatibility	Not supported
AC input voltage	120 V
AC input frequency	60 Hz
Power consumption (standby)	0.1 W
Power consumption (typical)	780 W
Connectivity technology	Wired
Speakers connectivity type	RCA
Audio (L/R) out	11
AM band range	520 - 1710 kHz
FM band range	87.5 - 107.9 MHz
Supported radio bands	AM, FM
Internet radio services supported	SIRIUS Internet Radio

Weight and Dimensions

Depth	414 mm
Width	434 mm
Height	171 mm
Weight	18500 g
