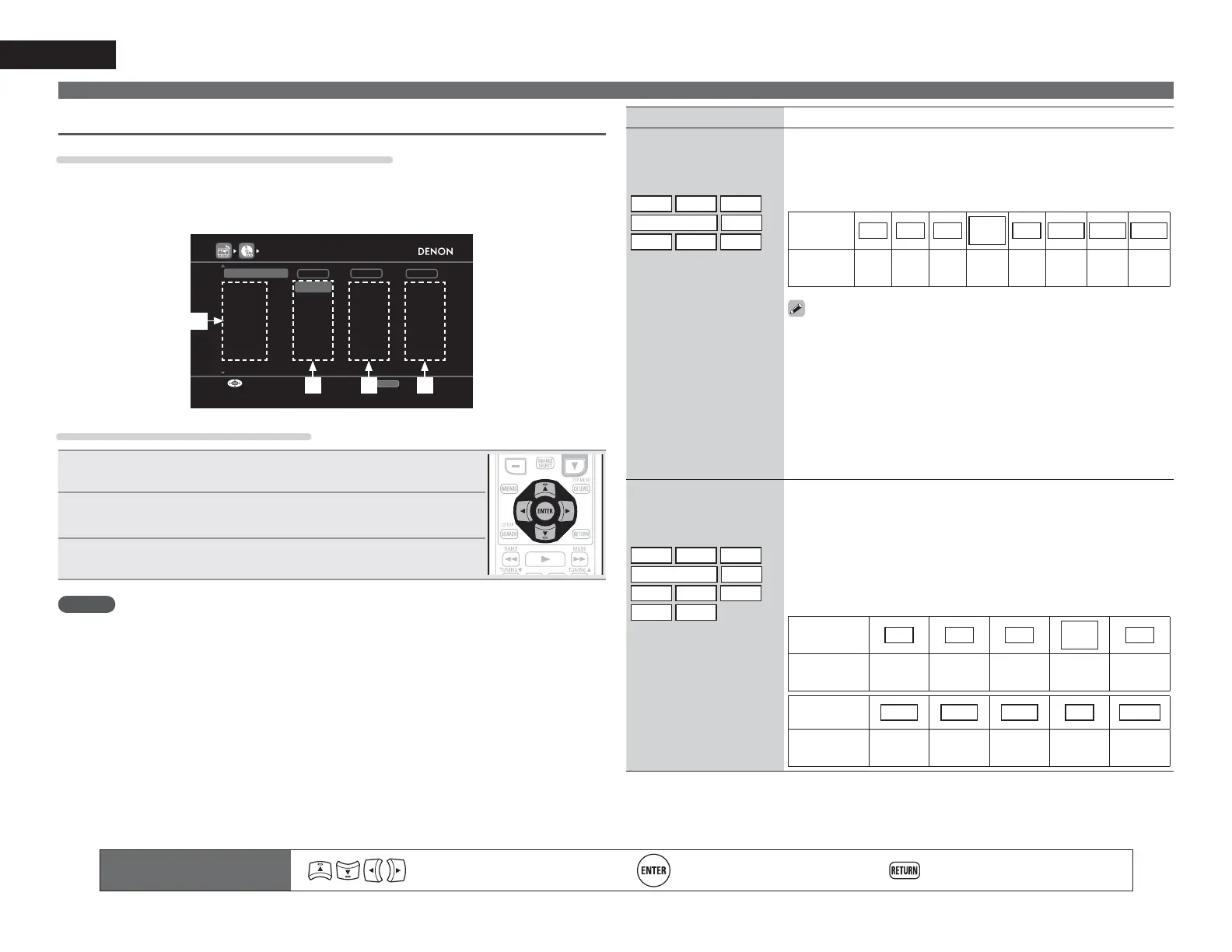

Denon AVR-A100 User Manual

82
ENGLISH
Input Assign
Examples of input assign menu screen displays
This screen appears when the “SOURCE SELECT” – “each input source” – “Input Assign” menu is
selected. Use the “Input Assign” menu to change the w HDMI input connectors, e Digital input
connectors, and r component input connectors that are assigned to the q input sources in default
settings.
+'0,
+'0,
1RQH
+'0,
+'0,
+'0,
+'0,
1RQH
&2$;
237
&2$;
237
1RQH
1RQH
1RQH
5&$
1RQH
5&$
5&$
1RQH
1RQH
,1387$66,*1 >@
'HIDXOW
&KDQJH+'0,LQSXWFRQQHFWRUDVVLJQPHQW
+'0, ',*,7$/ &203
5(7851
(QWHU6HOHFW 5HWXUQ
%'
'9'
79
6$7&%/
'95
*$0(
9$8;
q
ew r
Input assignments menu operations
1
8VHuiopWRPRYHWKHKLJKOLJKWWRWKHLWHP\RXZDQWWRVHW
2
3UHVVENTERWKHQXVHopWRVHOHFWWKHLQSXWFRQQHFWRUWREH
DVVLJQHG
3
3UHVVENTERWRUHJLVWHUWKHVHWWLQJ
NOTE
If all “HDMI”, “DIGITAL” and “COMP” assignment of the Game source are set to “None”, Game source
cannot be selected with the input source selection.
SOURCE SELECT
Remote control operation
buttons
Move the cursor
(Up/Down/Left/Right)
Confi rm the setting Return to previous menu
Setting items Setting details
HDMI
Set this to change the HDMI
input connectors assigned
to the input sources.
BD DVD TV
SAT/CBL DVR
GAME V.AUX DOCK
HDMI 1 / HDMI 2 / HDMI 3 / HDMI 4 / HDMI 5 / HDMI 6 / HDMI 7
None : Do not assign an HDMI input connector to the selected input
source.
• At time of purchase, the settings of the different input sources are as
shown below.
Input
source
BD
DVD TV
SAT/
CBL
DVR GAME V.AUX
DOCK
Default
setting
HDMI
1
HDMI
2
None
HDMI
3
HDMI
4
HDMI
5
HDMI
7
HDMI
6
• An input source to which an HDMI input connector cannot be assigned
is displayed as “– – –”.
• To play the video signal assigned at “HDMI” combined with the audio
signal assigned at “Input Assign“ – “Digital”, select “Digital” at “Input
Mode” (vpage84).
• The audio signals input from the analog and digital connectors are not
output to the monitor.
• When a control dock for iPod is connected, signals cannot be assigned
to the HDMI connectors.
• When “HDMI Control” – “Control” (vpage99) is set to “ON”, HDMI
input connector cannot be assigned to “TV”.
DIGITAL
Set this to change the digital
input connectors assigned
to the input sources.
BD DVD TV
SAT/CBL DVR
GAME V.AUX DOCK
CD SIRIUS
COAX (coaxial) 1 – 2 / OPT (optical) 1 – 2 / D.LINK (DENON LINK)z
None : Do not assign a digital input connector to the selected input source.
z “D.LINK” is set when this unit is connected by DENON LINK to a
DENON Blu-ray disc / DVD player (vpage25 “Component equipped
with a DENON LINK connector”).
• For setting DENON LINK 4th, see page 29.
• At time of purchase, the settings of the different input sources are as
shown below.
Input source BD DVD TV
SAT/
CBL
DVR
Default
setting
None
COAX
1
OPT
1
COAX
2
OPT
2
Input source GAME V.AUX
DOCK
CD
SIRIUS
Default
setting
None None None None None

Denon AVR-A100 Specifications

General

Impedance	4 Ω
Sensitivity	102 dB
Output level	150 mV
Receiver type	Surround
Frequency range	10 - 100000 Hz
Input sensitivity	200 mV
Audio output channels	9.2 channels
Total Harmonic Distortion (THD)	0.05 %
Dynamic power per channel (4 Ohm)	220 W
Dynamic power per channel (8 Ohm)	150 W
Power output per channel (1KHz@6 Ohm)	170 W
Power output per channel (20-20KHz@8 Ohm)	140 W
HDMI in	7
Audio (L/R) in	9
Composite video in	5
Digital audio optical in	2
Ethernet LAN (RJ-45) ports	1
Component video (YPbPr/YCbCr) in	3
AirPlay	Yes
Display	-
HDMI version	1.4a
Product color	Black
Audio decoders	DTS-HD, Dolby TrueHD
Handheld remote control	No
Apple docking compatibility	Not supported
AC input voltage	120 V
AC input frequency	60 Hz
Power consumption (standby)	0.1 W
Power consumption (typical)	780 W
Connectivity technology	Wired
Speakers connectivity type	RCA
Audio (L/R) out	11
AM band range	520 - 1710 kHz
FM band range	87.5 - 107.9 MHz
Supported radio bands	AM, FM
Internet radio services supported	SIRIUS Internet Radio

Weight and Dimensions

Depth	414 mm
Width	434 mm
Height	171 mm
Weight	18500 g
