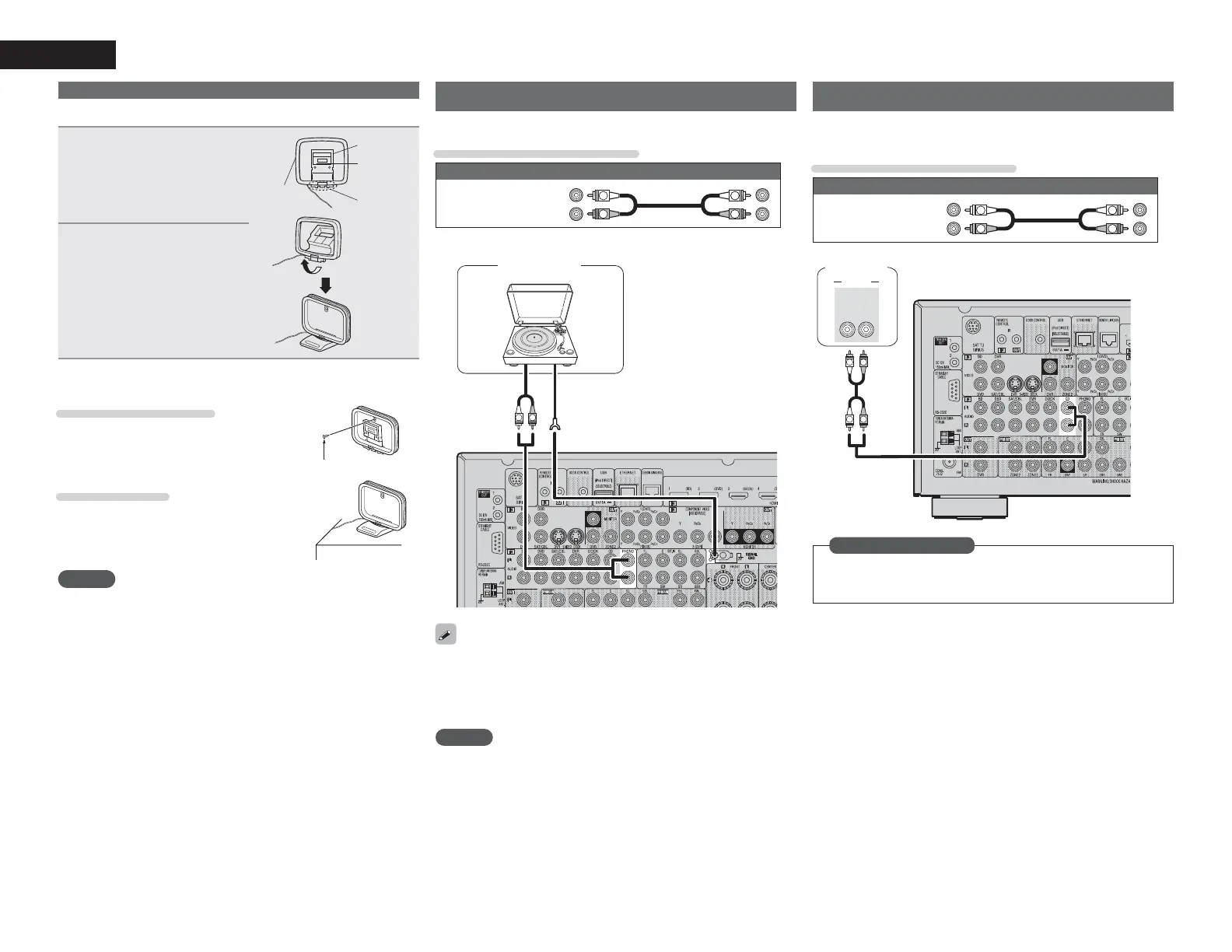

Connecting a CD player
• You can enjoy CD sound.
• Select the connector to use and connect the device.
Cables used for connections
Audio cable (sold separately)
Audio cable
(White)
(Red)
R
L
R
L
R
L
R
L
"6%*0
"6%*0
3-
065
CD player
Set this to change the digital input connector to which the input
source is assigned.
“Input Assign” (vpage82)
in Set as Necessary
Connecting a record player
You can enjoy playing records.
Cables used for connections
Audio cable (sold separately)
Audio cable
(White)
(Red)
R
L
R
L
(/%
"6%*0
065
R
L
Turntable
(MM cartridge)
• This unit is compatible with record players with an MM cartridge.
When you connect to a record player with an MC cartridge, use a
commercially available MC head amp or a step-up transformer.
• When you increase the volume without connecting the record
player, there may be “booming” noise from the speakers.
NOTE
The SIGNAL GND terminal of this unit is not a safety ground
connection. Connect it to reduce noise when noise is excessive.
Note that depending on the record player, connecting the ground line
may have the reverse effect of increasing noise. In this case, it is not
necessary to connect the ground line.
n AM loop antenna assembly
1
3XWWKHVWDQGVHFWLRQ
WKURXJKWKHERWWRPRI
WKHORRSDQWHQQDIURP
WKHUHDUDQGEHQGLW
IRUZDUG
Stand
Square
hole
Projecting
part
Loop
antenna
2
,QVHUWWKHSURMHFWLQJ
SDUWLQWRWKHVTXDUHKROH
LQWKHVWDQG
n Using the AM loop antenna
Suspending on a wall
Suspend directly on a wall without assembling.
Nail, tack, etc.
Standing alone
Use the procedure shown above to assemble.
NOTE
• Do not connect two FM antennas simultaneously.
• Even if an external AM antenna is used, do not disconnect the AM
loop antenna.
• Make sure the AM loop antenna lead terminals do not touch metal
parts of the panel.
• If the signal has noise interference, connect the ground terminal
(GND) to reduce noise.
• If you are unable to receive a good broadcast signal, we recommend
installing an outdoor antenna. For details, inquire at the retail store
where you purchased the unit.
Connecting an antenna
