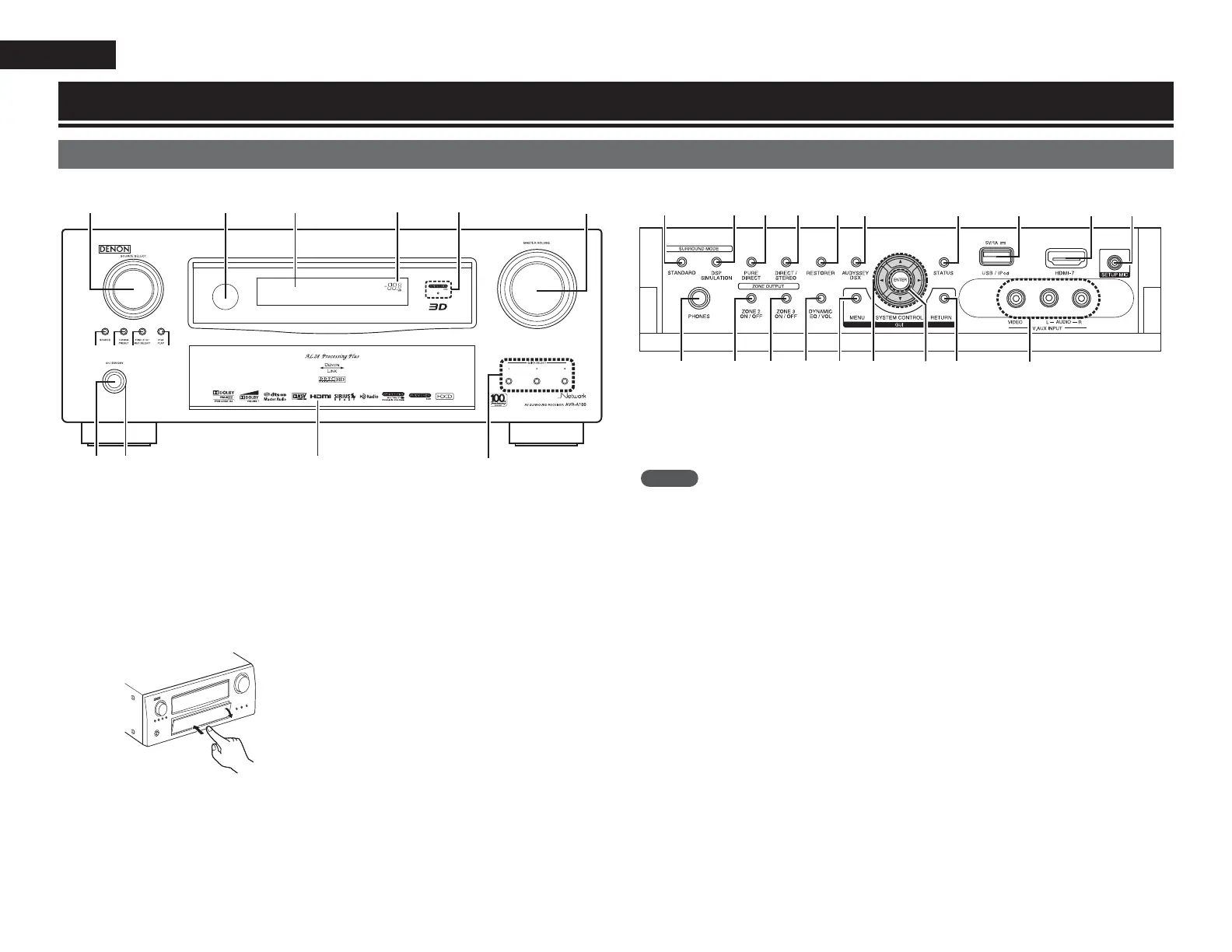

Front panel
For buttons not explained here, see the page indicated in parentheses ( ).
qw e
tioQ0
Q3 Q4Q2Q1
uy
r
q
Power operation button
(ON/STANDBY) ······································ (7, 13)
Turns power to this unit on and off (standby).
w Power indicator ·········································· (13)
e Door
When you are using buttons and/or terminals
behind the door, press the bottom of the door
to open it. When not using buttons and/or
terminals behind the door, close it. Be careful
not to catch your fingers when closing the door.
r QUICK SELECT buttons ····························· (67)
t MASTER VOLUME control knob ··············· (28)
y AUDYSSEY DSX™ indicator ····················· (90)
u Master volume indicator
i Display ················································· (77, 121)
o Remote control sensor ···························· (124)
Q0 SOURCE SELECT knob ······························ (28)
Q1 SOURCE button ·········································· (28)
Q2 TUNING PRESET button ······················ (34, 36)
Q3 ZONE2/3 / REC SELECT button ·········· (67, 73)
Q4 iPod PLAY button ······································· (33)
Part names and functions
GWith the door openH
W3
Q5
Q6
Q7
Q8
Q9 W2
W1W0
W4
W8
E3
W6W7
E1E2
W9
E0
W5
Q5 Headphones jack
When the headphones are plugged into this
jack, audio will no longer be output from the
connected speakers or from the PRE OUT
connectors.
NOTE
To prevent hearing loss, do not raise the volume
level excessively when using headphones.
Q6 ZONE2 ON/OFF button ······························ (73)
Q7 ZONE3 ON/OFF button ······························ (73)
Q8 DYNAMIC EQ
®
/DYNAMIC VOLUME
®
button (DYNAMIC EQ/VOL) ················ (89, 90)
Q9 MENU button ·············································· (80)
W0 Cursor buttons (uio p) ·················· (76 – 80)
W1 ENTER button ····································· (77 – 80)
W2 RETURN button ·································· (77 – 80)
W3 V.AUX INPUT connectors ·························· (21)
W4 SETUP MIC jack ······································ (9, 63)
W5 HDMI IN connector ····································· (17)
W6 USB/iPod port ············································ (22)
W7 STATUS button ·································· (31, 107)
W8 AUDYSSEY DSX button ···························· (90)
W9 RESTORER button ······································ (92)
E0 DIRECT/STEREO button ···························· (52)
E1 PURE DIRECT button ································· (52)
E2 DSP SIMULATION button ·························· (52)
E3 STANDARD button ······························· (50, 51)

Denon AVR-A100 Specifications

General

Impedance	4 Ω
Sensitivity	102 dB
Output level	150 mV
Receiver type	Surround
Frequency range	10 - 100000 Hz
Input sensitivity	200 mV
Audio output channels	9.2 channels
Total Harmonic Distortion (THD)	0.05 %
Dynamic power per channel (4 Ohm)	220 W
Dynamic power per channel (8 Ohm)	150 W
Power output per channel (1KHz@6 Ohm)	170 W
Power output per channel (20-20KHz@8 Ohm)	140 W
HDMI in	7
Audio (L/R) in	9
Composite video in	5
Digital audio optical in	2
Ethernet LAN (RJ-45) ports	1
Component video (YPbPr/YCbCr) in	3
AirPlay	Yes
Display	-
HDMI version	1.4a
Product color	Black
Audio decoders	DTS-HD, Dolby TrueHD
Handheld remote control	No
Apple docking compatibility	Not supported
AC input voltage	120 V
AC input frequency	60 Hz
Power consumption (standby)	0.1 W
Power consumption (typical)	780 W
Connectivity technology	Wired
Speakers connectivity type	RCA
Audio (L/R) out	11
AM band range	520 - 1710 kHz
FM band range	87.5 - 107.9 MHz
Supported radio bands	AM, FM
Internet radio services supported	SIRIUS Internet Radio

Weight and Dimensions

Depth	414 mm
Width	434 mm
Height	171 mm
Weight	18500 g
