Denon AVR-A100 User Manual

122
ENGLISH

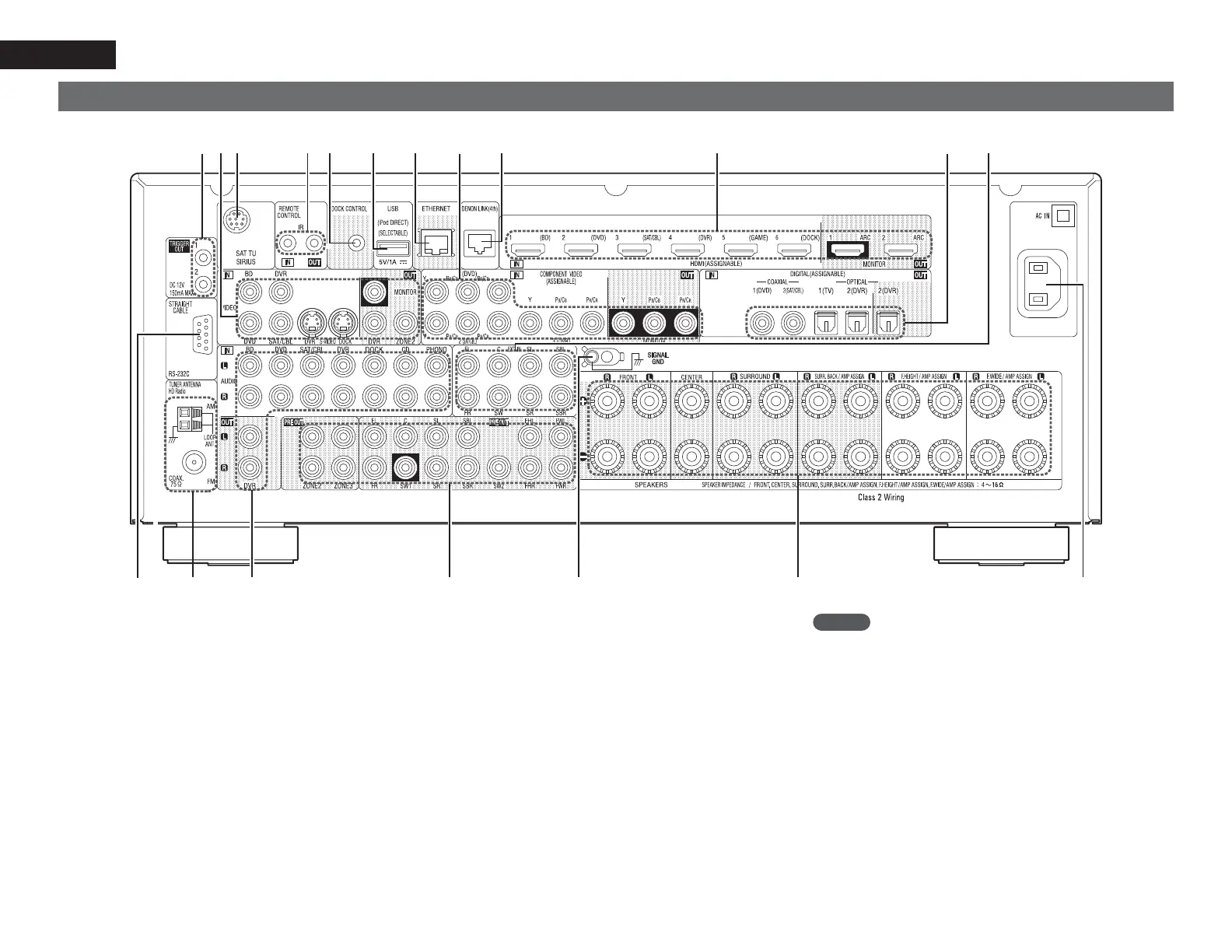

Rear panel
See the page indicated in parentheses ( ).
Q0
qw
ert uy
Q2
Q1
oi
Q9 Q8 Q7 Q6 Q3Q4Q5
q RS-232C connector ·································································· (27)
w HD Radio antenna terminals ·················································· (23)
e Analog audio connectors ·····································(18 – 21, 24, 25)
r PRE OUT connectors ········································(6, 25, 56 – 62, 72)
t SIGNAL GND terminal ···························································· (24)
y Speaker terminals ····················································(5, 6, 56 – 62)
u AC inlet (AC IN) ·········································································· (6)
i EXT.IN connectors ··································································· (25)
o Digital audio connectors ··················································(18 – 20)
Q0 HDMI connectors ································································· (6, 17)
Q1 DENON LINK connector ·························································· (25)
Q2 COMPONENT VIDEO connectors ····································(18 – 20)
Q3 ETHERNET connector ····························································· (26)
Q4 USB/iPod port ········································································· (22)
Q5 DOCK CONTROL jack ······························································ (21)
Q6 REMOTE CONTROL jacks ······················································· (27)
Q7 SIRIUS connector ···································································· (23)
Q8 S-VIDEO/VIDEO connectors ············································(18 – 21)
Q9 TRIGGER OUT jacks ································································ (27)
NOTE
Do not touch the inner pins of the connectors on the rear panel.
Electrostatic discharge may cause permanent damage to the unit.

Denon AVR-A100 Specifications

General

Impedance	4 Ω
Sensitivity	102 dB
Output level	150 mV
Receiver type	Surround
Frequency range	10 - 100000 Hz
Input sensitivity	200 mV
Audio output channels	9.2 channels
Total Harmonic Distortion (THD)	0.05 %
Dynamic power per channel (4 Ohm)	220 W
Dynamic power per channel (8 Ohm)	150 W
Power output per channel (1KHz@6 Ohm)	170 W
Power output per channel (20-20KHz@8 Ohm)	140 W
HDMI in	7
Audio (L/R) in	9
Composite video in	5
Digital audio optical in	2
Ethernet LAN (RJ-45) ports	1
Component video (YPbPr/YCbCr) in	3
AirPlay	Yes
Display	-
HDMI version	1.4a
Product color	Black
Audio decoders	DTS-HD, Dolby TrueHD
Handheld remote control	No
Apple docking compatibility	Not supported
AC input voltage	120 V
AC input frequency	60 Hz
Power consumption (standby)	0.1 W
Power consumption (typical)	780 W
Connectivity technology	Wired
Speakers connectivity type	RCA
Audio (L/R) out	11
AM band range	520 - 1710 kHz
FM band range	87.5 - 107.9 MHz
Supported radio bands	AM, FM
Internet radio services supported	SIRIUS Internet Radio

Weight and Dimensions

Depth	414 mm
Width	434 mm
Height	171 mm
Weight	18500 g
