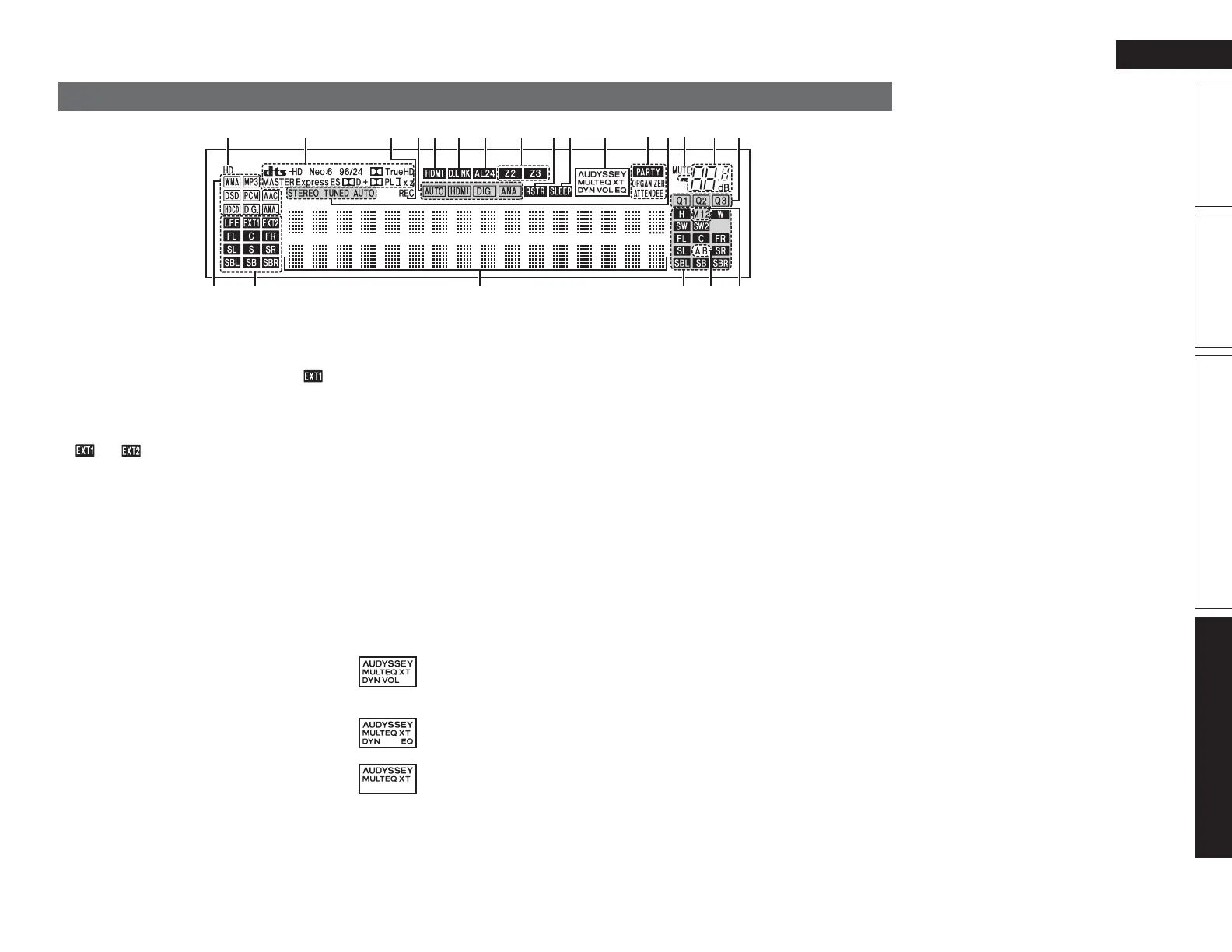

Input signal indicators
w Input signal channel indicators
These light when digital signals are input.
When playing HD Audio sources, the
indicator lights when a signal from an extension
channel (a channel other than the front, center,
surround, surround back or LFE channel) is input.
If there are two or more extension channels, the
and indicators light.
e Information display
The input source name, surround mode, setting
values and other information are displayed here.
r Output signal channel indicators
Lights when audio signals are being output from
the speakers.
t Front speaker indicator
This lights according to the setting of the front A
and B speakers.
y Monitor output indicator
These light according to the HDMI monitor
output setting.
When set to “Auto (Dual)”, the indicators light
according to connection status.
u QUICK SELECT indicators
The indicator corresponding to the memory
for which Quick Select function is set, lights
(vpage67 “Quick select function”).
i Master volume indicator
o MUTE indicator
This lights when the mute mode is select
(vpage29).
Q0 Tuner reception mode indicators
These light according to the reception conditions
when the input source is set to “HD Radio”.
STEREO : In the FM mode, this light when
receiving stereo broadcasts.
TUNED : Lights when the broadcast is properly
tuned in.
AUTO : This light when in the auto tuning mode.
Q1 PARTY indicators
These light during party mode (vpage68 “Party
mode function”).
• ORGANIZER
This lights to indicate that party mode has
started as Organizer.
• ATTENDEE
This lights to indicate that party mode has
started as Attendee.
Q2 Audyssey indicators
Lighting is as follows, depending on the setting
of “MultEQ
®
XT 32” (vpage 89), “Dynamic
EQ
®
” (vpage 89) and “Dynamic Volume
®
”
(vpage90).
When “MultEQ
XT 32” and
“Dynamic EQ” are “ON” and
“Dynamic Volume” is “Midnight”,
“Evening” or “Day”.
When “MultEQ
XT 32” and
“Dynamic EQ” are “ON” and
“Dynamic Volume” are “OFF”.
When “MultEQ
XT 32” is “ON”,
“Dynamic EQ” and “Dynamic
Volume” are “OFF”.
Q3 Sleep timer indicator
This lights when the sleep mode is selected
(vpage66).
Q4 RESTORER indicator
This lights when the RESTORER mode is
selected (vpage92).
Q5 Multi-zone indicators
This lights up when ZONE2, ZONE3 (separate
room) power is turned on (vpage73).
Q6 AL24 indicator
This lights when AL24 Processing Plus
(vpage132) is activated.
Q7 DENON LINK indicator
This lights when playing using DENON LINK
connections (vpage 29 “Playing Super Audio
CD”).
Q8 HDMI indicator
This lights when playing using HDMI connections.
Q9 Input mode indicators
Set the audio input modes for the different input
sources (vpage84).
W0 Recording output source indicator
This lights when the REC OUT mode is selected.
W1 Decoder indicators
These light when the respective decoders are
operating.
W2 HD indicator
This light during HD Radio reception.
