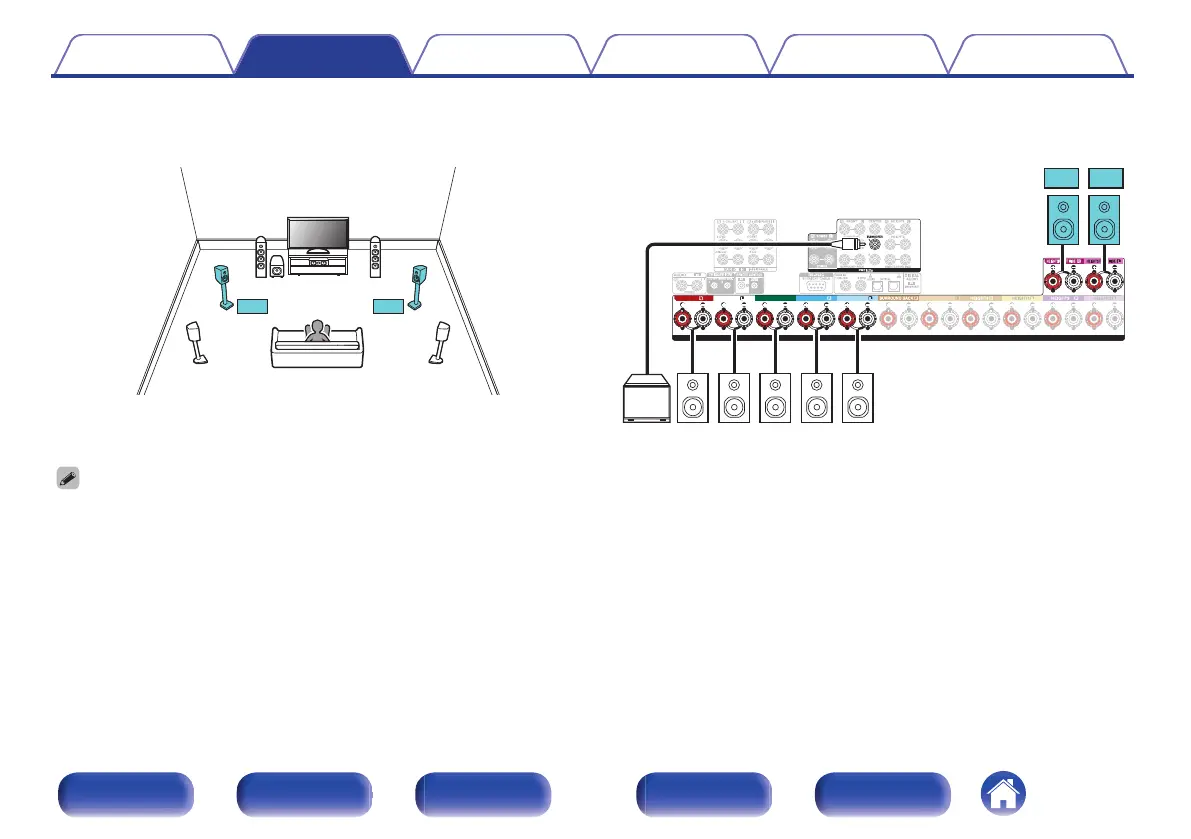

Example connections when using front wide speakers

This 7.1-channel surround system is the same as a basic 5.1-channel system but with front wide speakers.

SW C

FWL FWR

FRONT FRONT

CENTER

SURROUND SURROUND

ASSIGNABLE ASSIGNABLE

ASSIGNABLE

SURROUND BACK

SPEAKERS

FR FL C SR SL

FWR

FWL

Set “Floor” to “5ch & FW” in the menu when connecting in this configuration. (v p. 240)
