Example connections when using height speakers

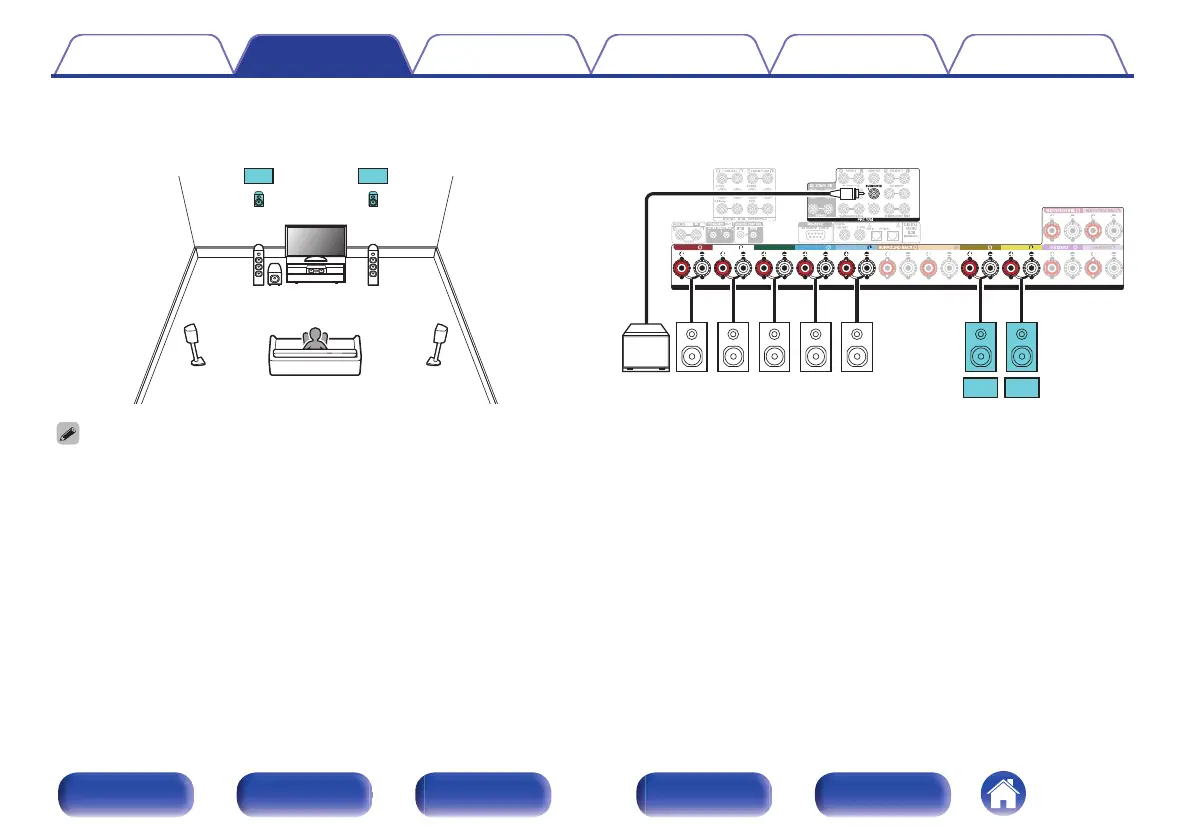

This 7.1-channel surround system is the same as a basic 5.1-channel system but with front height speakers.
.
FL
SW C
SL
FHR
FR
SR
FHL
.
ASSIGNABLE
ASSIGNABLE
ASSIGNABLE
ASSIGNABLE
HEIGHT1 HEIGHT1
FRONT FRONT
CENTER
SURROUND SURROUND
SURROUND BACK
SPEAKERS
FHR FHL
FR FL C SR SL
SW
0
Set “Floor” to “5ch” and “Height Sp” to “2ch” in the menu when connecting in this configuration. (v p. 240, 241)
0
The rear height speakers can be connected instead of the front height speakers. In this case, set the height speakers to be connected under “Height” - “Layout” in the menu.
(v p. 242)
