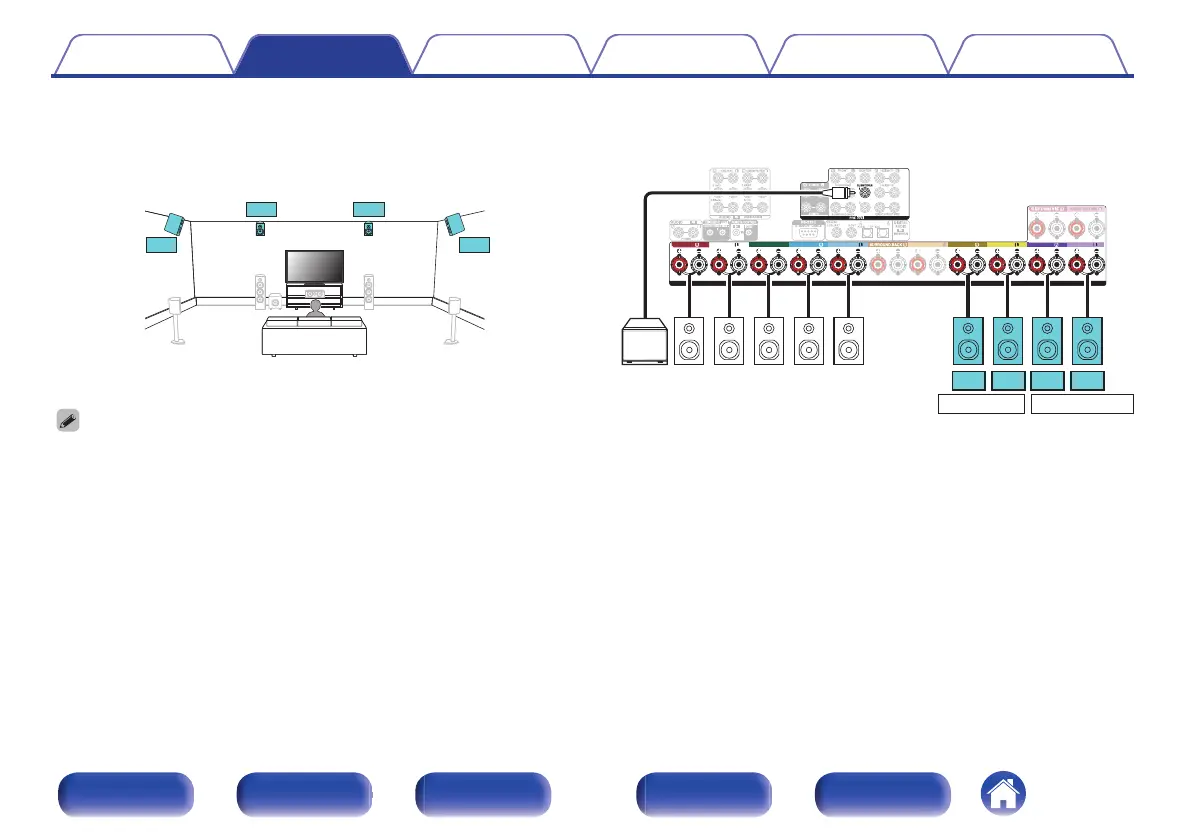

Example connection for the Auro-3D 9.1-channel system
This speaker configuration is optimized for Auro-3D playback.
.
FL FR
SW
SL SR
C
FHL FHR
SHL SHR
0
Set “Floor” to “5ch” or set “5ch & SB” and “Height Sp” to “4ch” in the menu when
connecting in this configuration. (v p. 240, 241)
Next, set “Height” - “Front Layout” to “Front Height & Surr. Height”. (v p. 243)
.
ASSIGNABLE ASSIGNABLE
FRONT FRONT
CENTER
SURROUND SURROUND
HEIGHT1 HEIGHT1 HEIGHT2 HEIGHT2
ASSIGNABLE
ASSIGNABLE
SURROUND BACK
SPEAKERS
SHR SHLFHR FHL
SW
FR FL C SR SL
HEIGHT 1
z
1
HEIGHT 2
z
1
z
2
z1
You can change the combination of the HEIGHT1 and HEIGHT2 channels in
the settings. (v p. 70)
z2
For the best Auro-3D experience Surround Height speakers are
recommended, however you may substitute Rear Height speakers from a
Dolby Atmos speaker setup in place of Surround Height speakers.
