Denon AVR-X6700H - Connecting a DVD Player or Blu-Ray Disc Player

To Next Page

To Previous Page

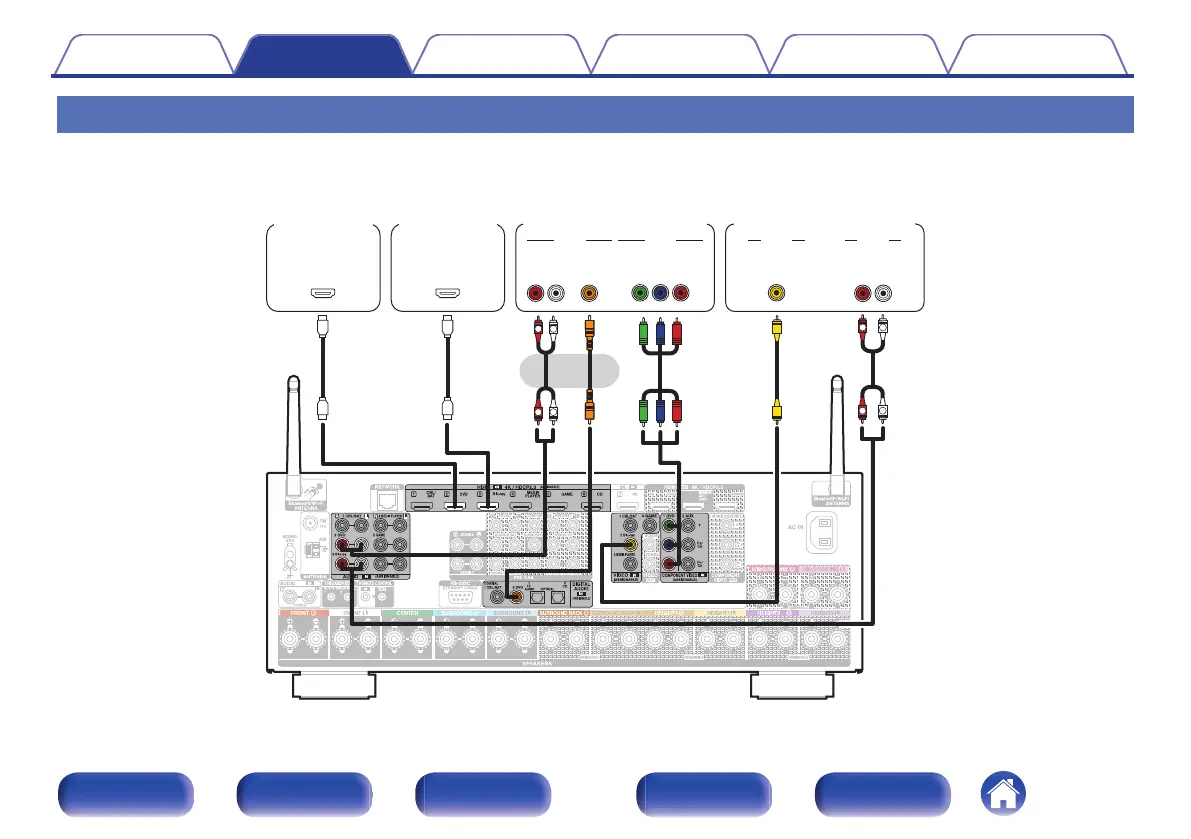

Connecting a DVD player or Blu-ray Disc player

This explanation uses the connection with a DVD player or Blu-ray Disc player as an example.

Select the input connectors on this unit to match the connectors on the device that you want to connect to.

OUT

HDMI

DVD player

OUT

HDMI

Blu-ray Disc

player

OUT

COAXIAL

AUDIO

OUT

VIDEO

COMPONENT VIDEO

B PR

OUT

(HDMI incompatible device)

DVD player

AUDIOVIDEO

AUDIO

OUT

VIDEO

(HDMI incompatible device)

Blu-ray Disc player
