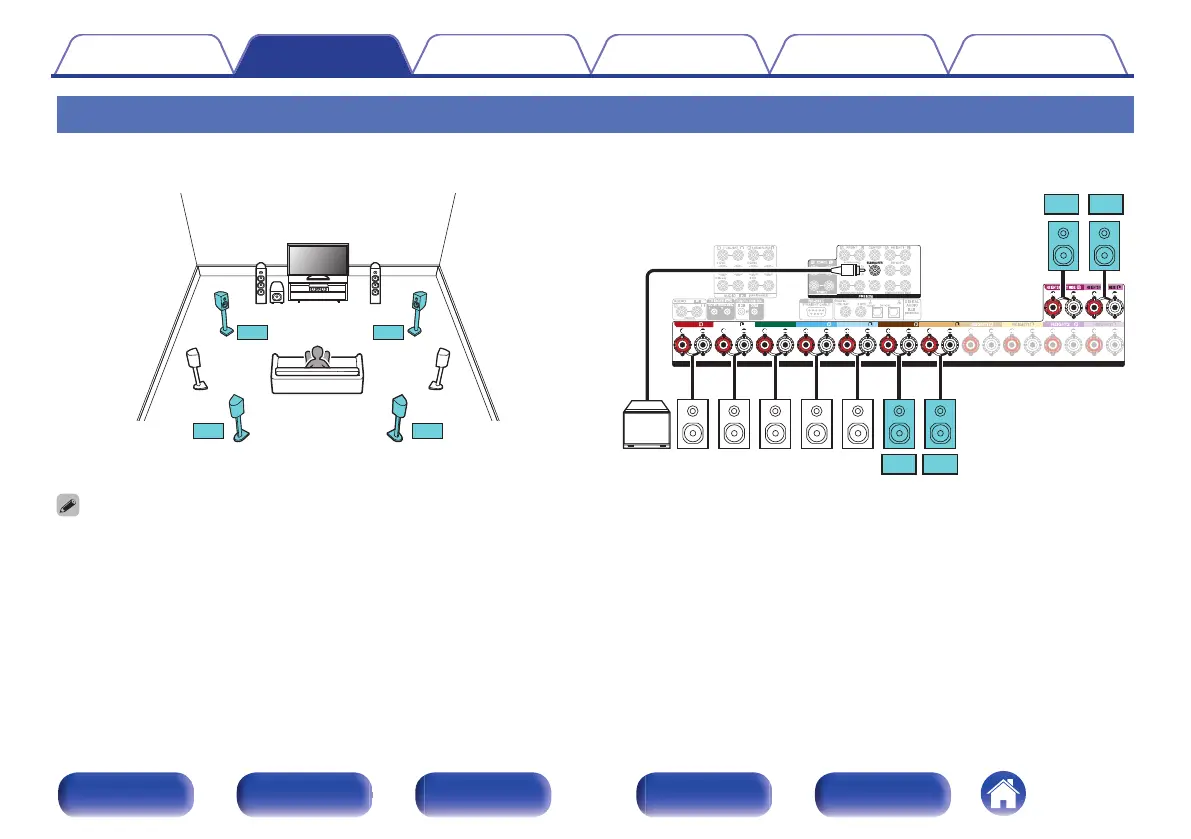

Connecting 9.1-channel speakers

Example connection when using surround back and front wide speakers

SW C

SBRSBL

FWL FWR

FRONT FRONT

CENTER

SURROUND SURROUND

ASSIGNABLE

SURROUND BACK SURROUND BACK

ASSIGNABLE ASSIGNABLE

SPEAKERS

ASSIGNABLE

SBR SBL

FR FL C SR SL

FWR

FWL

Set “Floor” to “5ch & SB & FW” in the menu when connecting in this configuration. (v p. 240)
