Denon AVR-X6700H - Example Connection When Using Two Sets of Dolby Atmos Enabled Speakers

o

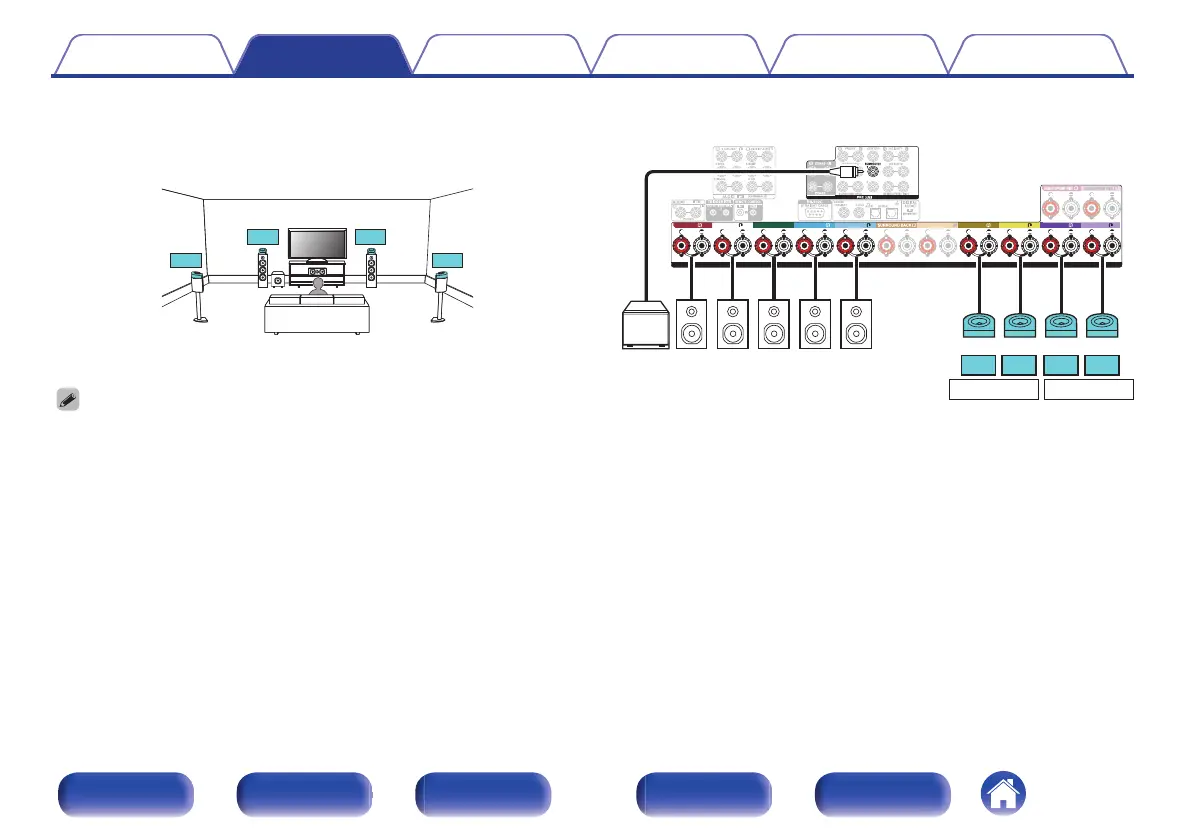

Example connection when using two sets of Dolby Atmos Enabled speakers
.
C
SW
SL SR
FL
FR
FDL FDR
SDL SDR
0
Set “Floor” to “5ch” or set “5ch & SB” and “Dolby Sp” to “4ch” in the menu when
connecting in this configuration. (v p. 240, 241)
.
ASSIGNABLE ASSIGNABLE
FRONT FRONT
CENTER
SURROUND SURROUND
HEIGHT1 HEIGHT1 HEIGHT2 HEIGHT2
ASSIGNABLE
ASSIGNABLE
SURROUND BACK
SPEAKERS
HEIGHT 1
z
HEIGHT 2
z
SW
FR FL C SR SL
SDR SDLFDR FDL
z
You can change the combination of the HEIGHT1 and HEIGHT2 channels in the
settings. (v p. 70)
