Example connections when using Dolby Atmos Enabled speakers

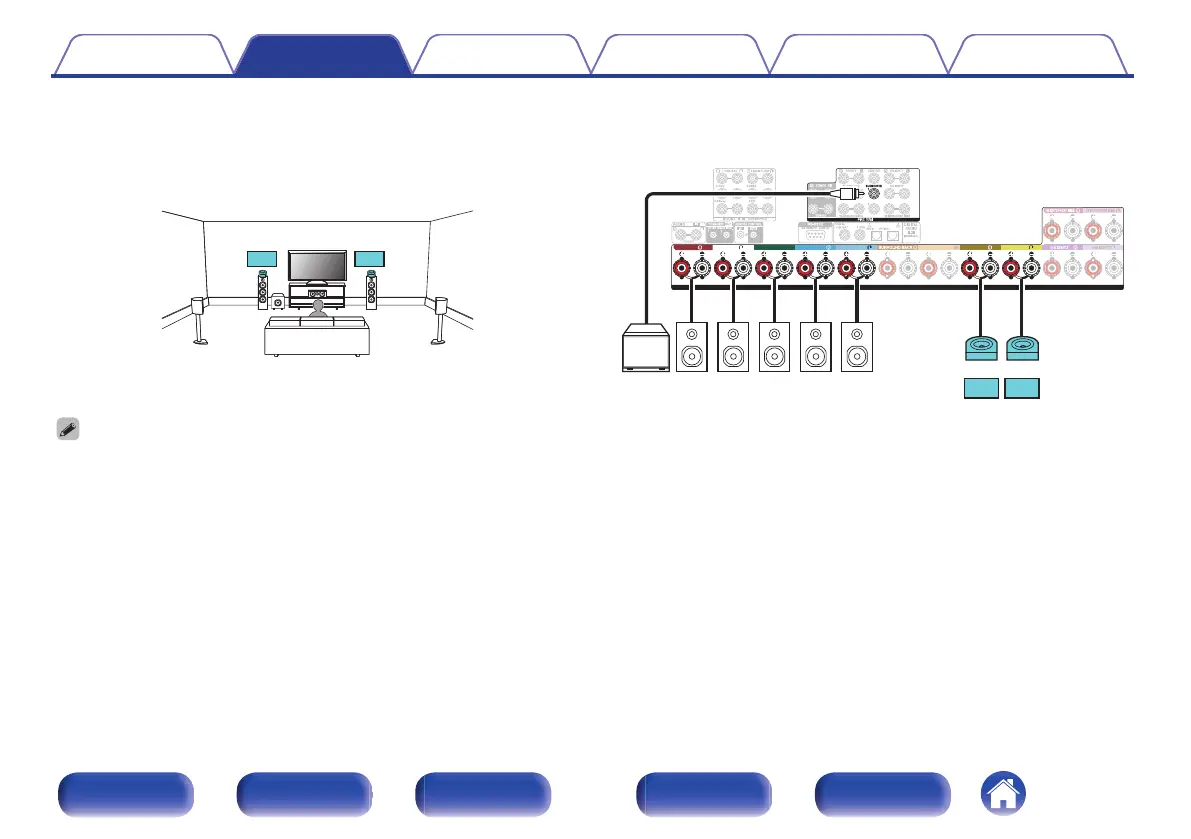

This 7.1-channel surround system is the same as a basic 5.1-channel system but with front Dolby speakers.
.
C
SWFL FR
SL SR
FDL FDR
.
ASSIGNABLE
ASSIGNABLE
ASSIGNABLE
ASSIGNABLE
HEIGHT1 HEIGHT1
FRONT FRONT
CENTER
SURROUND SURROUND
SURROUND BACK
SPEAKERS
FDR FDL
FR FL C SR SL
SW
0
Set “Floor” to “5ch” and “Dolby Sp” to “2ch” in the menu when connecting in this configuration. (v p. 240, 241)
0
The surround Dolby or back Dolby speakers can be connected instead of the front Dolby speakers. In this case, set the Dolby Atmos Enabled speakers to be connected
under “Height” - “Layout” in the menu. (v p. 242)
