Connecting 13.1-channel speakers
This system, which is based on a 5.1-channel system, plays back up to 13.1-channels at the same time.
o

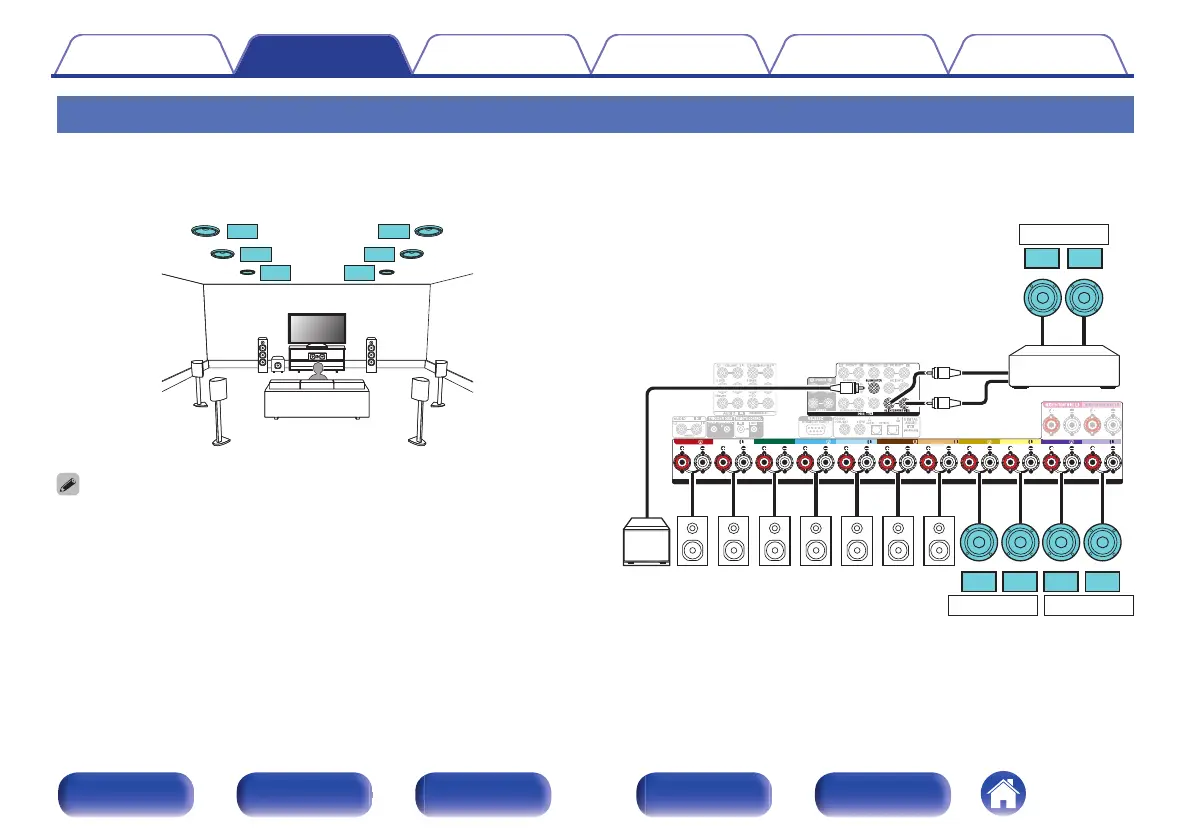

Example connection when using three sets of ceiling speakers
.
C
FL FR
SBL
SBR
SW
RSLS
TML TMR
TRL TRR
TFL TFR
0
Set “Floor” to “5ch & SB” and “Height Sp” to “6ch” in the menu when connecting in
this configuration. (v p. 240, 241)
.
ASSIGNABLE ASSIGNABLE
FRONT FRONT
CENTER
SURROUND SURROUND
HEIGHT1 HEIGHT1 HEIGHT2 HEIGHT2
ASSIGNABLE
SURROUND BACK SURROUND BACK
ASSIGNABLE
SPEAKERS
TRR TRLTFR TFL
HEIGHT 1
z
HEIGHT 2
z
SW
FR FL C SR SL
SBR SBL
Power amplifier
TMR TML
HEIGHT 3
z
z
You can change the combination of the HEIGHT1, HEIGHT2 and HEIGHT3
channels in the settings. (v p. 70)
