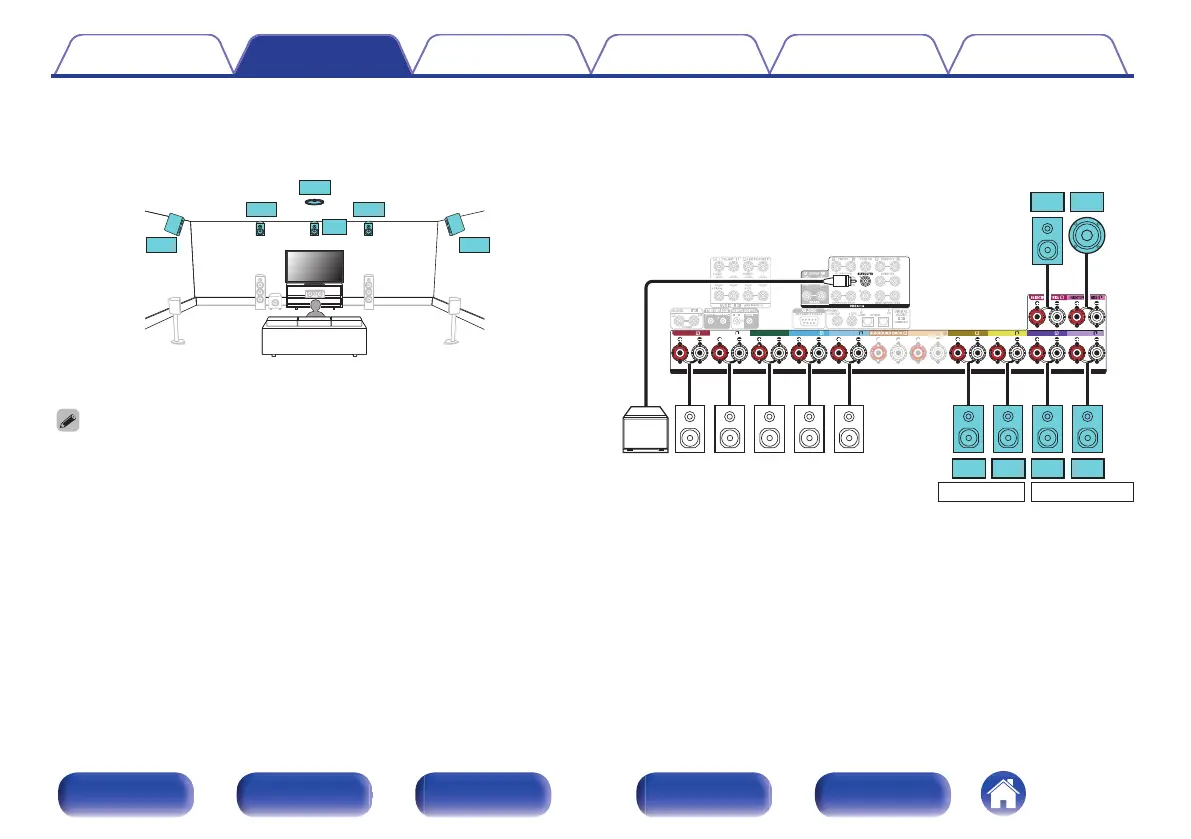

Example connection for the Auro-3D 11.1-channel system
This speaker configuration is optimized for Auro-3D playback.
.
FL FR
SW
SL SR
C
FHL FHR
SHL SHR
TS
CH
0
Set “Height” - “Height Sp” to “6ch” in the menu when connecting in this
configuration. (v p. 241)
Next, set “Height” - “Front Layout” to “Front Height & Center Height” and “Middle
Layout” to “Surr. Height & Top Surround”. (v p. 243)
.
ASSIGNABLE ASSIGNABLE
FRONT FRONT
CENTER
SURROUND SURROUND
HEIGHT1 HEIGHT1 HEIGHT2 HEIGHT2
ASSIGNABLE
ASSIGNABLE
SURROUND BACK
SPEAKERS
SHR SHL
TS
FHR FHL
HEIGHT 1
z
1
CH
SW
FR FL C SR SL
HEIGHT 2
z
1
z
2
z1
You can change the combination of the HEIGHT1 and HEIGHT2 channels in
the settings. (v p. 70)
z2
For the best Auro-3D experience Surround Height speakers are
recommended, however you may substitute Rear Height speakers from a
Dolby Atmos speaker setup in place of Surround Height speakers.
