Denon AVR-X6700H - Example Connection for the Auro-3 D 13.1-Channel System

o

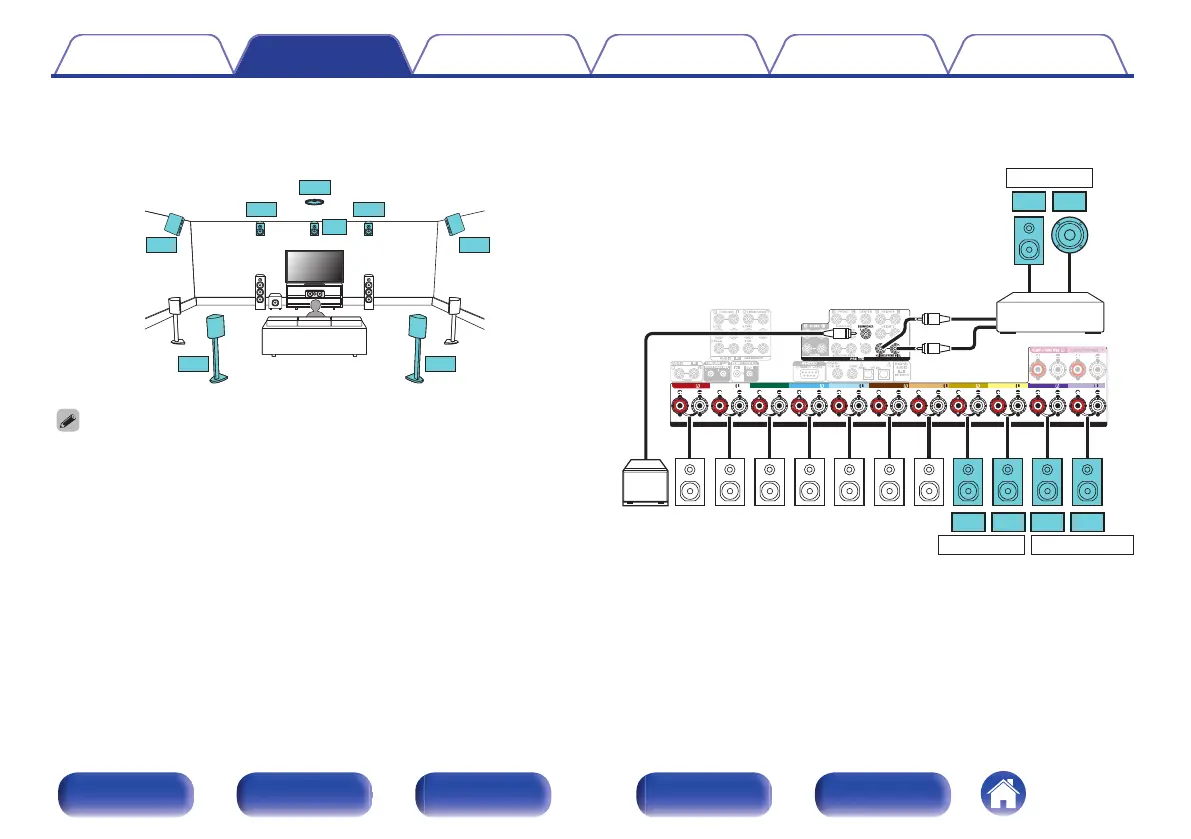

Example connection for the Auro-3D 13.1-channel system
This speaker configuration is optimized for Auro-3D playback.
.
FL FR
SW
SRSL
C
FHL FHR
CH
SHL SHR
TS
SBRSBL
0
Set “Floor” to “5ch & SB” and “Height Sp” to “6ch” in the menu when connecting in
this configuration. (v p. 240, 241)
Next, set “Height” - “Front Layout” to “Front Height & Center Height” and “Middle
Layout” to “Surr. Height & Top Surround”. (v p. 243)
.
ASSIGNABLE ASSIGNABLE
FRONT FRONT
CENTER
SURROUND SURROUND
HEIGHT1 HEIGHT1 HEIGHT2 HEIGHT2
ASSIGNABLE
SURROUND BACK SURROUND BACK
ASSIGNABLE
SPEAKERS
SW
FR FL C SR SL
SBR SBL
SHR SHLFHR FHL
HEIGHT 1
z
1
HEIGHT 2
z
1
z
2
Power amplifier
TSCH
HEIGHT 3
z
1
z1
You can change the combination of the HEIGHT1, HEIGHT2 and HEIGHT3
channels in the settings. (v p. 70)
z2
For the best Auro-3D experience Surround Height speakers are
recommended, however you may substitute Rear Height speakers from a
Dolby Atmos speaker setup in place of Surround Height speakers.
