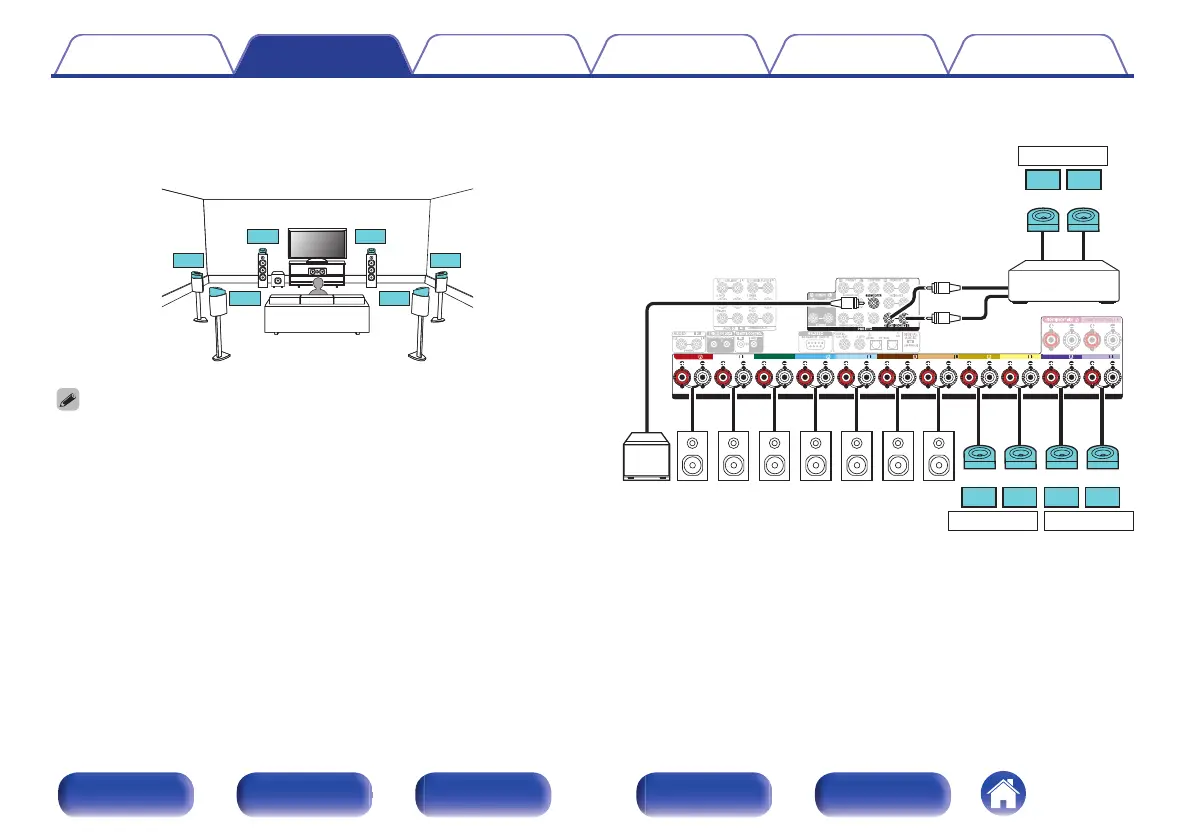

Example connection when using three sets of Dolby Atmos Enabled speakers
.
C
SBL
SBR
SW
SRSL
FL
FR
FDL FDR
BDL
SDL SDR
BDR
0
Set “Floor” to “5ch & SB” and “Dolby Sp” to “6ch” in the menu when connecting in
this configuration. (v p. 240, 241)
.
ASSIGNABLE ASSIGNABLE
FRONT FRONT
CENTER
SURROUND SURROUND
HEIGHT1 HEIGHT1 HEIGHT2 HEIGHT2
ASSIGNABLE
SURROUND BACK SURROUND BACK
ASSIGNABLE
SPEAKERS
SW
FR FL C SR SL
SBR SBL
BDR BDLFDR FDL
HEIGHT 1
z
HEIGHT 2
z
Power amplifier
SDR SDL
HEIGHT 3
z
z
You can change the combination of the HEIGHT1, HEIGHT2 and HEIGHT3
channels in the settings. (v p. 70)
