Denon AVR-X6700H - Example Connection When Using One Set of Dolby Atmos Enabled Speakers

o

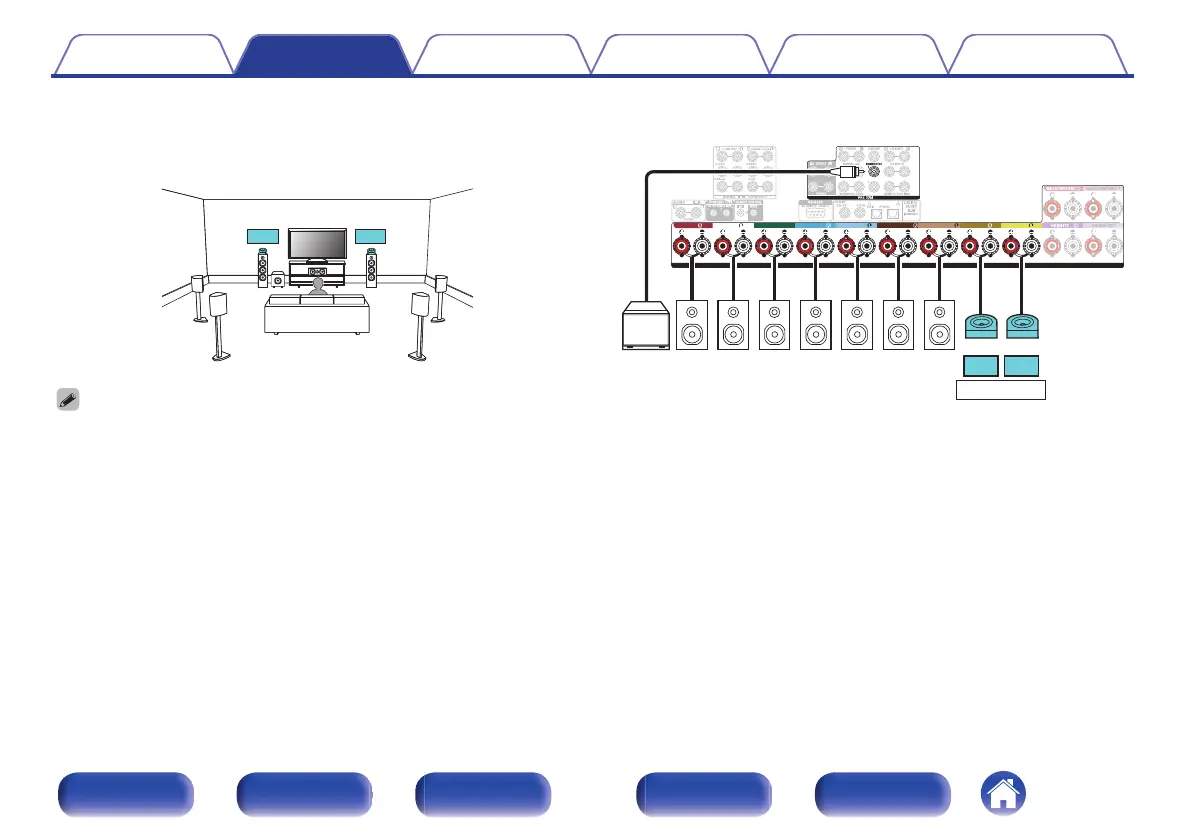

Example connection when using one set of Dolby Atmos Enabled speakers
.
C
SBL
SBR
SW
SL SR
FL
FR
FDL FDR
0
Set “Height” - “Dolby Sp” to “2ch” in the menu when connecting in this
configuration. (v p. 241)
.
ASSIGNABLE
FRONT FRONT
CENTER
SURROUND SURROUND
HEIGHT1 HEIGHT1
ASSIGNABLE
SURROUND BACK SURROUND BACK
ASSIGNABLE
SPEAKERS
ASSIGNABLE
FDR FDL
HEIGHT 1
z
SW
SBR SBL
FR FL C SR SL
z
The surround Dolby or back Dolby speakers can be connected instead of the
front Dolby speakers. In this case, set the Dolby Atmos Enabled speakers to be
connected under “Height” - “Layout” in the menu. (v p. 242)
Contents
Connections Playback Settings Tips Appendix
58
