3.2.13 DEV 13-0321

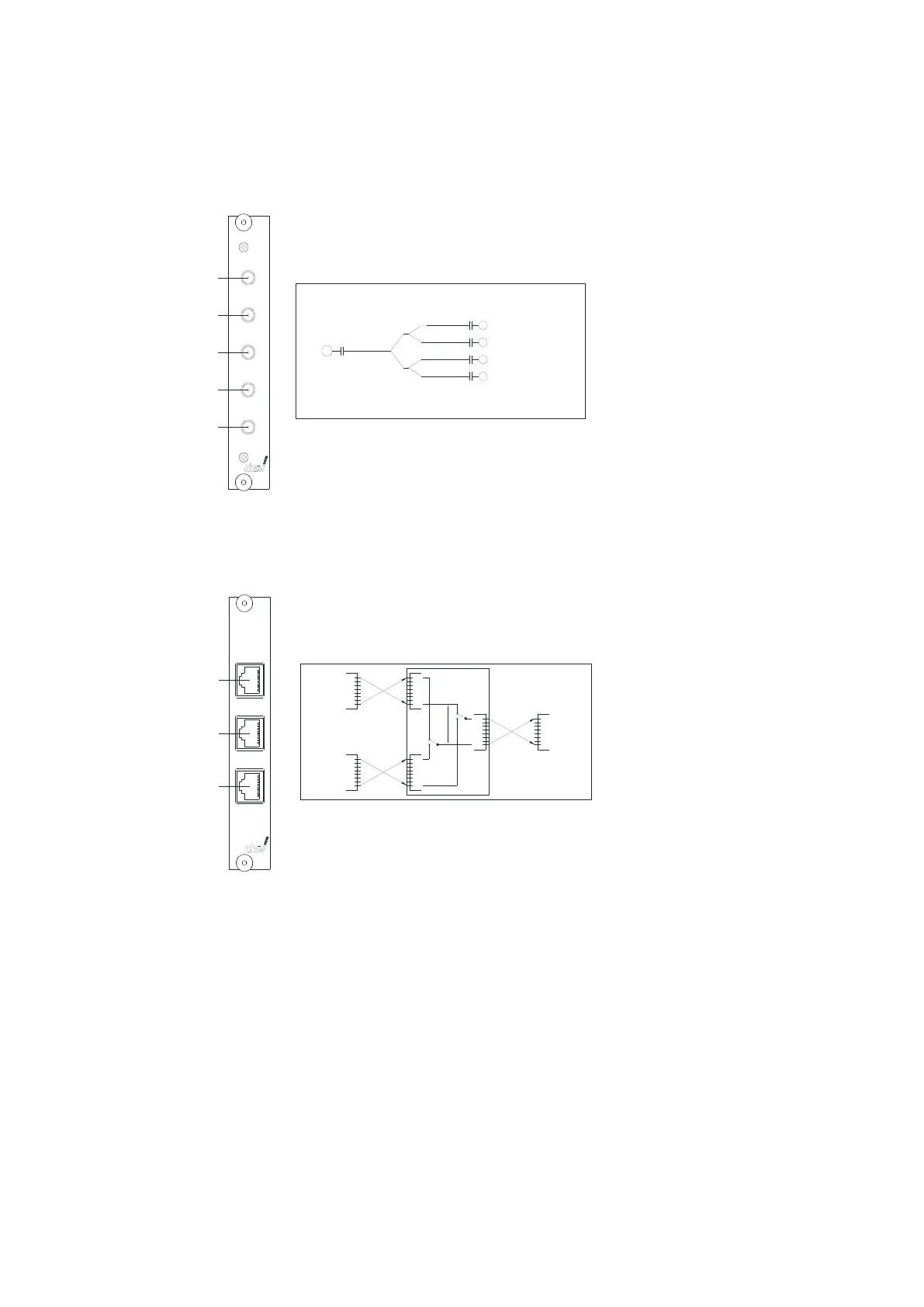

1:4/4:1 Splitter/Combiner Module, Passive; 950…2150 MHz; 50 Ohm, SMA (f)
1
5
4
In
Out 1
Out 2
Out 3
Out 4
3
2
Ou t 1
Ou t 2
In
Ou t 3
Ou t 4
DE V 13-0321
This passive module for splitting or for combining RF signals can be installed in a
DEV 1953 as a supplemental module.
3.2.14 DEV 14-0052
Ethernet 2:1/1:2 Switch Module
1:1 P a tch C able
1
8
LAN 1
LAN 2
W A N
1:1 P a tch C able
1:1 P a tch C able
1
8
1
8
8
1
8
1
8
1
1
2
3
DE V 14-0052
LAN 1
W AN
LAN 2
The module is designed for Ethernet switching applications and is equipped with
three RJ-45 Ethernet connectors in order to select physically one of two routes.
