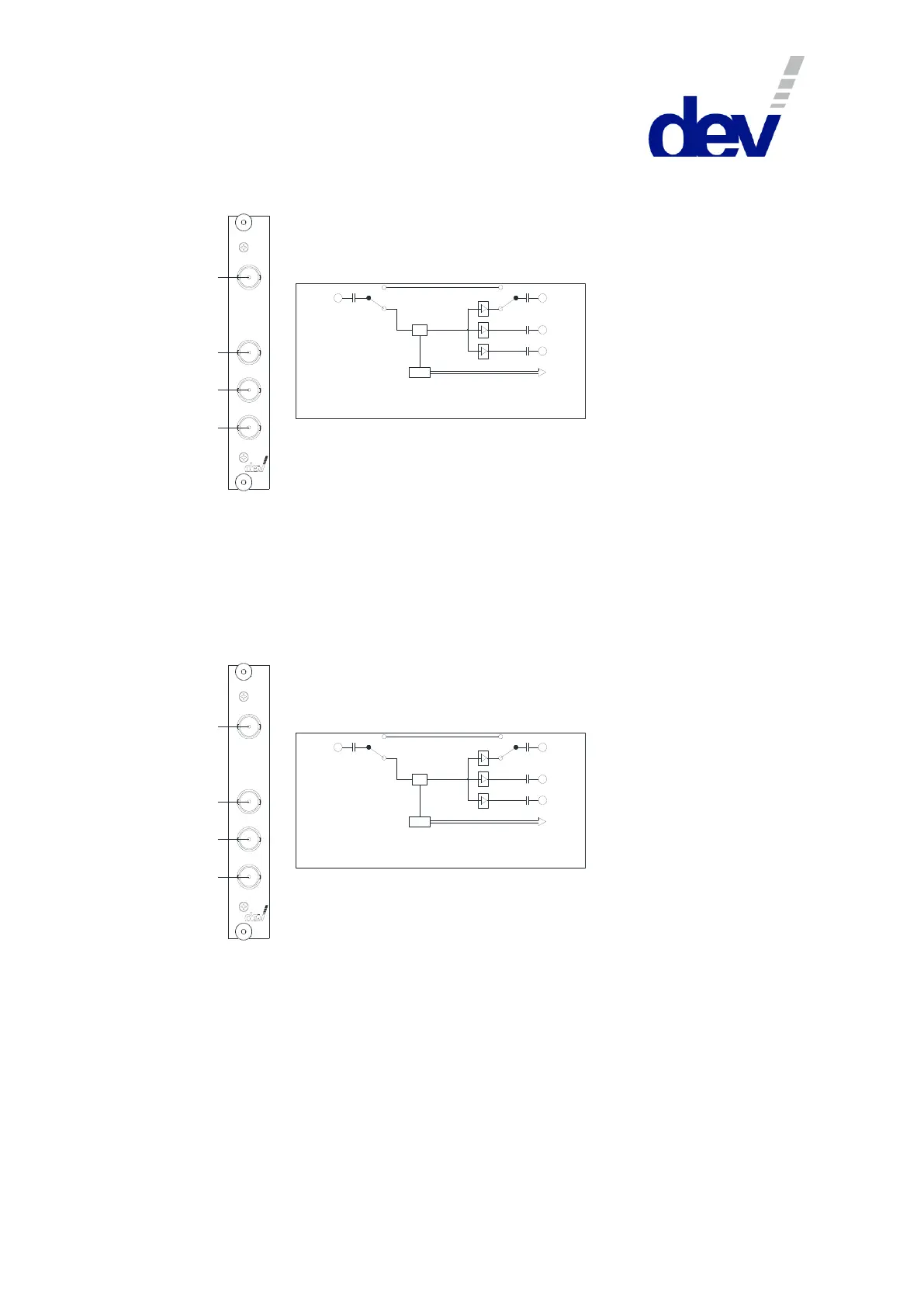

3.2.19 DEV 14-0096
Distribution Amplifier 1:3; ASI / 3G-SDI; 75 Ohm, BNC (f)
1
3
4
Out 1
Pos 0: without electrical p ower
Pos 1: with electrical power
(state show n here)
Out 2
In
Out 2
External
Controller
Logic
CD
1
0 0
1
2
Ou t 1
Ou t 2
Ou t 3
In
DE V 14-0096
The functionality of the module DEV 14-0096 is identical with the module
DEV 14-0092 (please refer to chapter 3.2.17), but the module is designed for
SD-SDI, HD-SDI, and 3G-SDI signals in addition to ASI signals.
Note:
 Output port 1 ("Out 1") delivers an inverted ASI signal!
3.2.20 DEV 14-0103
Distribution Amplifier 1:3; ASI / HD-SDI; 75 Ohm, BNC (f)
1
3
4
Out 1
Pos 0: without electrical p ower
Pos 1: with electrical power
(state show n here)
Out 2
In
Out 2
External
Controller
Logic
CD
1
0 0
1
2
Ou t 1
Ou t 2
Ou t 3
In
DE V 14-0103
The functionality of the module DEV 14-0103 is identical with the module
DEV 14-0092 (please refer to chapter 3.2.17), but the module is designed for
SD-SDI and HD-SDI signals in addition to ASI signals.
Note:
 Output port 1 ("Out 1") delivers an inverted ASI signal!
