Part Names
The following drawings illustrate the parts of your machine referred to
throughout this guide, so please take some time to become familiar with
them.

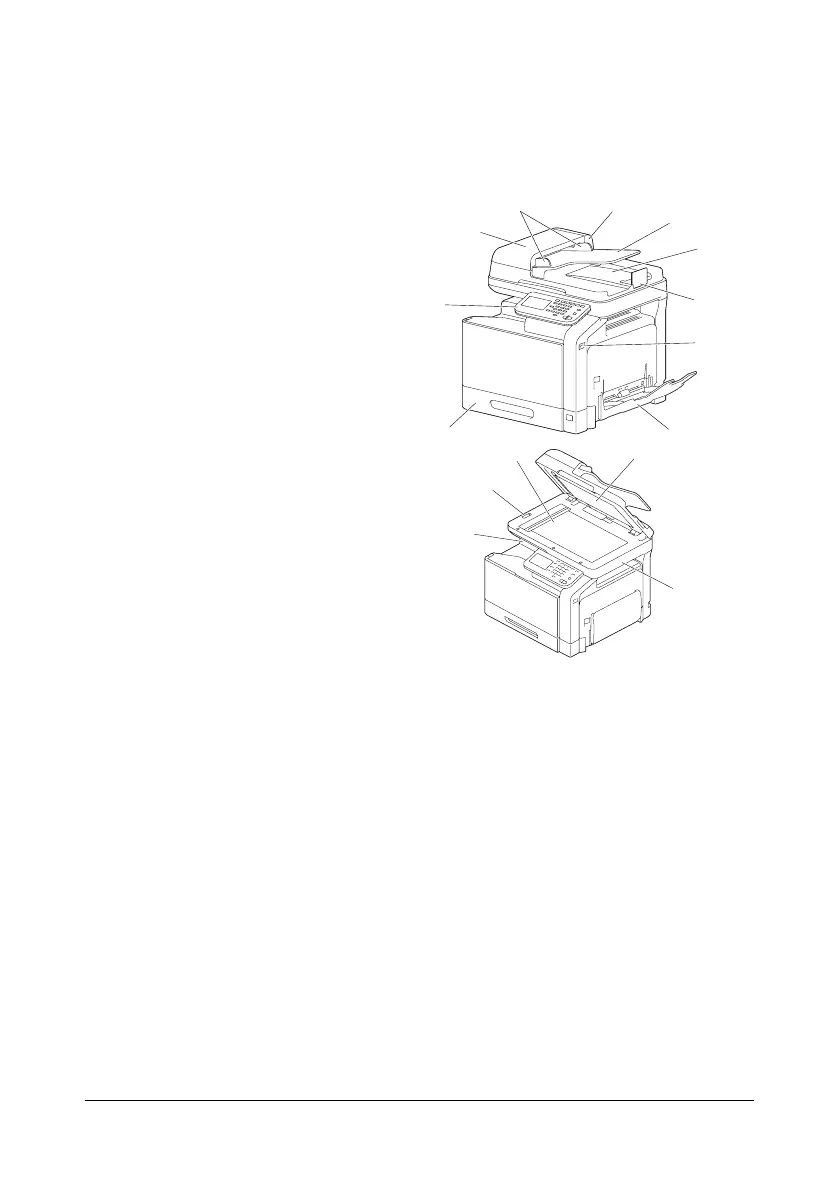

Front View
1—Control panel
2—Automatic Document
Feeder (ADF)
2-a: ADF feed cover
2-b: Document guide
2-c: Document feed tray
2-d: Document output tray
2-e: Document stopper
" Lower the document
stopper when scanning
Legal-size paper with
the ADF.
3—USB HOST port
4—Tray 1 (Manual feed tray)
5—Tray 2
6—Output tray
7—Scanner lock lever
8—Original glass
9—Original cover pad
10—Scanner unit
10
9
6
7
8
4
3
2-e
2
2-c
2-d
5
1
2-a
2-b
