Mixer (Advanced GUI)
The Deviation mixer is modeled after the Er9x implementation. Each output channel is
composed of a series of one or more mixers each of which consists of a single input, an
activation switch, and a function/curve that modifies the mixer output. This is a very
powerful capability, but it is requires a lot of understanding to make full use of. In order
to simplify implementation, there are 3 templates that have been defined to make defining
channels easier.
The number of channels available is dependent on the number of channels selected on the
Model Page (Standard & Advanced GUI). Additionally there are 10 Virtual channels that
can be used as an intermediate step for complex setups (see Helicopter Setup for an
example)
Channels can be reordered by pressing the Reorder Channels button.
Page | 16
Next PagePrev PageReturn to main screen

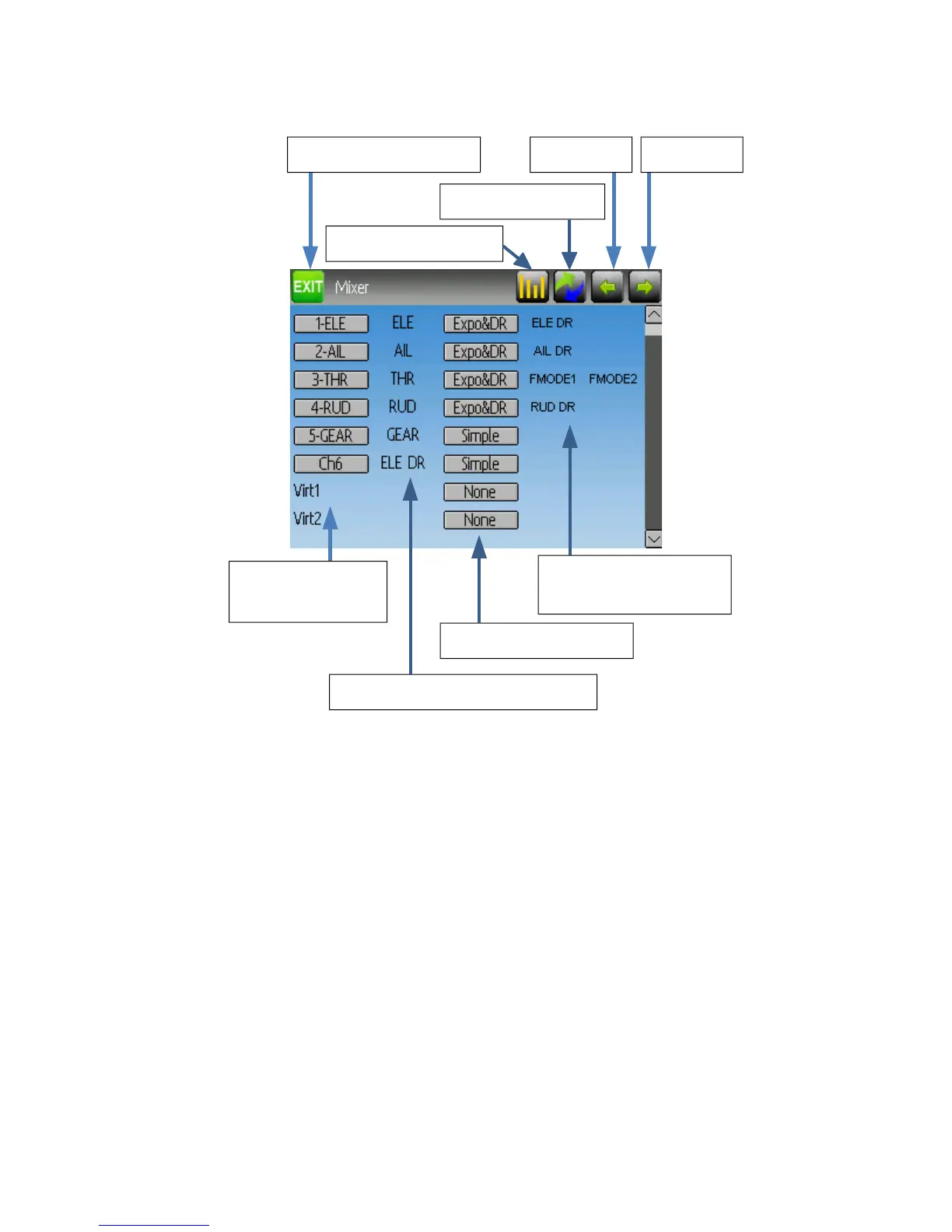

Switches that effect
the channel
Mixer template in use
Primary input effecting channel
Channel Output
(and label on Rx)
Show Chantest page
Reorder channels
