The Skyartec protocol supports up to 7 channels, does not support auto-binding. If
FixedID is set to None, a transmitter-specific ID is used instead. It is necessary to
manually bind each model before the first use.
Protocol: PPM
The PPM protocol is used to output PPM on the trainer port. It will disable all radio
transmission. The PPM protocol is useful for connecting to simulators, or other radio-
modules that plug into the trainer port. The FixedID has no effect, and there is no
binding associated with this protocol.
Deviation does not auto-detect when a trainer cord is plugged into the transmitter. To use
Deviation with a simulator (such as Phoenix), create a new model, name it appropriately,
and select PPM as the protocol. Use the Re-Init button or power-cycle to enable PPM
mode.
The Flysky protocol also supports additional options. These are accessed by pressing the
Protocol spin-box when Flysky is shown:
• Center PW: defines the pulse-width when sticks are centered
• Delta PW: defines the change in pulse-width when channel value is +/-100%
• Notch PW: defines the delay between channels
• Frame Size: defines the total time for all channels to be transferred

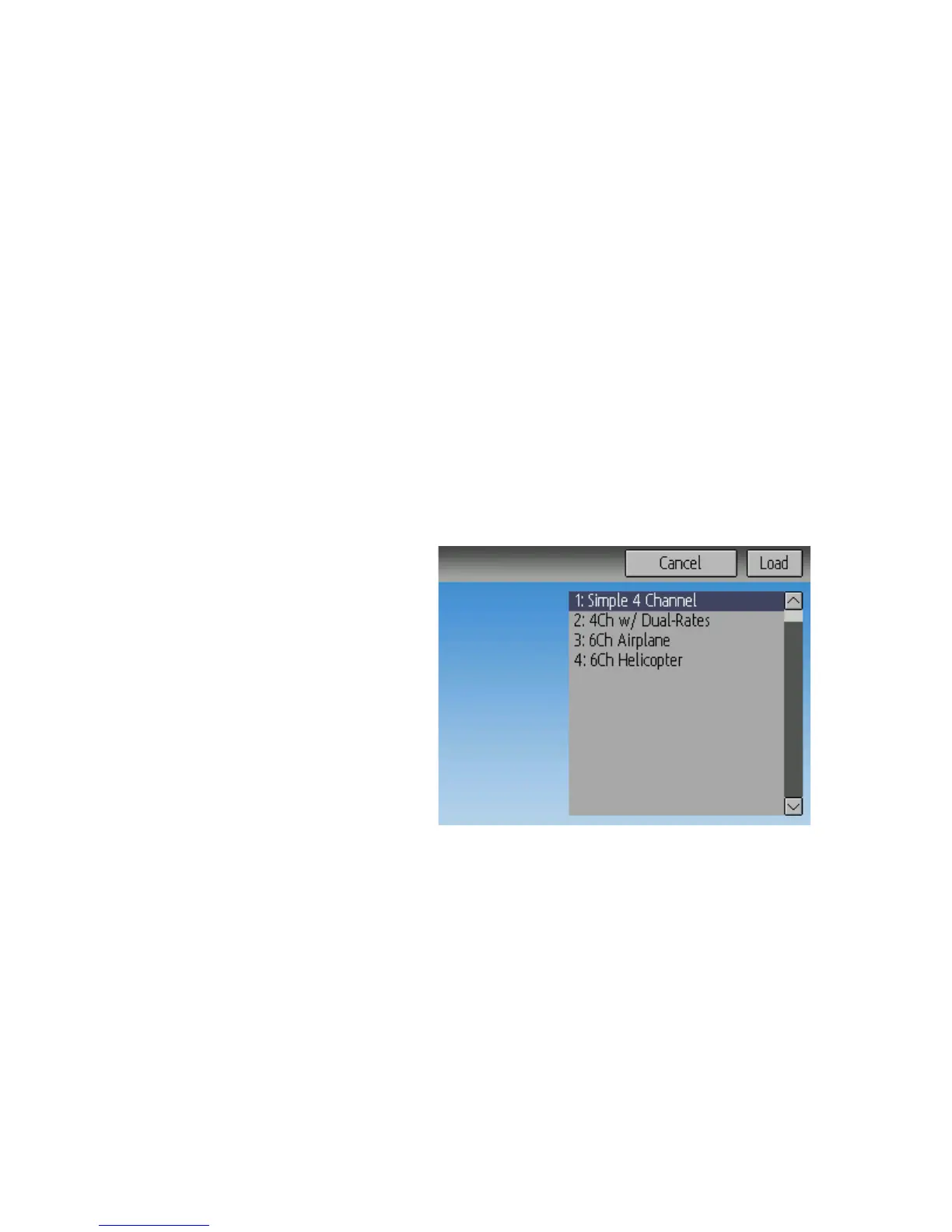

Predefined Templates
The Deviation firmware supports
user-customizable predefined
templates. By Selecting ‘Template...’
from the Model page, it is possible to
select one of these options
Additional templates can be added via
USB to the ‘\template’ directory.
A template does not completely
replace your existing model, but
instead only a portion of it. The
currently supported templates will
replace the mixer and trim definitions, but will not affect the display layout. In the future
Deviation will support templates that only affect the display layout without affecting the
mixers as well.
Page | 27
