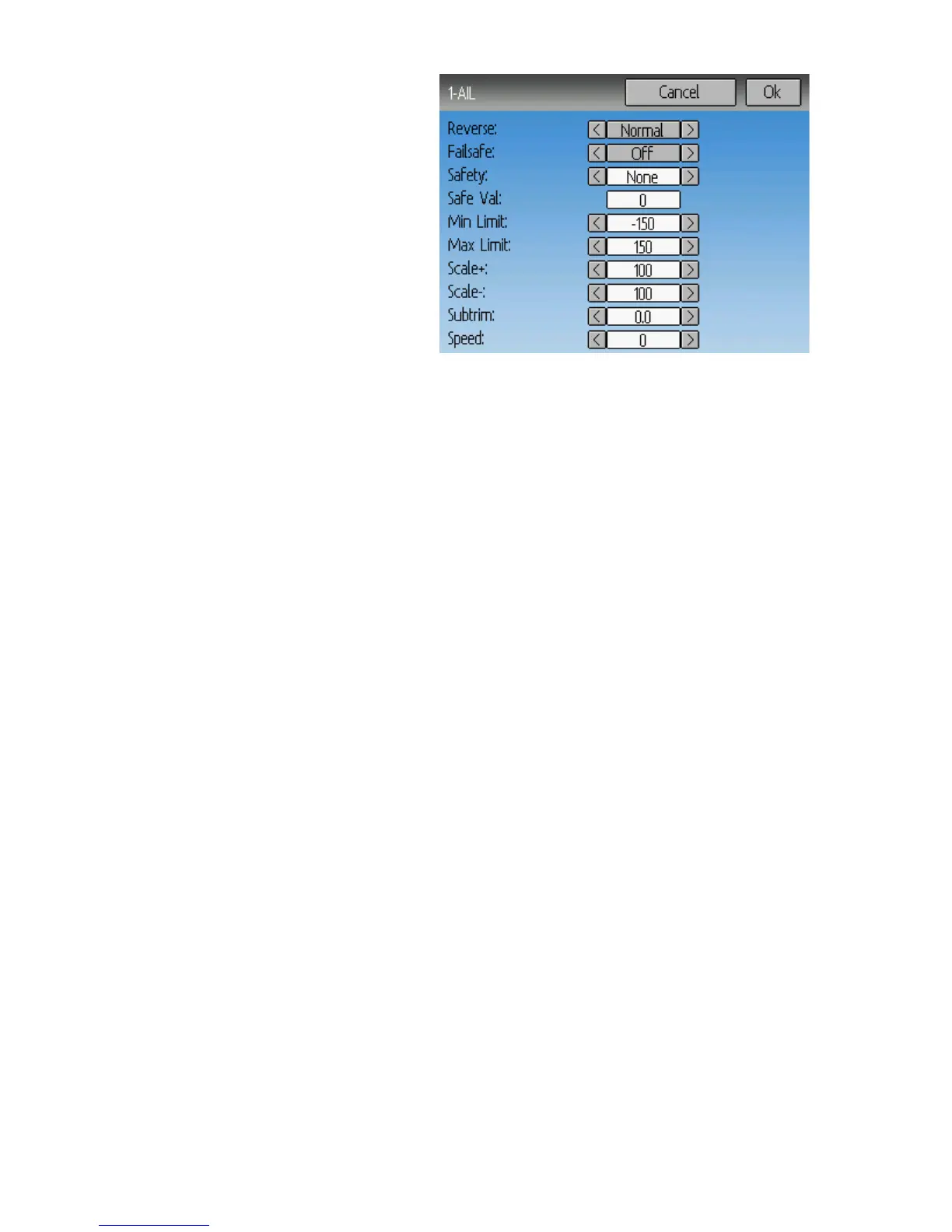

Channel configuration
The Channel configuration provides
the ability to configure the final
channel outputs. Capabilities such as
channel reverse and fail-safe values
are applied here. Also available are
controls for end-points, scaling, sub-
trim, and a safety switch (which could
be used to ensure that a motor cannot
spin-up while working on a model)
Reverse: Reverse the direction of
servo rotation
Failsafe: Specifies a value that the Rx should use when it loses signal from the
transmitter. Not all receivers support this capability.
Safety: Specifies a switch that will override all mixers and force the channel output to
‘Safe Val’ when flipped.
Min Limit/Max Limit: These values define the minimum and maximum values that the
transmitter will ever send to the receiver (after all scaling and trims are applied). If a
calculated value is outside the min/max range, it will be clipped to either the min or max
value as appropriate.
Scale+/Scale-: These values define a final scalar to adjust the servo throw.
Sub-trim: Adjust servo zero position
Speed: Adjust maximum servo speed. Zero is disabled (fastest), 1 is slowest, 100 is
fastest rate.
Page | 21
