Aileron Elevator Rudder

Channel CYC-AIL CYC-ELE Ch3

Template Expo&DR

Src AIL ELE RUD

Switch1 AIL DR ELE DR RUD DR

Switch2 None

Mid-Rate Linked

Curve Expo – 45%

Scale(Src) 100%

Scale(Switch1) 60%

This configuration enables low-rates with the dual-rate switches separately for Elevator

and Aileron channels, with some Expo. The low rates have the same curve as the high-

rates, but with 60% throw.

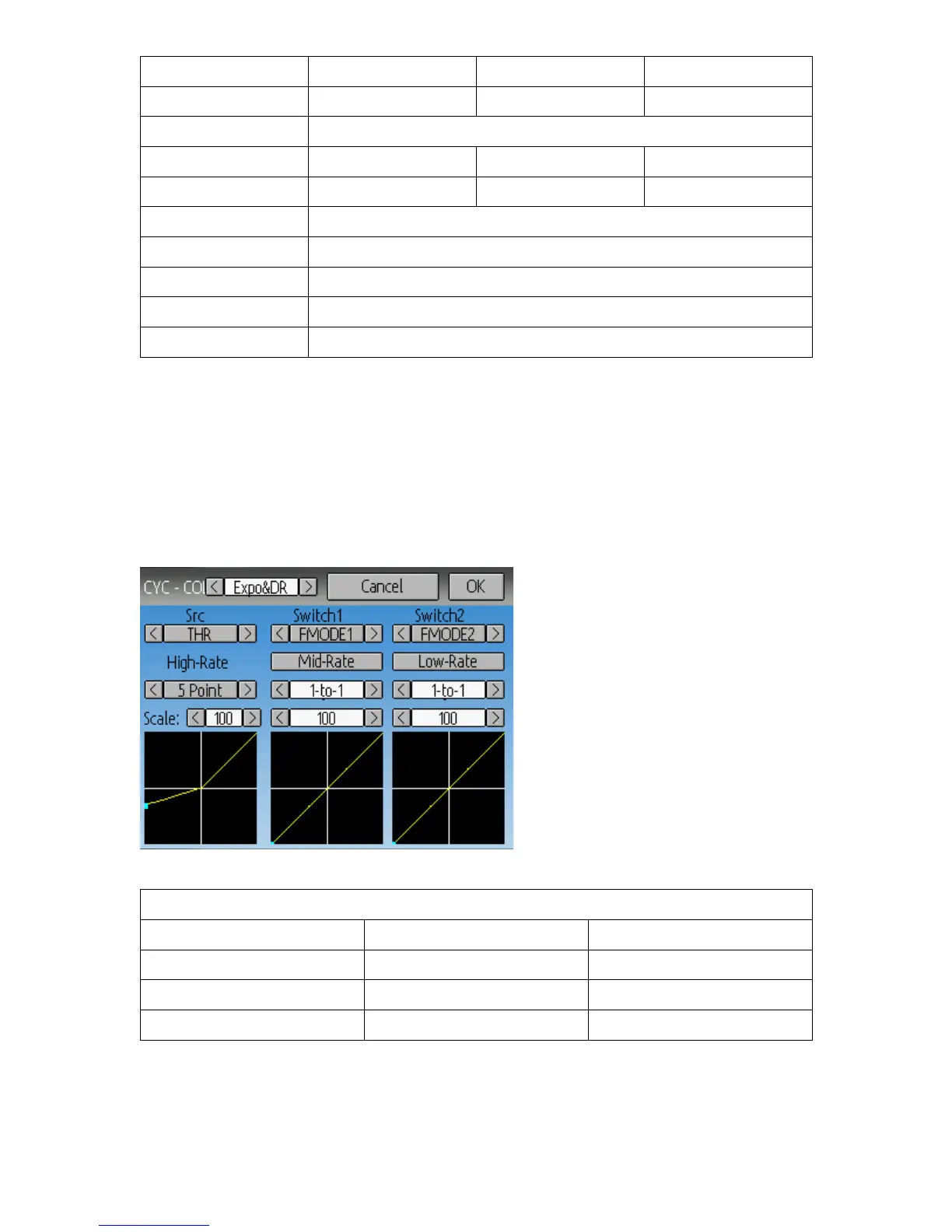

Step 5: Pitch Mixing

The pitch is setup to enable 3D with FMODE1 and FMODE2. In this example, there is

no difference between using FMODE1 and FMODE2.

The Pitch is setup as follows:

Template = Expo&DR

Src Switch1 Switch2

THR FMODE1 FMODE2

5pt: -30, -15, 0, 50, 100 1-to-1 1-to-1

Scale=100% Scale=100% Scale=100%
