GENERAL INFORMATION - DV6HH
A. Important Safeguards
When servicing electrical products, basic safety precautions should
always be followed.
READ ALL INSTRUCTIONS BEFORE SERVICING
THIS DEVICE
WARNING
A warning indicates the possibility of injury to the user or the
operator.
• Electric Shock Hazard – Do not use while bathing.
• Electric Shock Hazard – Do not immerse this device into
water or any other liquid.
• Electric Shock Hazard – Do not attempt to open or remove the
enclosure. There are no user-serviceable internal components.
If service is required, return the product to your home care
provider. Opening or tampering with the product will void the
warranty.
• Refer to International Standard IEC 60601-1 Ed 3.0
Amendment 1 for safety requirements applicable to Medical
Electrical Systems.
• The height of the DV6 series device must be lower than the
mask when using a humidier to prevent water from getting
into the mask.
• The humidier water chamber is intended for single-patient
use only.
• Empty and dry humidier water chamber before transporting.
• Do not attempt to ll the water chamber while it is attached
to the humidier base (cradle). Damage to the humidier
cradle may occur. Always remove the water chamber from
the humidier cradle before lling.
• Never touch the heater plate on the humidier base (cradle).
Never touch the heat transfer plate on the bottom of the
water chamber. These plates can reach temperatures as high
as 158˚F (70˚C) during operation.
• Do not operate the heater if the water chamber is empty. The
heater plate may be turned off using CPAP Settings when
device is being used without water.
B. TRAVEL
The DV6X Heated Humidier operates with DC power provided by the
DV6x CPAP. The CPAP device needs a power cord appropriate for the
region/country.
C. DC POWER
The DV6X Heated Humidier is powered by the DV6x CPAP and
operates with DC power of 11-17 VDC, 2 Amps DC typical (3.2 Amps
DC peak at 12.5 VDC).

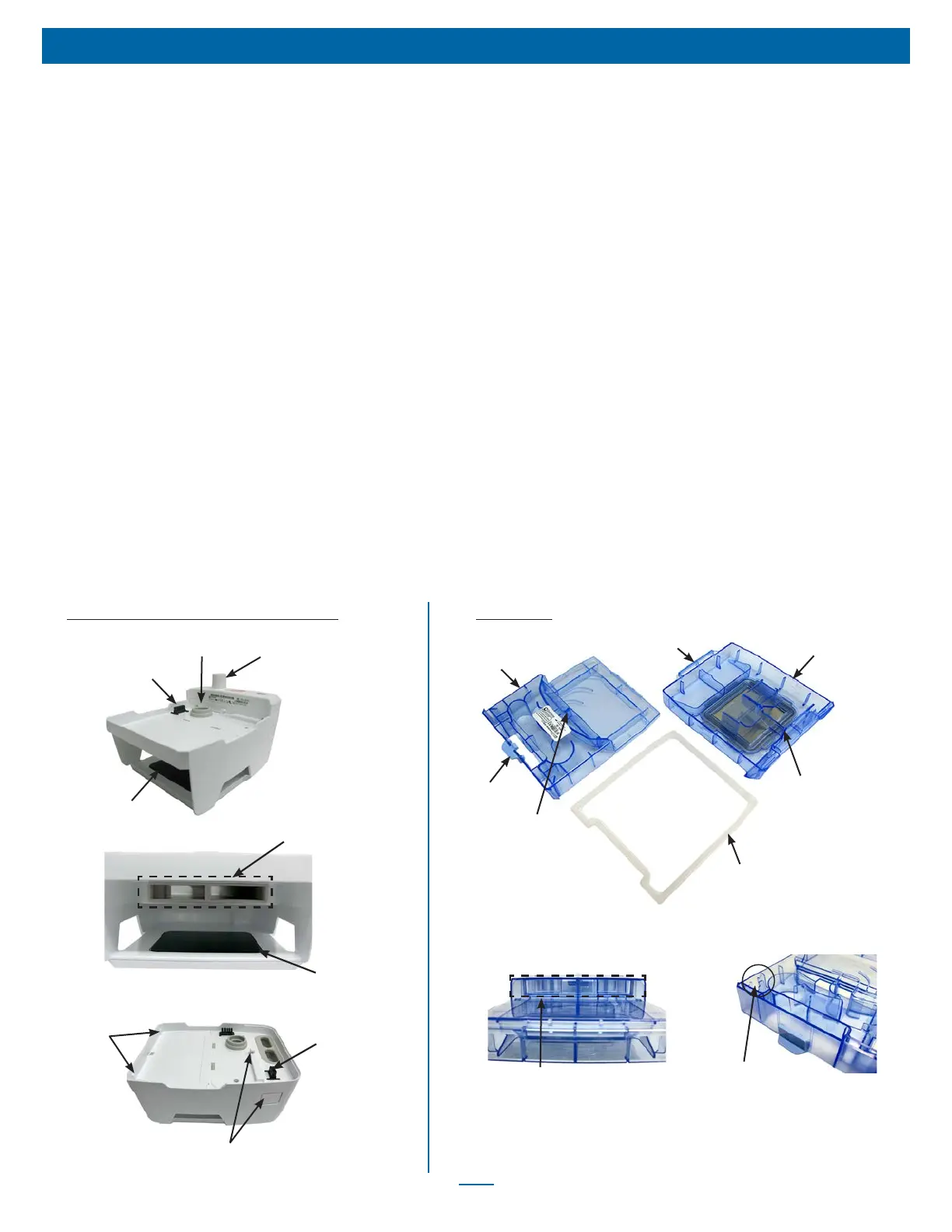

D. IMPORTANT PARTS
Heater plate
Heater power
connector
CPAP device
locking tabs
Air supply port outlet
Air supply port inlet
CPAP device latch
and release button
Heater plate
Heater manifold
Chamber
Connection to
heater manifold
Ribs holding gasket
in place
Humidifier Base (Cradle)/Heater
Release
latch
Connection to
heater manifold
Chamber top
Chamber bottom
Chamber hinge
Locking
mechanism
Gasket
PulseDose module
power connector
